Hwacheon Vertical Machining Centers (VMC)

Hwacheon HiREX-4000

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

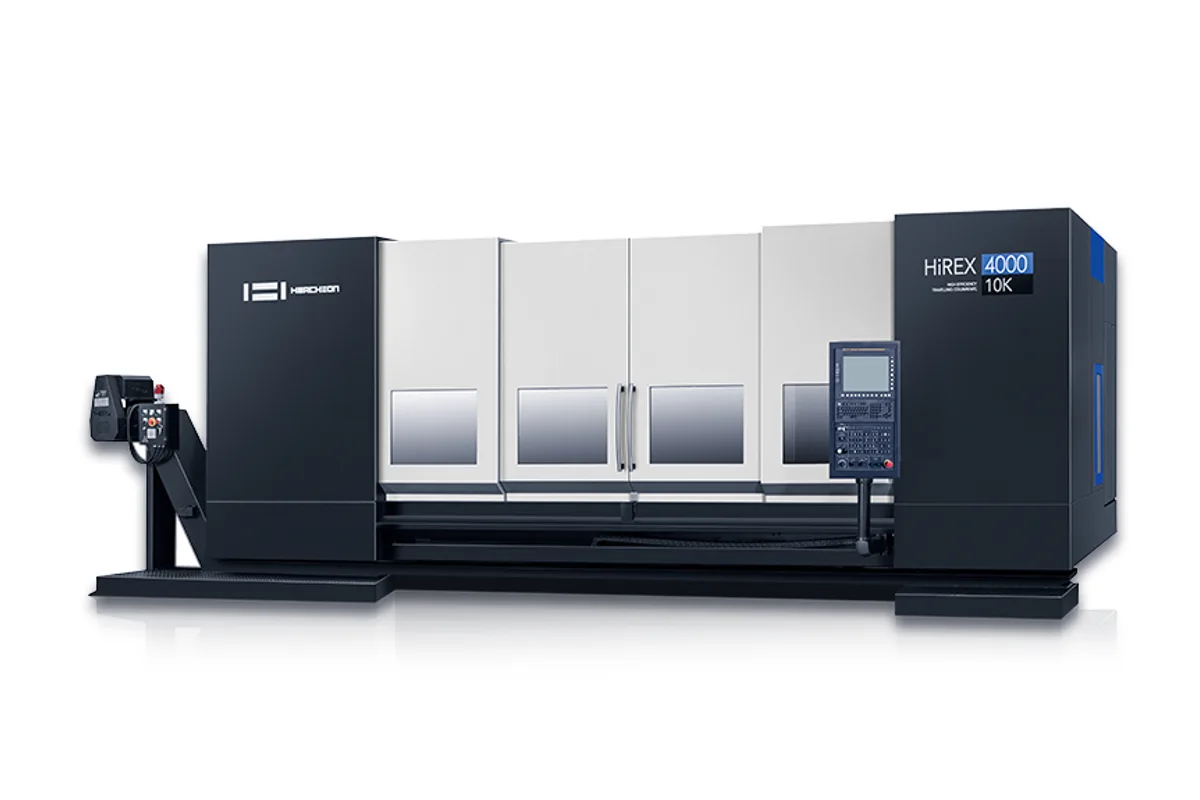

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

10,000 / 12,000 rpm (through-spindle coolant opt.)

Spindle Taper

BT-40

Tool Capacity

24 (opt.: 30)

Table Size

Y520: 550 x 4,500 mm (21.7 x 177.2 in); Y620: 650 x 4,500 mm (25.6 x 177.2 in)

Spindle Power

10K: 15 / 11 kW (20.1 / 14.8 hp) (opt.: 18.5 / 15 kW (24.8 / 20.1 hp)); 12K: 18.5 / 15 kW (24.8 / 20.1 hp)

x axis travel

4,000 mm (157.5 in)

How much does the Hwacheon HiREX-4000 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon HiREX-4000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon HiREX-4000 is a long-bed vertical machining center with 4,000 mm (157.5 in) of X travel over a 4,500 mm (177.2 in) table, built in two widths. The Y520 version has 520 mm (20.5 in) of Y and a 550 x 4,500 mm (21.7 x 177.2 in) table; the Y620 has 620 mm (24.4 in) of Y and a 650 x 4,500 mm (25.6 x 177.2 in) table. Z travel is 570 mm (22.4 in) on both, with the spindle nose 150 ~ 720 mm (5.9 ~ 28.3 in) above the table.

The width choice changes more than Y. The Y620 table carries 4,650 kg (10,251 lb) against 4,300 kg (9,480 lb) for the Y520, has six T-slots instead of five, and places the spindle centre 760 mm (29.9 in) from the column instead of 660 mm (26.0 in). It is also slower: rapids are 30 / 30 / 30 m/min (1,181 / 1,181 / 1,181 ipm), where the Y520 runs 30 / 36 / 36 m/min (1,181 / 1,417 / 1,417 ipm). The Y620 needs an 800 L (211 US gal) coolant tank rather than 710 L (188 US gal), floor space of 7,700 x 3,175 mm (303.1 x 125.0 in) rather than 7,700 x 3,010 mm (303.1 x 118.5 in), and weighs 20,500 kg (45,194 lb) rather than 20,000 kg (44,092 lb).

Both widths share a direct-drive BT-40 spindle on Ø70 mm (Ø2.8 in) grease-lubricated bearings. The 10K spindle gives 15 / 11 kW (20.1 / 14.8 hp), or 18.5 / 15 kW (24.8 / 20.1 hp) as an option, with a fan-cooled jacket. The 12K spindle gives 18.5 / 15 kW (24.8 / 20.1 hp) with an oil-cooled jacket. Through-spindle coolant is optional and raises the machine height from 3,000 mm (118.1 in) to 3,250 mm (128.0 in). The magazine holds 24 tools, or 30 as an option, chosen by memory random, at up to Ø80 mm (Ø3.1 in) with adjacent tools or Ø150 mm (Ø5.9 in) without, 300 mm (11.8 in) long and 8 kg (18 lb).

For longer parts the Hwacheon HiREX-5000 extends X to 5,000 mm (196.9 in) on a 550 x 5,500 mm (21.7 x 216.5 in) table rated at 5,800 kg (12,787 lb). The HiREX-4000 needs 45 kVA and 0.5 ~ 0.7 MPa x 690 NL/min of air, and runs Fanuc 0i-MF Plus.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in)
Y Axis Travel	Y520: 520 mm (20.5 in); Y620: 620 mm (24.4 in)
Z Axis Travel	570 mm (22.4 in)
Distance Spindle Nose to Table	150 ~ 720 mm (5.9 ~ 28.3 in)
Distance Column to Spindle Center	Y520: 660 mm (26.0 in); Y620: 760 mm (29.9 in)
Table Size	Y520: 550 x 4,500 mm (21.7 x 177.2 in); Y620: 650 x 4,500 mm (25.6 x 177.2 in)
Max Table Load	Y520: 4,300 kg (9,480 lb); Y620: 4,650 kg (10,251 lb)
T-Slots	Y520: 18 x 110 mm (0.71 x 4.33 in), 5 slots (width x pitch, count); Y620: 18 x 110 mm (0.71 x 4.33 in), 6 slots (width x pitch, count)
Max Spindle Speed	10,000 / 12,000 rpm (through-spindle coolant opt.)
Spindle Motor Power	10K: 15 / 11 kW (20.1 / 14.8 hp) (opt.: 18.5 / 15 kW (24.8 / 20.1 hp)); 12K: 18.5 / 15 kW (24.8 / 20.1 hp)
Spindle Taper	BT-40
Spindle Bearing Bore	Ø70 mm (Ø2.8 in)
Spindle Drive	Direct drive
Spindle Bearing Lubrication	Grease
Spindle Cooling	10K: Jacket cooling (fan cooler); 12K: Jacket cooling (oil cooler)
Rapid Traverse Xyz	Y520: 30 / 36 / 36 m/min (1,181 / 1,417 / 1,417 ipm); Y620: 30 / 30 / 30 m/min (1,181 / 1,181 / 1,181 ipm)
Tool Shank	BT-40 (opt.: BBT-40, CAT-40, SK-40)
Pull Stud	MAS P40T-1 (45˚)
Tool Capacity	24 (opt.: 30)
Max Tool Diameter (full magazine)	Ø80 / Ø150 mm (Ø3.1 / Ø5.9 in) (with / without adjacent tools)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	8 kg (18 lb)
Tool Selection	Memory Random
Power Requirement	45 kVA
Air Supply	0.5 ~ 0.7 MPa x 690 NL/min
Coolant Tank Capacity	Y520: 710 L (188 US gal); Y620: 800 L (211 US gal)
Machine Height	3,000 mm (118.1 in) [through-spindle coolant: 3,250 mm (128.0 in)]
Floor Space	Y520: 7,700 x 3,010 mm (303.1 x 118.5 in); Y620: 7,700 x 3,175 mm (303.1 x 125.0 in)
Machine Weight	Y520: 20,000 kg (44,092 lb); Y620: 20,500 kg (45,194 lb)
CNC Control	Fanuc 0i-MF Plus

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

4,000 mm (157.5 in) of X over a 4,500 mm (177.2 in) table, in 520 mm (20.5 in) or 620 mm (24.4 in) Y widths
Table load of up to 4,650 kg (10,251 lb) on the Y620 version
Y520 version rapids of 30 / 36 / 36 m/min (1,181 / 1,417 / 1,417 ipm)
Direct-drive BT-40 spindle to 10,000 or 12,000 rpm, with up to 18.5 / 15 kW (24.8 / 20.1 hp)
570 mm (22.4 in) of Z with 150 ~ 720 mm (5.9 ~ 28.3 in) from spindle nose to table

Limitations

Standard magazine holds 24 tools; 30 is an option, which is few for long multi-operation parts
With adjacent pockets loaded, tool diameter is limited to Ø80 mm (Ø3.1 in)
The wider Y620 version gives up rapid speed, running 30 m/min (1,181 ipm) on Y and Z
Through-spindle coolant is an option and raises the machine height to 3,250 mm (128.0 in)
Needs 7,700 mm (303.1 in) of floor length for a 20,000 kg (44,092 lb) or heavier machine

Best For

Long parts such as rails, beams and extrusions up to 4,000 mm (157.5 in) Several fixtures in a row along a 4,500 mm (177.2 in) table Wider long parts on the 650 mm (25.6 in) Y620 table Heavy workpieces up to 4,650 kg (10,251 lb) on the Y620

Frequently Asked Questions

01 Should I choose the HiREX-4000 Y520 or Y620?

The Y620 gives 620 mm (24.4 in) of Y, a 650 x 4,500 mm (25.6 x 177.2 in) table, six T-slots and 4,650 kg (10,251 lb) of table load. The Y520 gives 520 mm (20.5 in) of Y, a 550 x 4,500 mm (21.7 x 177.2 in) table and 4,300 kg (9,480 lb), but faster rapids of 30 / 36 / 36 m/min (1,181 / 1,417 / 1,417 ipm) and a narrower 3,010 mm (118.5 in) floor width.

02 What spindle options does the HiREX-4000 have?

A direct-drive BT-40 spindle at 10,000 rpm or 12,000 rpm. The 10K version gives 15 / 11 kW (20.1 / 14.8 hp), with 18.5 / 15 kW (24.8 / 20.1 hp) as an option, and is cooled by a fan cooler. The 12K version gives 18.5 / 15 kW (24.8 / 20.1 hp) and uses an oil cooler. Tool shanks are BT-40, with BBT-40, CAT-40 and SK-40 as options.

03 How does the HiREX-4000 compare with the HiREX-5000?

The Hwacheon HiREX-5000 has 5,000 mm (196.9 in) of X, a 550 x 5,500 mm (21.7 x 216.5 in) table and 5,800 kg (12,787 lb) of table load, and weighs 23,000 kg (50,706 lb). The HiREX-4000 offers 4,000 mm (157.5 in) of X on a 4,500 mm (177.2 in) table, but adds the wider Y620 version. Spindles, magazine and control are shared.

04 What does the HiREX-4000 need on site?

A 45 kVA supply and 0.5 ~ 0.7 MPa x 690 NL/min of air. Floor space is 7,700 x 3,010 mm (303.1 x 118.5 in) for the Y520 or 7,700 x 3,175 mm (303.1 x 125.0 in) for the Y620, and height is 3,000 mm (118.1 in), or 3,250 mm (128.0 in) with through-spindle coolant.
