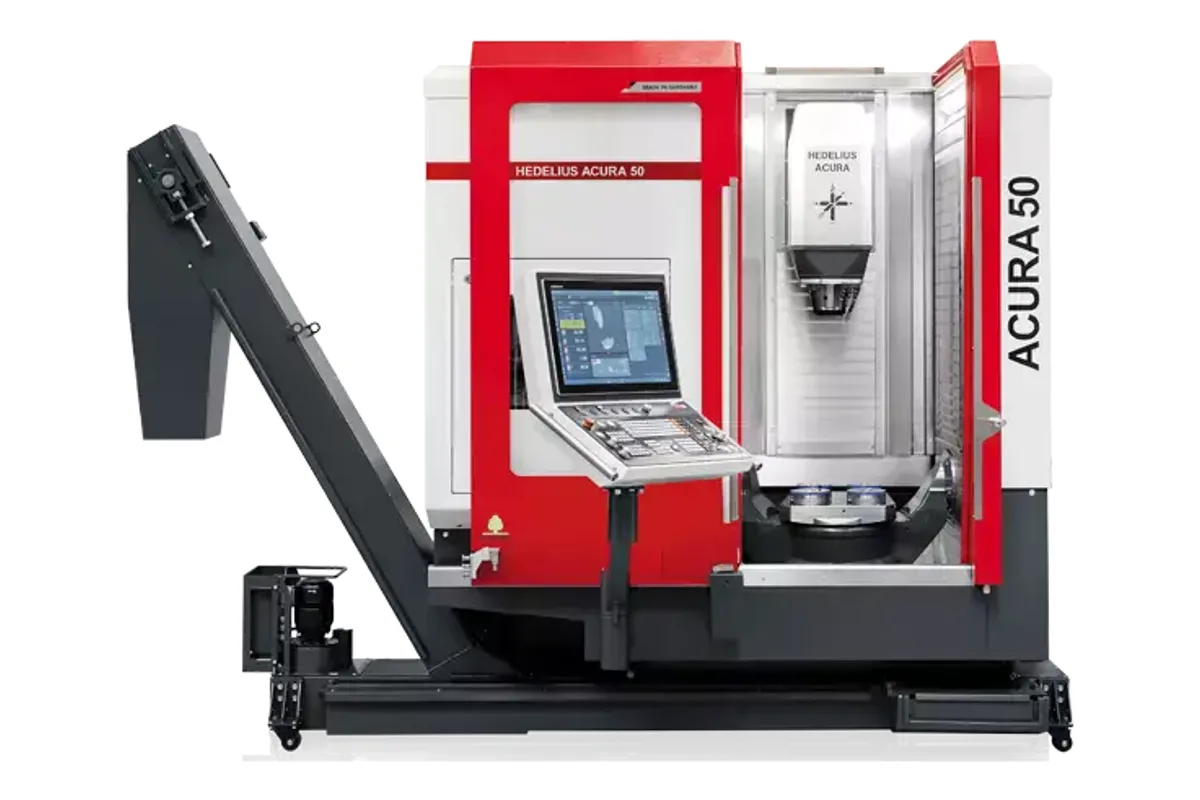

Hedelius ACURA 50 MARATHON
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius ACURA 50 MARATHON cost?
Price estimate
We do not have a price for the Hedelius ACURA 50 MARATHON that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius ACURA 50 MARATHON is the factory-automated version of the smallest ACURA: a 5-axis machining centre whose swivelling table carries a permanently installed zero point clamping system in place of T-slots, with a side loading opening and an interface to Hedelius's own MARATHON pallet magazines. The pallet face is 400 x 400 mm.
That table is where this variant departs from the others. There are no T-slots in the data sheet row. Y travel is listed as 550 / 322 mm (horizontal / vertical) and the spindle distance as 72 / 50 mm, both of which reflect the clamping system sitting on the table. X is 500 mm and Z is 550 mm, the clamping weight is 300 kg (661 lb) and the interference circle is Ø 550 mm.
Hedelius fits zero point clamping elements at the factory and keeps what it calls a consistent Heidenhain operating concept across machine and automation. The side opening is approx. 840 mm high. In the data sheet's automation row the ACURA 50 series has an interface for the MARATHON PL406 and RZ430 systems, and none for the SR422 or SR518.
Spindle choice is the same four units as the rest of the ACURA 50 line in the data sheet: SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW or with 183 Nm and 29 kW, and HSK A63 at 18,000 rpm with 35 kW or at 14,000 rpm with 22 kW. Hedelius points to tool magazines with up to 319 tool positions for varied part families. The table swivels from +30° to -115° and rotates at 0 – 50 min-1. Standard weight is 5,500 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 550 / 322 mm (21.7 / 12.7 in) (H/V: horizontal / vertical) |
| Z Axis Travel | 550 mm (21.7 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 375 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 500 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 425 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 375 cm3/min, drilling Ø 35 mm (Ø 1.4 in), thread cutting M 24 |
| Spindle Distance | 72 / 50 mm (2.8 / 2.0 in) (H/V: horizontal / vertical) |
| Table Size | 400 x 400 mm (15.7 x 15.7 in) |
| Interference Circle Diameter | Ø 550 mm (Ø 21.7 in) |
| Table Swivel Range | +30° – -115° |
| Table Swivel Time 90 Deg | 1.2 s |
| Table Swivel Accuracy | < ±10" |
| Table Rotational Speed | 0 – 50 min-1 |
| Indexing Accuracy | < ±6" |
| Axial Runout Accuracy | 0.015 mm (0.0006 in) |
| Table Swivel Torque | 1,450 Nm (1,070 lb-ft) |
| Table Swivel Clamping Force | 2,200 Nm (1,623 lb-ft) |
| Table Dividing Torque | 720 Nm (531 lb-ft) |
| Table Dividing Clamping Force | 1,500 Nm (1,106 lb-ft) |
| Max Table Load | 300 kg (661 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 9,000 N (2,023 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 55 / 80 / 125 / 170 / 235 / 319 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 9 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm (ISO 230-2, X, Y, Z) |
| Machine Weight | 5,500 kg (12,125 lb) |
| Transport Height | 2,400 / 2,520 mm (94.5 / 99.2 in) |
| Transport Width | 2,350 / 2,670 mm (92.5 / 105.1 in) |
| Marathon Automation Interface | MARATHON SR422: no; MARATHON SR518: no; MARATHON PL406: yes; MARATHON RZ430: yes |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Zero point clamping system installed in the table at the factory, ready for 400 x 400 mm pallets
- Interface to Hedelius's own MARATHON pallet magazines, with one operating concept for machine and automation
- Side loading opening approx. 840 mm high, pneumatically activated
- Tool magazines with up to 319 tool positions for a varied part spectrum
- Same spindle range as the manual ACURA 50, up to 18,000 rpm and 35 kW
Limitations
- No T-slot table: the data sheet shows a 400 x 400 mm pallet face and no T-slots, so direct clamping on the table is not the intended use
- Vertical Y is 322 mm against 550 mm horizontal, less than a table without the clamping system would leave
- Clamping weight of 300 kg (661 lb) includes the pallet and fixture
- The data sheet shows no interface for the MARATHON SR422 or SR518
Best For
Frequently Asked Questions
01
Both have a side loading opening. The MARATHON is prepared for Hedelius's own MARATHON pallet magazines and has zero point clamping elements installed in the table at the factory, with a 400 x 400 mm pallet face. The EL has an open interface for other makers' pallet systems or robots.
02
The automation row in the ACURA 50 data sheet answers yes for the MARATHON PL406 and the MARATHON RZ430, and no for the SR422 and SR518. The pallet face of this machine's table is 400 x 400 mm, so confirm pallet format and count with Hedelius for the system chosen.
03
X is 500 mm (19.7 in) and Z is 550 mm (21.7 in). Y is listed as 550 / 322 mm for horizontal and vertical, and the spindle distance as 72 / 50 mm. The clamping weight is 300 kg and the interference circle Ø 550 mm.
04
The data sheet lists 14,000 rpm spindles in SK40 / BT40 with 22 kW or 29 kW, and HSK A63 spindles at 18,000 rpm with 35 kW or 14,000 rpm with 22 kW. Hedelius's product text speaks of main spindles up to 18,000 rpm for this variant.
