Hedelius ACURA 85 EL
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius ACURA 85 EL cost?
Price estimate
We do not have a price for the Hedelius ACURA 85 EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

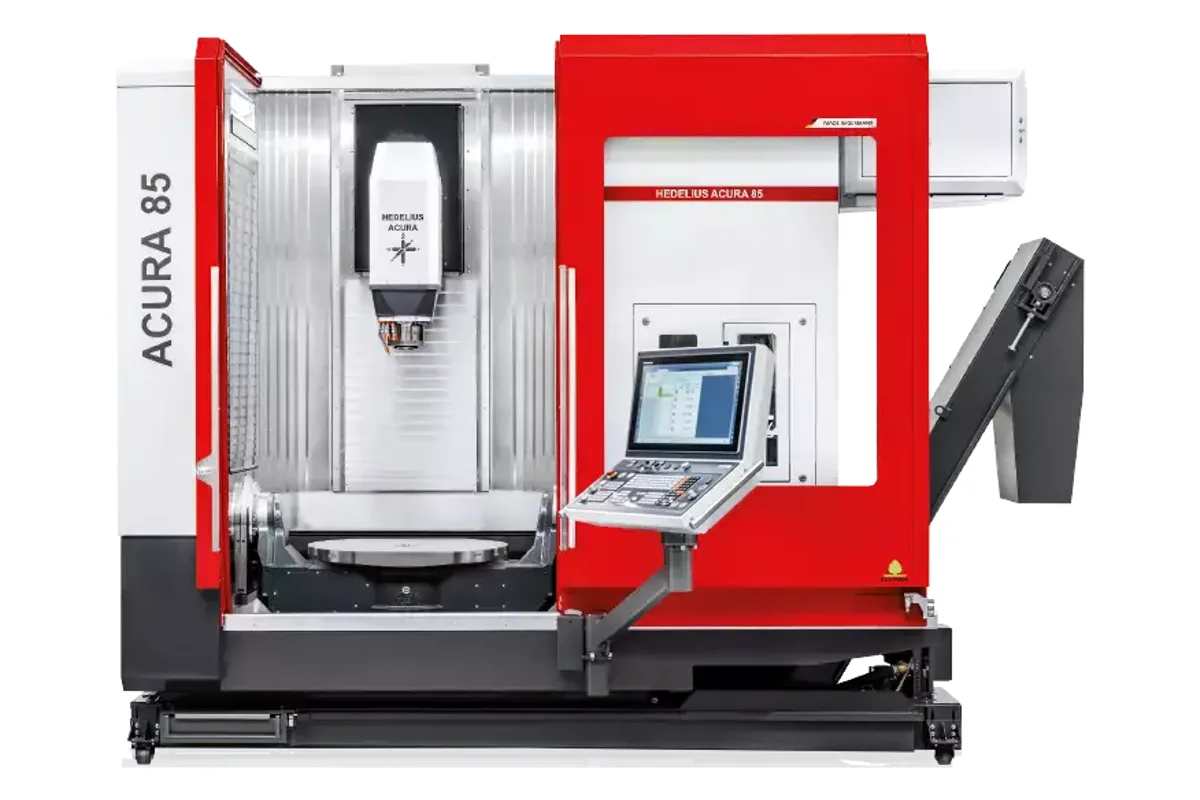

Crane loading without restrictions is the unusual promise of the Hedelius ACURA 85 EL. This is the large ACURA 5-axis centre, with a 1,000 kg (2,205 lb) swivel table, fitted with a side loading door for automation. Because the pallets or parts come in from the left through an opening approx. 1100 mm high, the front and top of the work area stay as they are on the manual machine, and a heavy single part can still be set down by crane during the day shift.
Hedelius describes the EL concept in those terms: side loading leaves full access for set-up and control work and for single part production. Depending on the automation chosen, the work area also stays visible while setting up at the automation. The interface is open to pallet handling systems or robots from other suppliers, and the ACURA 85 data sheet lists an interface for the MARATHON SR518 and PL406 too.
Travels are 900 mm in X, 850 / 600 mm in Y (horizontal / vertical) and 700 mm in Z. The Ø 850 x 750 mm table keeps its seven 18 mm T-slots and adds a 4-fold rotary transfer for pneumatics to activate zero point clamping elements or power clamps. The interference circle is Ø 900 mm. Swivel torque is 3,400 Nm and rotation runs at 0 – 20 min-1.
With pallets of this size, feed force and tool reach decide what can be cut unattended: 23,000 N, and tools up to 330 / 390 mm long. The magazine starts at 80 tools, with theoretical capacities up to 344. Data sheet spindles run from 22 kW to 37 kW in SK40 / BT40 and to 35 kW at 18,000 rpm in HSK A63. Weight is 11,000 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 900 mm (35.4 in) |
| Y Axis Travel | 850 / 600 mm (33.5 / 23.6 in) (H/V: horizontal / vertical) |
| Z Axis Travel | 700 mm (27.6 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Distance | 135 / 120 (75 / 60) mm (5.3 / 4.7 (3.0 / 2.4) in) (H/V: horizontal / vertical) |
| Table Size | Ø 850 x 750 mm (Ø 33.5 x 29.5 in) |
| Interference Circle Diameter | Ø 900 mm (Ø 35.4 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Table Swivel Range | +30° – -115° |
| Table Swivel Time 90 Deg | 1.2 s |
| Table Swivel Accuracy | < ±10" |
| Table Rotational Speed | 0 – 20 min-1 |
| Indexing Accuracy | < ±6" |
| Axial Runout Accuracy | 0.015 mm (0.0006 in) |
| Table Swivel Torque | 3,400 Nm (2,508 lb-ft) |
| Table Swivel Clamping Force | 5,000 Nm (3,688 lb-ft) |
| Table Dividing Torque | 1,500 Nm (1,106 lb-ft) |
| Table Dividing Clamping Force | 3,000 Nm (2,213 lb-ft) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 23,000 N (5,170 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 80 / 150 / 195 / 260 / 344 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 9.7 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm (ISO 230-2, X, Y, Z) |
| Machine Weight | 11,000 kg (24,250 lb) |
| Transport Height | 2,912 / 3,032 mm (114.6 / 119.4 in) |
| Transport Width | 3,480 / 3,350 mm (137.0 / 131.9 in) |
| Marathon Automation Interface | MARATHON SR422: no; MARATHON SR518: yes; MARATHON PL406: yes; MARATHON RZ430: no |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Side loading opening approx. 1100 mm high, on the left of the work area
- Crane loading from the front remains possible without restrictions
- Open interface for pallet systems or robots, plus data sheet interfaces for MARATHON SR518 and PL406
- Ø 850 x 750 mm T-slot table for 1,000 kg with a 4-fold pneumatic rotary transfer
- Feed force of up to 23,000 N for heavy cuts in unattended operation
Limitations
- Table rotation is 0 – 20 min-1 only
- Automation hardware is not included and needs space on the left of an already large machine
- The 1,000 kg limit covers pallet, clamping and part together
- Transport width of up to 3,480 mm and 11,000 kg (24,250 lb) to move into place
Best For
Frequently Asked Questions
01
Hedelius gives an opening height of approx. 1100 mm for the side loading opening. It is closed by a pneumatically activated stainless steel loading door on the left in the work area, and loading takes place from the left side of the machine.
02
Yes. Hedelius states that with the EL concept even crane loading of the machine is possible without restrictions, because loading from the side leaves full access to the work area for set-up, control work and single part production.
03
The interface is described as suitable for numerous pallet handling systems or robot systems. In the data sheet's own automation row the ACURA 85 series has an interface for the MARATHON SR518 and the MARATHON PL406, and none for the SR422 or RZ430.
04
Travels of 900 mm in X, 850 / 600 mm in Y and 700 mm in Z; a Ø 850 x 750 mm table for 1,000 kg (2,205 lb); 40 m/min feeds with up to 23,000 N of feed force; and 80 tools as standard with a chip-to-chip time of ca. 9.7 s.
