Hedelius TILTENTA 7-3600 NEO EL
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 7-3600 NEO EL cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 7-3600 NEO EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

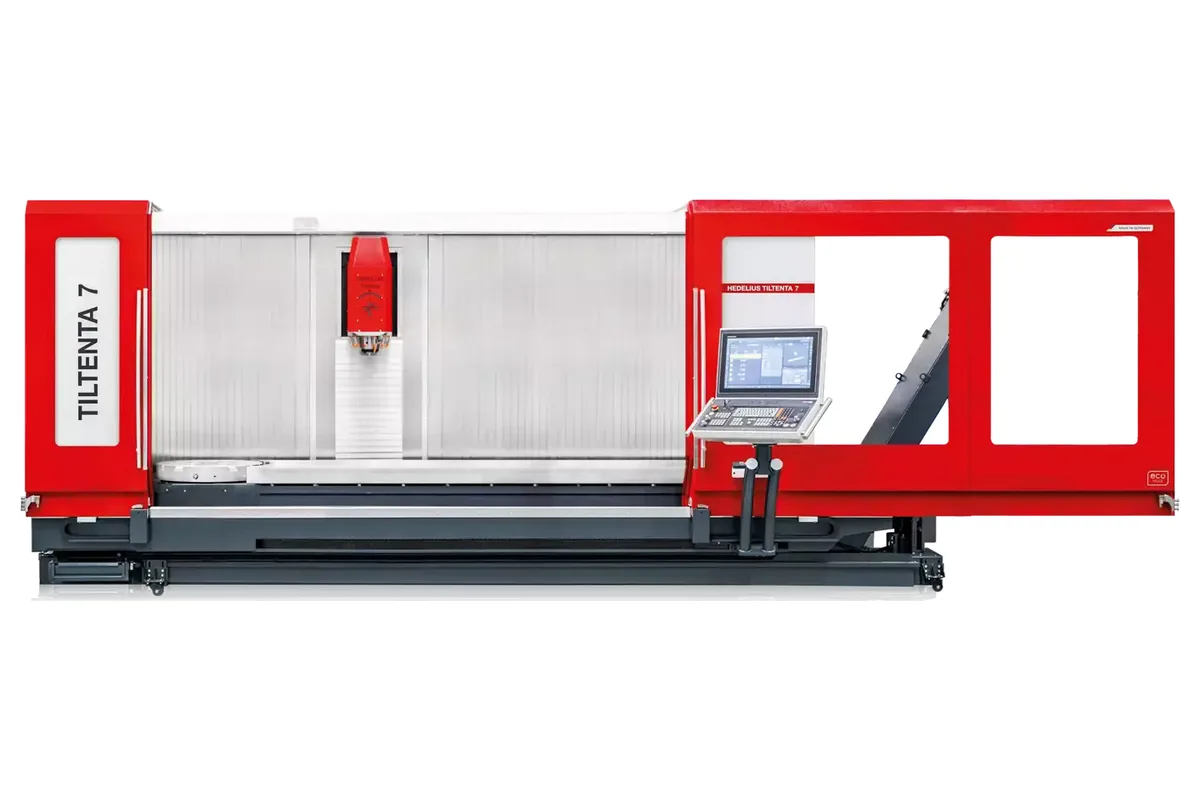

The Hedelius TILTENTA 7-3600 NEO EL pairs a side loading hatch with 3,600 mm (141.7 in) of X travel. Hedelius says the machine expands its range of applications in two ways: automation loads and unloads the left-offset NC rotary table from the left-hand side, and the long axis remains available for long parts and large-format workpieces.
Think of it as two machines in one enclosure. At the left end sits a 5-axis cell: a rotary table with a Ø 700 mm faceplate for 800 kg (1,764 lb), served by a swivelling spindle that tilts from -98° to +98°, and fed through the hatch by a pallet system or robot. To its right runs a fixed table, 3,840 x 700 mm in total clamping area and good for 3,000 kg (6,614 lb), on which the operator can machine a long beam or plate during the day.
Vertical Z travel is 735 mm on the EL and 800 mm with the spindle horizontal. X is 3,600 mm vertical and 3,030 mm horizontal; Y is 700 mm. No pendulum operation is listed for this variant. The spindle distance is 20 to 755 mm.
For the cutting itself the data sheet lists three spindles, 22 kW and 29 kW at 14,000 rpm in SK40 / BT40 and 35 kW at 18,000 rpm in HSK A63. The 45-place magazine is marked as not for EL, which leaves theoretical capacities of 115 to 309 tools, a sensible range for unmanned work. Hedelius's page speaks of unmanned night shifts and weekend running for automated production of small and medium series. At 15,700 kg (34,612 lb) this is the heaviest TILTENTA 7.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,600 / 3,030 mm (141.7 / 119.3 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 735 / 800 mm (28.9 / 31.5 in) (V/H: vertical / horizontal) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Centre of Rotation | 285 mm (11.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,000 Nm (1,475 lb-ft) |
| Spindle Swivel Torque Clamped | 2,500 Nm (1,844 lb-ft) |
| Rotary Table Faceplate | Ø 700 mm (Ø 27.6 in) |
| Interference Circle Diameter | 1,050 mm (41.3 in) |
| Rotary Table Rotational Speed | 15 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 2,200 Nm (1,623 lb-ft) |
| Rotary Table Holding Torque | 2,900 Nm (2,139 lb-ft) |
| Rotary Table Load | 800 kg (1,764 lb) |
| Spindle Distance | 20 - 755 mm (0.8 - 29.7 in) |
| Table Size | 3,840 x 700 mm (151.2 x 27.6 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 25,000 N (5,620 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 45 (not for EL) / 115 / 160 / 225 / 309 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 mm (13.0 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 10.5 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 15,700 kg (34,612 lb) |
| Transport Height | 2,650 mm (104.3 in) |
| Transport Width | 3,150 / 2,910 mm (124.0 / 114.6 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Side loading hatch and left-offset NC rotary table for automated loading from the left
- 3,600 mm of X travel stays available for long and large-format workpieces
- Fixed table with a 3,840 x 700 mm clamping area for 3,000 kg (6,614 lb)
- 5-axis station with Ø 700 mm faceplate and 800 kg workpiece weight
- Magazine capacities of 115 to 309 tools for unmanned shifts
Limitations
- The 45-place magazine is marked not for EL in the data sheet
- No pendulum operation listed, unlike the non-EL machine of this length
- Automated loading serves the rotary table at the left end only
- 15,700 kg (34,612 lb) plus the automation system on the left to accommodate
Best For
Frequently Asked Questions
01
Through a side loading hatch and an NC rotary table offset to the left. Hedelius states that this allows an automation system to load and unload the machine efficiently from the left-hand side, with an interface to manufacturer-independent automation.
02
Long parts. Hedelius notes that the generous X travel path of 3,600 mm makes the machine ideal for machining long parts and large-format workpieces. The fixed table has a clamping area of 3,840 x 700 mm and a table load of 3,000 kg.
03
X 3,600 mm with the spindle vertical and 3,030 mm horizontal, Y 700 mm, and Z 735 mm vertical or 800 mm horizontal. Feeds are 40 m/min on X, Y and Z, and the positioning accuracy is A=6 µm/1,000 mm to ISO 230-2.
04
The data sheet row reads 45 / 115 / 160 / 225 / 309 with a footnote that the 45 is not for EL. That leaves the larger magazines for this variant. Tools may be 330 mm long, 5 kg, and 75 mm in diameter with every place occupied.
More from Hedelius
Other 5-Axis Machining Centers
DMG Mori NMV 3000 DCG
Vision Wide GSF-3027
Chiron DZ 08 S Five Axis
Hartford Aero-546BL-5X
