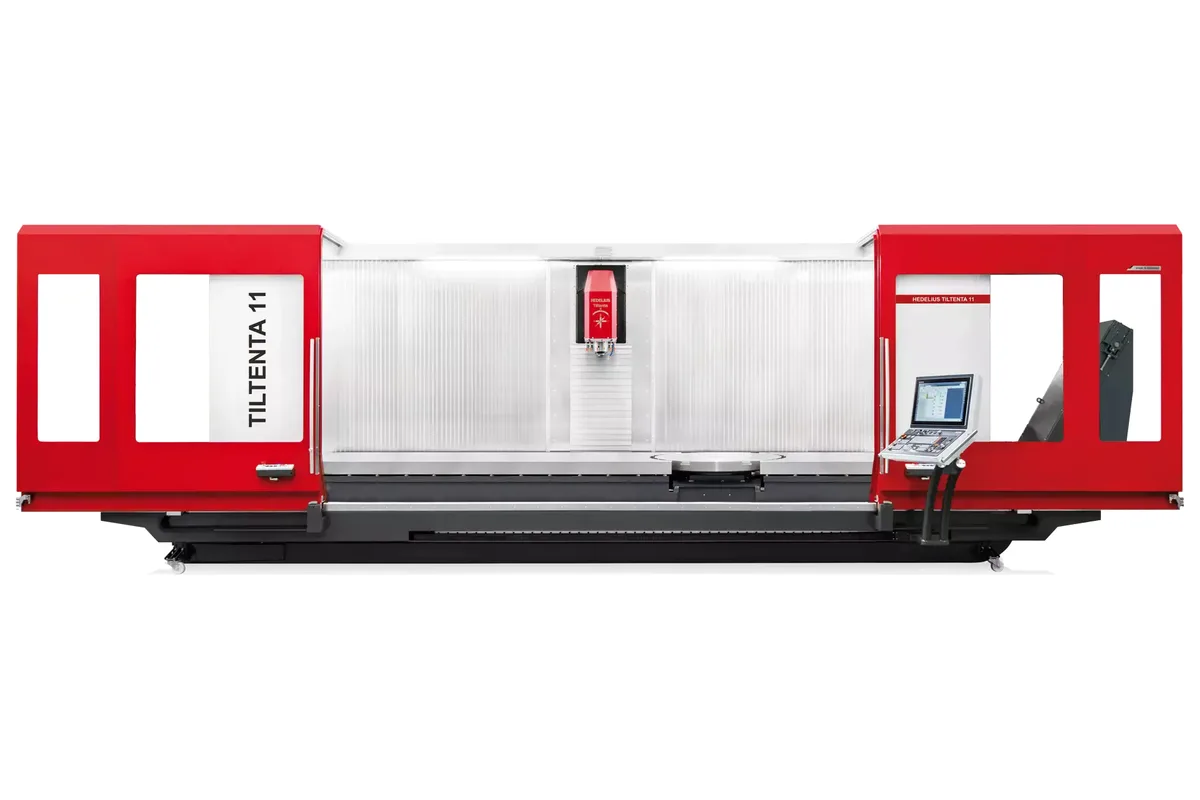

Hedelius TILTENTA 11-4600
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 11-4600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 11-4600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 11-4600 can be loaded while it cuts. A work area partition splits this 5-axis travelling column machining centre into two zones, listed in the data sheet as pendulum operation of 2,025 x 2,025 mm, and Hedelius states that the machine can then be loaded in oscillation mode during machining. Motor-activated automatic doors serve each side.
Both zones are generous. Y travel is 1,100 mm (43.3 in) across the whole table, and the vertical X travel totals 4,600 mm (181.1 in), with 4,030 mm available when the spindle is horizontal. Z is 900 / 1,005 mm. The fixed table has a clamping area of 5,080 x 1,100 mm and a table load of 6,000 kg (13,228 lb).
Two zones only pay off if tools arrive quickly at either end. The 65-cavity magazine travels with the column, and Hedelius says tool changes take only a few seconds despite the 4600 mm travel path. The data sheet puts chip-to-chip time at ca. 13 s. Standby magazines extend the theoretical capacity to 329.
For 5-axis work an NC rotary table with a Ø 1,140 mm faceplate is integrated, rated for 1,800 kg or optionally 2,200 kg, and the main spindle swivels from -98° to +98°. Spindle choices are 22 kW or 37 kW at 14,000 rpm in SK40 / BT40, and 35 kW at 18,000 rpm or 50 kW with 217 Nm at 15,000 rpm in HSK A63. Hedelius also points to vertical slat covers and good accessibility to the work area. Feed force is 27,000 N and machine weight 28,500 kg (62,831 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,600 / 4,030 mm (181.1 / 158.7 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 900 / 1,005 mm (35.4 / 39.6 in) (V/H: vertical / horizontal) |
| Pendulum Operation | 2,025 x 2,025 mm (79.7 x 79.7 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Centre of Rotation | 285 mm (11.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,000 Nm (1,475 lb-ft) |
| Spindle Swivel Torque Clamped | 2,500 Nm (1,844 lb-ft) |
| Rotary Table Faceplate | Ø 1,140 mm (Ø 44.9 in) |
| Interference Circle Diameter | 1,450 mm (57.1 in) |
| Rotary Table Rotational Speed | 8 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 4,200 Nm (3,098 lb-ft) |
| Rotary Table Holding Torque | 12,000 Nm (8,851 lb-ft) |
| Rotary Table Load | 1,800 / 2,200 kg (3,968 / 4,850 lb) (optional) |
| Spindle Distance | 20 - 920 mm (0.8 - 36.2 in) |
| Table Size | 5,080 x 1,100 mm (200.0 x 43.3 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Max Table Load | 6,000 kg (13,228 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 27,000 N (6,070 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 13 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 28,500 kg (62,831 lb) |
| Transport Height | 3,100 mm (122.0 in) |
| Transport Width | 3,650 / 3,520 mm (143.7 / 138.6 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Work area partition for loading in oscillation mode during machining; pendulum areas of 2,025 x 2,025 mm
- Travelling 65-cavity magazine: tool changes in a few seconds despite the 4600 mm travel path
- 5,080 x 1,100 mm fixed table for 6,000 kg (13,228 lb)
- Motor-activated automatic doors
- Ø 1,140 mm rotary table faceplate and a spindle that swivels from -98° to +98°
Limitations
- 28,500 kg (62,831 lb) to transport and found
- Horizontal X travel is 4,030 mm, less than the 4,600 mm vertical
- Rotary table for 2,200 kg is optional; 1,800 kg is the listed figure
- Tool weight is limited to 5 kg with 40-size tooling
Best For
Frequently Asked Questions
01
Yes. Hedelius states that with a work area partition the machine can be loaded in oscillation mode during machining. The data sheet lists pendulum operation as 2,025 x 2,025 mm, and the machine has motor-activated automatic doors.
02
ca. 13 s chip to chip for a pre-selected tool. Hedelius attributes the short change to the travelling tool magazine, which holds 65 tools as standard, and says tool changes take only a few seconds despite the 4600 mm travel path.
03
X 4,600 mm vertical and 4,030 mm horizontal, Y 1,100 mm, Z 900 mm vertical and 1,005 mm horizontal. The fixed table's clamping area is 5,080 x 1,100 mm and it carries 6,000 kg (13,228 lb).
04
Four in the data sheet: SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW or with 185 Nm and 37 kW, and HSK A63 at 18,000 rpm with 136 Nm and 35 kW or at 15,000 rpm with 217 Nm and 50 kW.
