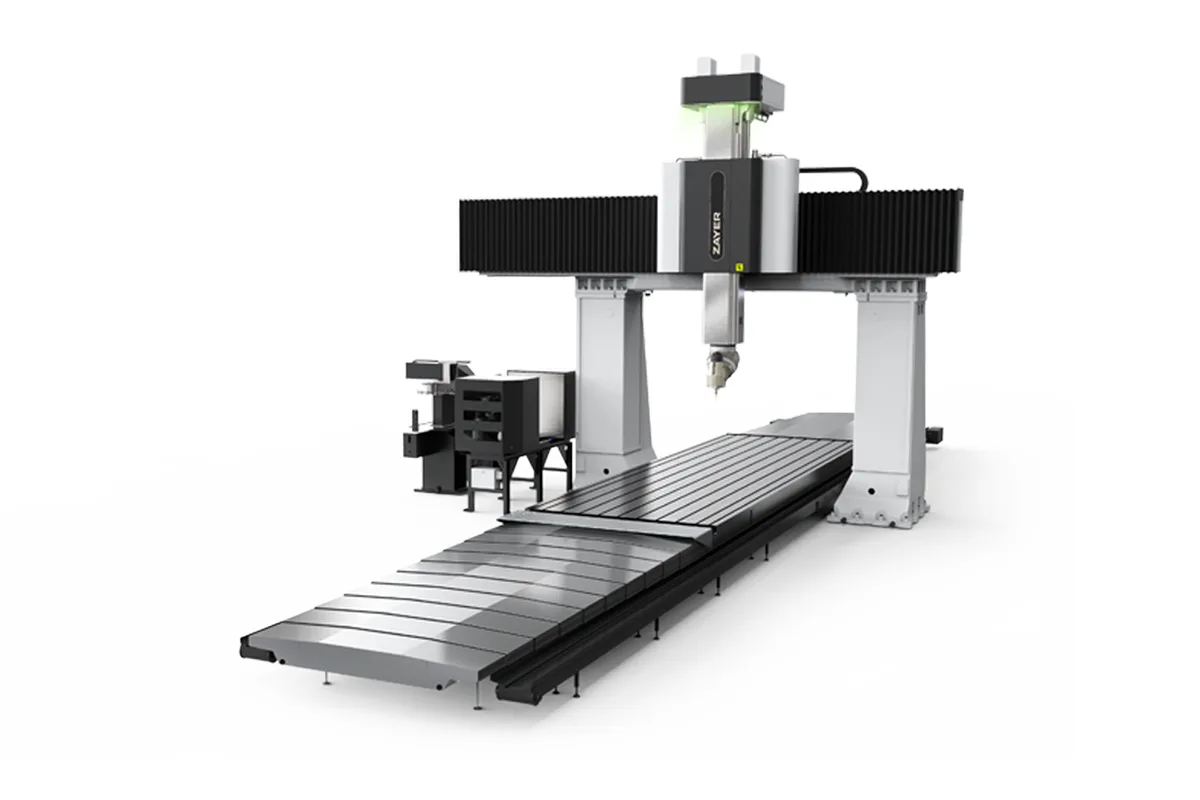

Zayer TEBAS
Image: zayer.com, Zayer
Key Specifications
Tool Capacity
Rapid Traverse
Accuracy
Repeatability
table length
table width
How much does the Zayer TEBAS cost?
Price estimate
We do not have a price for the Zayer TEBAS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Zayer TEBAS is the heavy bridge type machine of the range: a fixed cross beam, a moving table rated for 20,000 kg (44,092 lb), and 43 kW (57.7 hp) as the base power with 60 kW (80.5 hp) optional. Zayer's heading for it is large roughings with control.
X travel is 4,000, 5,000 or 6,000 mm (157.5, 196.9 or 236.2 in), on tables of 4,100, 5,100 or 6,100 mm (161.4, 200.8 or 240.2 in). Y travel is 3,750 mm (147.6 in) and can be 4,250 or 4,750 mm (167.3 or 187.0 in). Z starts at 1,250 mm (49.2 in), with 1,500, 1,750 and 2,000 mm (59.1, 68.9 and 78.7 in) as options. The columns stand 3,000 mm (118.1 in) apart, or 3,500 or 4,000 mm (137.8 or 157.5 in), and the table is 2,200 mm (86.6 in) wide, optionally 2,500 or 3,000 mm (98.4 or 118.1 in).
The drives show how the machine is meant to be used. The longitudinal axis is a rack with a double motor and pinion, the cross axis a two-motor rack and pinion, and the vertical axis a pair of ball screws with a double compensation system, a symmetric arrangement Zayer credits with greater thermal stability. Rapid feed reaches up to 50,000 mm/min (1,969 ipm) and working feed up to 45,000 mm/min (1,772 ipm), well above the 30,000 mm/min (1,181 ipm) of the ARION.
Change of heads is standard here, where it is an option on the ARION and ARES. Nine heads are listed: the standard 45º head, and options that include a 30º head with a 33 kW electrospindle, a 40º head with a 42 kW, 15,000 rpm electrospindle, three direct outlet heads and an L shaped head. The magazine holds 30 tools and can be extended to 40, 60, 80 or 120. Machine weight is about 40,000 to 85,000 kg (88,183 to 187,390 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Table Length | 4,100 - 5,100 - 6,100 mm (161.4 - 200.8 - 240.2 in) |
| Table Width | 2,200 mm (86.6 in); 2,500 - 3,000 mm (98.4 - 118.1 in) optional |
| Distance Between Columns | 3,000 mm (118.1 in); 3,500 - 4,000 mm (137.8 - 157.5 in) optional |
| X Axis Travel | 4,000 - 5,000 - 6,000 mm (157.5 - 196.9 - 236.2 in) |
| Y Axis Travel | 3,750 mm (147.6 in); 4,250 - 4,750 mm (167.3 - 187.0 in) optional |
| Z Axis Travel | 1,250 mm (49.2 in); 1,500 - 1,750 - 2,000 mm (59.1 - 68.9 - 78.7 in) optional |
| Max Distance Table to Spindle Nose | 1,465 mm (57.7 in); 1,765 mm (69.5 in) optional |
| Rapid Traverse Rate | up to 50,000 mm/min (1,969 ipm) |
| Cutting Feed Rate | up to 45,000 mm/min (1,772 ipm) |
| Longitudinal Axis Drive | rack and double motor and pinion |
| Cross Axis Drive | two motors rack and pinion |
| Vertical Axis Drive | 2 ball screw; rack and double motor and pinion (vertical = 2000) |
| Power | 43 kW (57.7 hp); 60 kW (80.5 hp) optional |
| Spindle Speed | 6,000 rpm; 8,000 rpm optional |
| Positioning Accuracy | 0.008/4,000 mm |
| Repeatability | 0.005/4,000 mm |
| Max Table Load | 20,000 kg (44,092 lb) |
| Machine Weight | approx. 40,000 - 85,000 kg (88,183 - 187,390 lb) |
| Tool Capacity | 30; 40 - 60 - 80 - 120 optional |
Specifications sourced from zayer.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 43 kW (57.7 hp) standard power with 60 kW (80.5 hp) optional
- Rapid feed up to 50,000 mm/min (1,969 ipm) and working feed up to 45,000 mm/min (1,772 ipm)
- Change of heads is standard equipment
- Double ball screw and double compensation on the vertical axis, a symmetric layout for thermal stability
- Y travel options to 4,750 mm (187.0 in) and Z options to 2,000 mm (78.7 in)
- Tool magazine options up to 120 tools
Limitations
- Fixed cross beam: clearance under the bridge is set by the Z travel chosen
- Spindle head speed is 6,000 rpm, or 8,000 rpm as an option, unless an electrospindle head is fitted
- Weighs about 40,000 to 85,000 kg (88,183 to 187,390 lb)
- Extended Y, Z, table width and column spacing are all options over the base machine
Best For
Frequently Asked Questions
01
Power is listed at 43 kW (57.7 hp), with 60 kW (80.5 hp) as an option. The spindle head runs at 6,000 rpm, or 8,000 rpm optionally. Zayer does not publish a torque figure on the product page.
02
X is 4,000, 5,000 or 6,000 mm (157.5, 196.9 or 236.2 in). Y is 3,750 mm (147.6 in), with 4,250 or 4,750 mm (167.3 or 187.0 in) optional. Z is 1,250 mm (49.2 in), with 1,500, 1,750 or 2,000 mm (59.1, 68.9 or 78.7 in) optional. Maximum distance from table to spindle nose is 1,465 mm (57.7 in), or 1,765 mm (69.5 in) as an option.
03
Yes. The accessory table marks change of heads as standard. Nine heads are listed, with the 45º head standard and the others optional, among them direct outlet heads with reduction or with electrospindle and an L shaped head.
04
The TEBAS has a rectangular moving table and X travel of 4,000 to 6,000 mm. The TEBAS G replaces the table with a Ø 2,200 mm (86.6 in) rotary table for milling and turning that travels 2,500 mm (98.4 in), and it is listed with 101 kW (135.4 hp) and 10,000 rpm.
05
The standard magazine holds 30 tools. Options are 40, 60, 80 or 120 tools. A chip conveyor and the coolant tank are standard.
