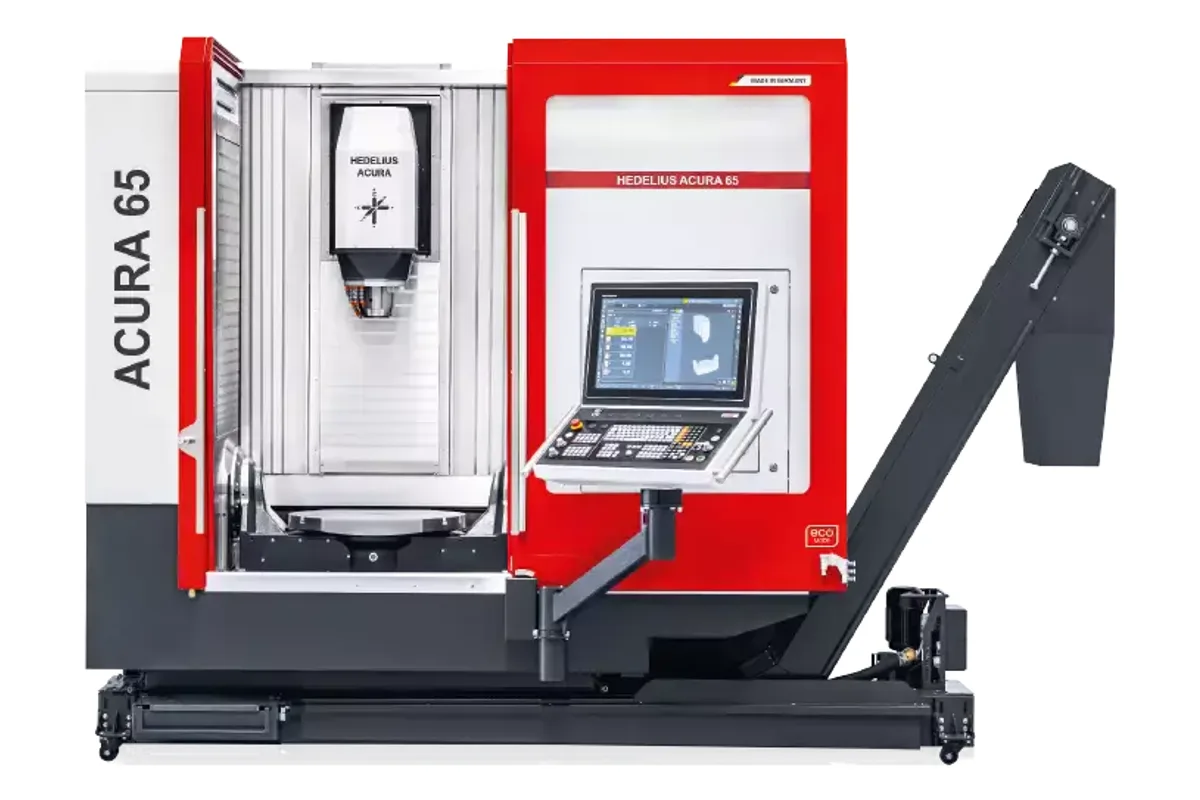

Hedelius ACURA 65 EL
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius ACURA 65 EL cost?
Price estimate
We do not have a price for the Hedelius ACURA 65 EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Hedelius ACURA 65 EL the automation arrives from the left. A pneumatically activated stainless steel loading door sits in the left wall of the work area, the opening is approx. 900 mm high, and a prepared interface lets a pallet handling system or a robot from any supplier serve the machine. The operator's door at the front stays fully accessible for making single parts by hand.
Underneath is the mid-size ACURA with its T-slot table. X travel is 700 mm (27.6 in), Z is 600 mm (23.6 in) and Y is 650 / 465 mm (horizontal / vertical). The table measures Ø 650 x 540 mm, carries 500 kg (1,102 lb) and has five 14 mm T-slots, so a fixture can still be bolted down directly when no pallet system is in use. A 4-fold rotary transfer for pneumatics in the table activates zero point clamping elements or power clamps.
Robot loading of raw parts and pallet loading put different demands on the table drive, and the data sheet offers two rotation speeds, 0 – 20 or 0 – 50 min-1. The swivel range is +30° to -115° with 2,040 Nm of swivel torque. Keep an eye on the Ø 700 mm interference circle when choosing the pallet size.
Five spindles are listed, from SK40 / BT40 at 14,000 rpm and 22 kW up to HSK A63 with 217 Nm and 50 kW at 15,000 rpm. For lights-out work the tool count matters as much: 65 places are standard and the theoretical capacity reaches 329 with a standby magazine. Chip-to-chip time is ca. 9.3 s and the machine weighs 7,500 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 700 mm (27.6 in) |
| Y Axis Travel | 650 / 465 mm (25.6 / 18.3 in) (H/V: horizontal / vertical) |
| Z Axis Travel | 600 mm (23.6 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 5 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Distance | 120 / 120 (60 / 60) mm (4.7 / 4.7 (2.4 / 2.4) in) (H/V: horizontal / vertical) |
| Table Size | Ø 650 x 540 mm (Ø 25.6 x 21.3 in) |
| Interference Circle Diameter | Ø 700 mm (Ø 27.6 in) |
| T-Slots | 14 mm (0.55 in) T-slots, number 5, distance 100 mm (3.9 in) |
| Table Swivel Range | +30° – -115° |
| Table Swivel Time 90 Deg | 1.2 s |
| Table Swivel Accuracy | < ±10" |
| Table Rotational Speed | 0 – 20 / 0 – 50 min-1 |
| Indexing Accuracy | < ±6" |
| Axial Runout Accuracy | 0.015 mm (0.0006 in) |
| Table Swivel Torque | 2,040 Nm (1,505 lb-ft) |
| Table Swivel Clamping Force | 4,000 Nm (2,950 lb-ft) |
| Table Dividing Torque | 1,060 Nm (782 lb-ft) |
| Table Dividing Clamping Force | 2,000 Nm (1,475 lb-ft) |
| Max Table Load | 500 kg (1,102 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 11,000 N (2,473 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 90 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 mm (13.0 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 9.3 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm (ISO 230-2, X, Y, Z) |
| Machine Weight | 7,500 kg (16,534 lb) |
| Transport Height | 2,515 / 2,663 mm (99.0 / 104.8 in) |
| Transport Width | 2,985 / 2,760 mm (117.5 / 108.7 in) |
| Marathon Automation Interface | MARATHON SR422: yes; MARATHON SR518: no; MARATHON PL406: yes; MARATHON RZ430: yes |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Loading door on the left of the work area with an opening height of approx. 900 mm
- Open, prepared interface for a pallet handling system or a robot
- Keeps the Ø 650 x 540 mm T-slot table, so manual fixturing remains possible
- 4-fold rotary transfer for pneumatics in the table for zero point or power clamps
- Up to 50 kW and 217 Nm with the HSK A63 spindle at 15,000 rpm
Limitations
- The pallet system or robot is a separate purchase and integration job
- 500 kg (1,102 lb) on the table includes whatever pallet and clamping the automation uses
- Floor space is needed on the left of the machine for the automation
- Tools are limited to 330 mm in length and 5 kg
Best For
Frequently Asked Questions
01
From the left. Hedelius lists a pneumatically activated stainless steel loading door on the left in the work area with an opening height of approx. 900 mm. The front door stays fully accessible for the manual production of single parts.
02
Yes, Hedelius names both: automation with a pallet handling system or a robot, and describes the interface as suitable for numerous systems. The ACURA 65 data sheet also shows an interface for Hedelius's own MARATHON SR422, PL406 and RZ430 magazines.
03
A Ø 650 x 540 mm table with five 14 mm T-slots at 100 mm spacing, plus a 4-fold rotary transfer for pneumatic systems in the table to activate zero point clamping elements or power clamps. Table load is 500 kg (1,102 lb).
04
SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW or 183 Nm and 29 kW; HSK A63 at 18,000 rpm with 136 Nm and 35 kW, at 14,000 rpm with 22 kW, or at 15,000 rpm with 217 Nm and 50 kW. The product page adds a 24,000 rpm HSK A63 spindle with 30 kW.
