Hedelius TILTENTA 9-3600

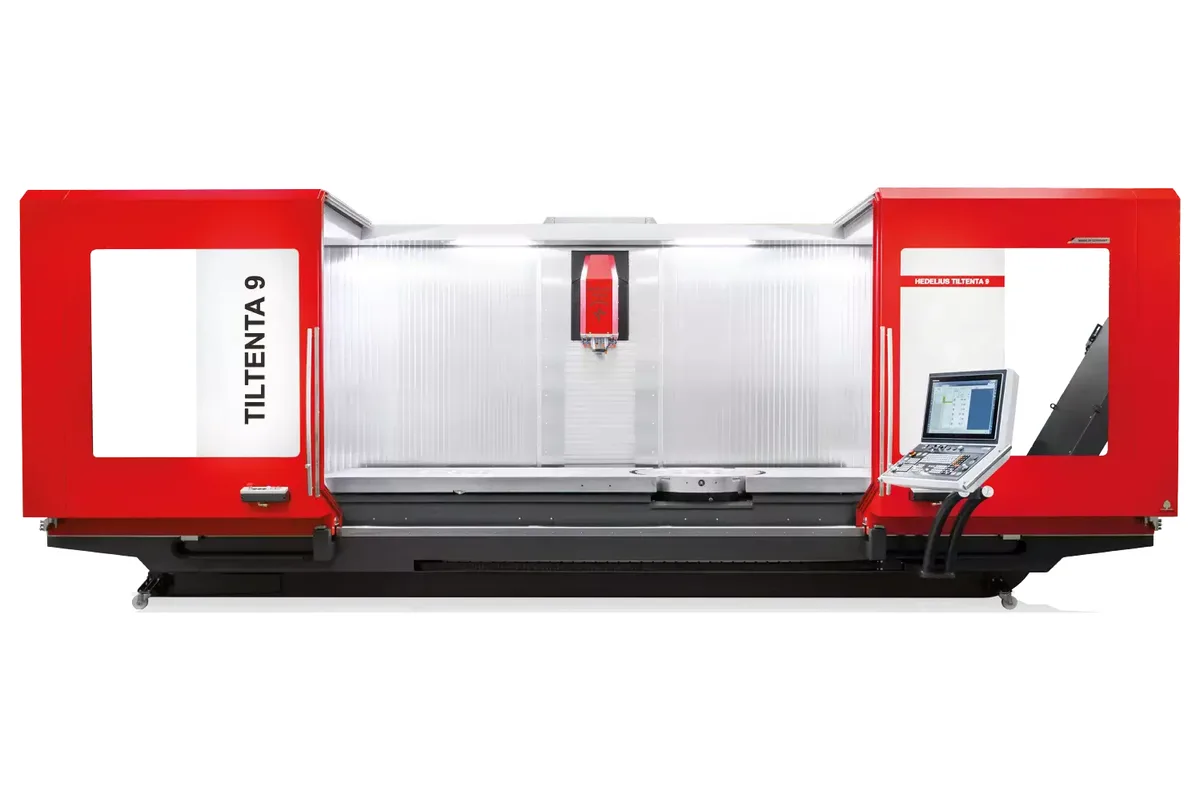

Image: hedelius.de, Hedelius
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Hedelius TILTENTA 9-3600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 9-3600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the spindle swivelled to horizontal, the Hedelius TILTENTA 9-3600 machines the front side of workpieces up to approx. 2600 mm long. Vertically it covers the full 3,600 mm (141.7 in) of X. That difference, between the vertical travel and the length reachable from the end, is the number to check first on any swivel-spindle travelling column machine, and Hedelius states it openly for this model.
Y and Z travel are 900 mm each. The fixed table has a contact surface of 4,080 x 900 mm and takes up to 4,000 kg (8,818 lb). An integrated rotary table with a Ø 900 mm face plate handles 5-axis work; its load is given as 1,200 / 1,800 kg, the higher figure belonging to the optional heavy-duty table. The collision area diameter is Ø 1,250 mm.
Hedelius quotes the drive data in one sentence: speeds of up to 18,000 rpm, spindle outputs of up to 50 kW and a torque of up to 217 Nm, with feeds of up to 40 m/min. Because four axes are in the tool, the dynamics do not depend on the workpiece. The spindle list also contains a 24,000 rpm HSK A63 unit with 30 kW, and SK 40 / BT 40 units at 14,000 rpm with 22 kW or 37 kW.
From this length upward the series offers oscillation mode, which Hedelius lists as optional for both 3-axis and 5-axis machining. The page gives it as 2 x 1,575 mm. Sixty tools are standard. No data sheet is linked for the series, so the machine weight and tool dimensions are figures to ask for.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,600 mm (141.7 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Oscillation Mode | 2 x 1,575 mm (62.0 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Motor Power | 22 / 37 / 50 / 35 / 30 kW (29.5 / 49.6 / 67.1 / 46.9 / 40.2 hp) (spindle options) |
| Spindle Speed | 14,000 / 15,000 / 18,000 / 24,000 min-1 (spindle options) |
| Spindle Taper | SK 40, BT 40, HSK A63 |
| Tool Capacity | 60 / 130 / 175 / 240 / 324 |
| Table Size | 4,080 x 900 mm (160.6 x 35.4 in) |
| Max Table Load | 4,000 kg (8,818 lb) |
| Rotary Table Faceplate | Ø 900 mm (Ø 35.4 in) |
| Interference Circle Diameter | Ø 1,250 mm (Ø 49.2 in) |
| Rotary Table Load | 1,200 / 1,800 kg (2,646 / 3,968 lb) |
| Spindle Option 1 | SK 40 / BT 40, CELOX 14,000 1/min, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp) |
| Spindle Option 2 | SK 40 / BT 40, CELOX 14,000 1/min, 185 Nm (136 lb-ft), 37 kW (49.6 hp) |
| Spindle Option 3 | HSK A63, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp) |
| Spindle Option 4 | HSK A63, CELOX 18,000 1/min, 136 Nm (100 lb-ft), 35 kW (46.9 hp) |
| Spindle Option 5 | HSK A63, CELOX 24,000 1/min, 123 Nm (90.7 lb-ft), 30 kW (40.2 hp) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Front side processing of workpieces up to approx. 2600 mm with the spindle horizontal
- 3,600 mm of X travel and a 4,080 x 900 mm fixed table for 4,000 kg (8,818 lb)
- Oscillation mode of 2 x 1,575 mm, optional for 3- and 5-axis machining
- Up to 18,000 rpm, up to 50 kW and up to 217 Nm, with feeds of up to 40 m/min
- Four axes in the tool, so dynamics are independent of the workpiece
Limitations
- End-face machining reaches approx. 2600 mm, not the full 3,600 mm of X
- Oscillation mode and the integrated heavy-duty rotary table are options
- No data sheet is linked for the series; weight and tool limits are not on the page
- Y travel of 900 mm limits the width of long parts
Best For
Frequently Asked Questions
01
Hedelius lists front side processing of workpieces up to approx. 2600 mm. In vertical machining the X travel path is 3,600 mm. The difference arises because the swivelled spindle and tool take up part of the axis.
02
The page gives 2 x 1,575 mm, two work areas of 1,575 mm each. Hedelius lists 3- and 5-axis machining in oscillation mode as optional, so the work area partition and any second rotary table have to be included in the order.
03
Speeds of up to 18,000 rpm and spindle outputs of up to 50 kW with a torque of up to 217 Nm in the description. The list shows five spindles, including HSK A63 at 15,000 rpm with 217 Nm and 50 kW and HSK A63 at 24,000 rpm with 123 Nm and 30 kW.
04
Up to 4,000 kg (8,818 lb) on the fixed machine table, which has a contact surface of 4,080 x 900 mm. The rotary table load is 1,200 / 1,800 kg, where the integrated heavy-duty rotary table with up to 1800 kg is optional.
