Hartford HSA-327
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HSA-327 cost?
Price estimate
We do not have a price for the Hartford HSA-327 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford HSA-327 opens the large HSA range: double-column machining centers with a #50 spindle, a slant cross-beam and optional Z strokes. X travel is 3,000 mm (118.1 in), Y is 2,700 mm (106.3 in), and the table is 3,000 x 2,200 mm (118.1 x 86.6 in) for 10,000 kg (22,046 lb).
From this size the HSA changes character. The four small models can be had in #40; this one cannot. In return it lists three spindle drives. The gear head runs 6,000 / 8,000 rpm, the DDS spindle 10,000 / 12,000 rpm and a built-in motor spindle 12,000 rpm. Motors start at 15 / 18.5 kW and are optional at 18.5 / 22 kW, 22 / 26 kW and 30 /37 kW (Cont. / 30 min).
Z travel is 780 mm as standard, with 1,000 mm and 1,200 mm as options. The ram runs on four linear guideways in Hartford's patented arrangement, credited with 20% more rigidity while cutting.
In Hartford's own grouping the x27 models, like the x23 and x212, have two linear guideways under the table on the X axis; the three-guideway X axis starts with the x28 models. Ballscrew support on X is optional below 4 meters. The magazine holds 32 tools, or 40 or 60.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 3,000 x 2,200 mm (118.1 x 86.6 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 780, opt. 1,000 / 1,200 mm |
| Spindle Taper | #50 |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Spindle Speed Built in | 12,000 rpm |
| Tool Capacity | A: 32 (40 / 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
| Spindle Motor Power | 15 / 18.5 (opt. 18.5 / 22, 22 / 26, 30 /37) kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Three #50 spindle drives: gear, DDS and built-in
- Motor options up to 30 /37 kW (Cont. / 30 min)
- Z travel of 780 mm with 1,000 mm or 1,200 mm options
- Y travel of 2,700 mm (106.3 in) over a 2,200 mm table
- 32, 40 or 60 tool magazine
Limitations
- Two-guideway X axis, where the HSA-328 has three
- X-axis ballscrew support is an option at this length
- 10,000 kg (22,046 lb) table load, against 15,000 kg (33,069 lb) on the HSA-328
- No #40 high-speed spindle at this size
Best For
Frequently Asked Questions
01
X 3,000 mm (118.1 in), Y 2,700 mm (106.3 in) and Z 780 mm, with 1,000 mm or 1,200 mm as options. The table measures 3,000 x 2,200 mm (118.1 x 86.6 in).
02
All are #50: a gear head at 6,000 / 8,000 rpm, a DDS spindle at 10,000 / 12,000 rpm and a built-in spindle at 12,000 rpm. Shanks are BT-50, with CAT50, DIN69871A and BBT50 as alternatives.
03
Two. Hartford states a three linear guideway X-axis design for the HSA-x28/x32/x36 series and a two guideway design for the HSA-x23/x27/x212 series.
04
The HSA-328 has a 3,000 x 2,500 mm (118.1 x 98.4 in) table, 2,800 mm (110.2 in) of Y and a 15,000 kg (33,069 lb) load, and belongs to the three-guideway group. The HSA-327 is the lighter machine with a 2,200 mm wide table.
More from Hartford
Other Vertical Machining Centers (VMC)
Hyundai WIA KF5600

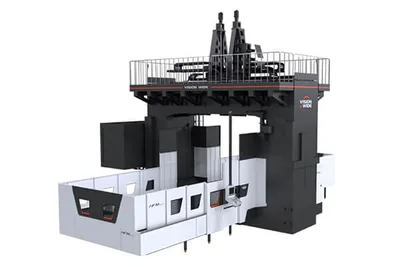

Vision Wide HF-10042M
Sharp LMV-MP-2

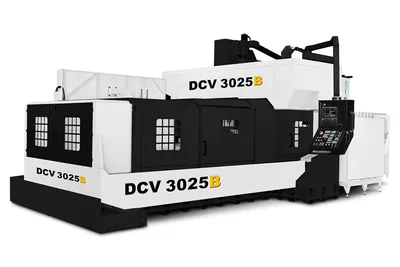

YCM DCV3025B
