Hyundai WIA Vertical Machining Centers (VMC)

Hyundai WIA KF5600

Est. $85,000 - $130,000 Possible older model Updated 2026-10-03

This model was not found in Hyundai WIA's current lineup when we checked on 2026-09-24 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

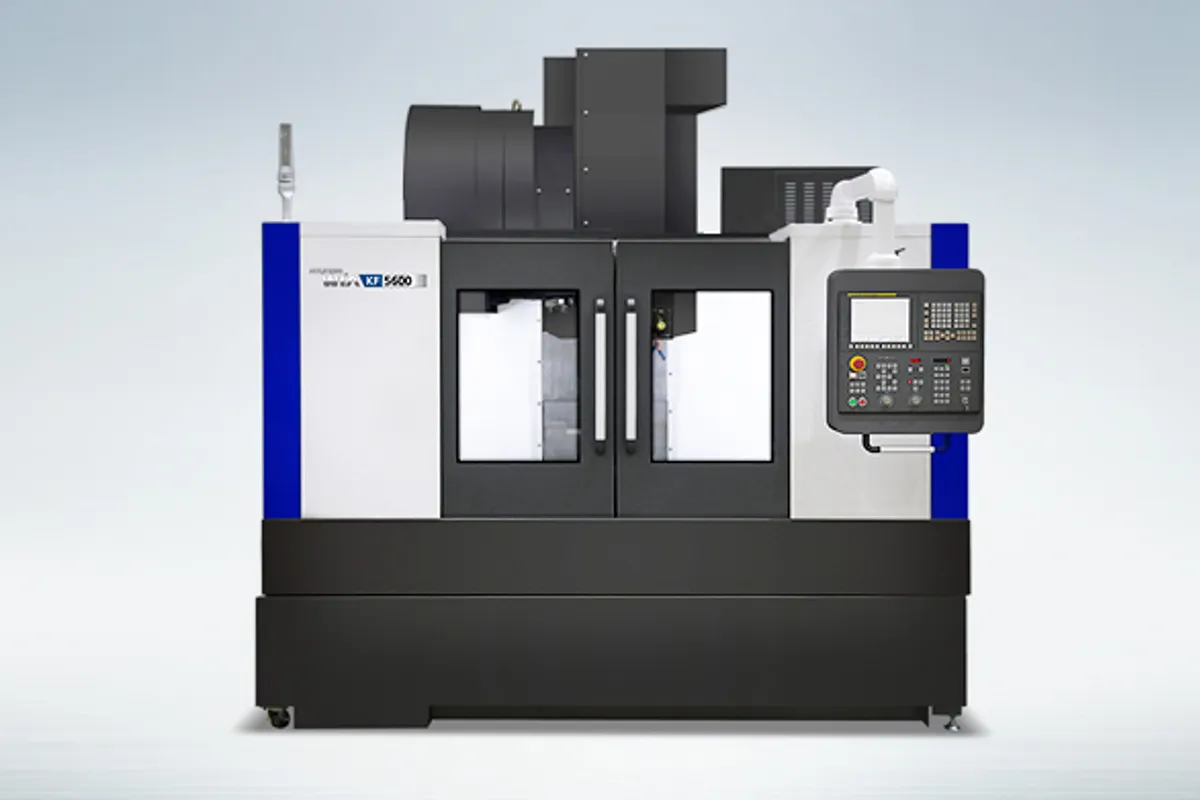

Hyundai WIA KF5600 Vertical Machining Centers (VMC)

Key Specifications

X Travel

1,100 mm (43.3 in)

Y Travel

560 mm (22 in)

Z Travel

520 mm (20.5 in)

Max Spindle

12,000 RPM (8K/10K/15K/20K options)

Spindle Taper

HSK-A63

Tool Capacity

30 (40 optional)

How much does the Hyundai WIA KF5600 cost?

Estimated price range

Est.$85,000 - $130,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA KF5600 is a vertical machining center with 1,100 × 560 × 520 mm (43.3 × 22 × 20.5 in) travels and an HSK-A63 direct-drive spindle listed at 12,000 RPM, with 8K, 10K, 15K and 20K spindles as options. Hyundai WIA no longer shows it in the current lineup, so it is most likely an older model, and the figures here are listed ones that need confirming on the machine.

That spread of spindle options is the first thing to pin down on any KF5600. A machine ordered with the 8K spindle and one ordered with the 20K spindle suit opposite kinds of work, and no power or torque is listed for any of them. Read the spindle plate before anything else.

Coolant is the second. The listed options are flood, through-spindle and MQL (minimum quantity lubrication). They are options, so neither through-spindle coolant nor MQL should be assumed on a given machine. For deep drilling or pocketing with long tools, confirm that through-spindle delivery is actually fitted.

The rest is consistent across the listed figures. Rapids are 36 m/min (1,417 ipm) on X and Y and 30 m/min (1,181 ipm) on Z, over linear roller guideways. The table takes 1,000 kg (2,205 lb). A servo-driven arm changes tools from a 30-tool magazine, 40 optional. The control is given only as FANUC i-Series, without a model.

Full Specifications

Parameter	Value
X-Axis Travel	1,100 mm (43.3 in)
Y-Axis Travel	560 mm (22 in)
Z-Axis Travel	520 mm (20.5 in)
Table Load Max	1,000 kg (2,205 lb)
Max Spindle Speed	12,000 RPM (8K/10K/15K/20K options)
Spindle Taper	HSK-A63
Spindle Drive	Direct Drive
Tool Capacity	30 (40 optional)
Tool Changer Type	Servo-driven arm type
Rapid Traverse Xy	36 m/min (1,417 ipm)
Rapid Traverse Z	30 m/min (1,181 ipm)
Guideway Type	Linear roller guideways
CNC Control	FANUC i-Series
Mql	Available (Minimum Quantity Lubrication)
Coolant Options	Flood, through-spindle, MQL

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Spindle speed could be specified: 12,000 RPM as listed, with 8K, 10K, 15K and 20K options
Flood, through-spindle and MQL coolant all appear among the listed options
1,000 kg (2,205 lb) table load over 1,100 mm (43.3 in) of X travel
Rapids of 36 m/min (1,417 ipm) on X and Y and 30 m/min (1,181 ipm) on Z
30-tool magazine with servo-driven arm changer, 40 tools optional

Limitations

The fitted spindle varies from machine to machine, and no power or torque is listed for any version
Through-spindle coolant and MQL are options and may be absent
The control is listed only as FANUC i-Series, so the exact model must be read off the machine
No longer in Hyundai WIA's current lineup; machine weight and accuracy figures are not listed

Best For

Mid-size parts within 1,100 × 560 mm (43.3 × 22 in) and 1,000 kg (2,205 lb) Deep-hole and pocket work on machines fitted with through-spindle coolant High-speed finishing on machines built with the 15K or 20K spindle Near-dry machining where the MQL option is fitted

Frequently Asked Questions

01 What spindle speeds were offered on the KF5600?

12,000 RPM is the listed speed, with 8K, 10K, 15K and 20K spindles as options. The spindle is direct drive with an HSK-A63 interface. Since the option fitted changes what the machine is good at, confirm the speed on the spindle plate or the control.

02 Does the KF5600 have through-spindle coolant?

It is one of the listed coolant options, together with flood and MQL (minimum quantity lubrication). Being an option, it is not present on every machine. Inspect the machine for it, or ask for the original order specification.

03 What are the travels and rapid rates of the KF5600?

Travels are 1,100 mm (43.3 in) in X, 560 mm (22 in) in Y and 520 mm (20.5 in) in Z. Rapid traverse is 36 m/min (1,417 ipm) in X and Y and 30 m/min (1,181 ipm) in Z, on linear roller guideways. The table is rated for 1,000 kg (2,205 lb).

04 Is the KF5600 still listed by Hyundai WIA?

It is not in the current lineup, which suggests an older model. For a machine on offer, establish the spindle fitted, the coolant options present, the magazine size (30 tools listed, 40 optional) and the exact FANUC i-Series control.
