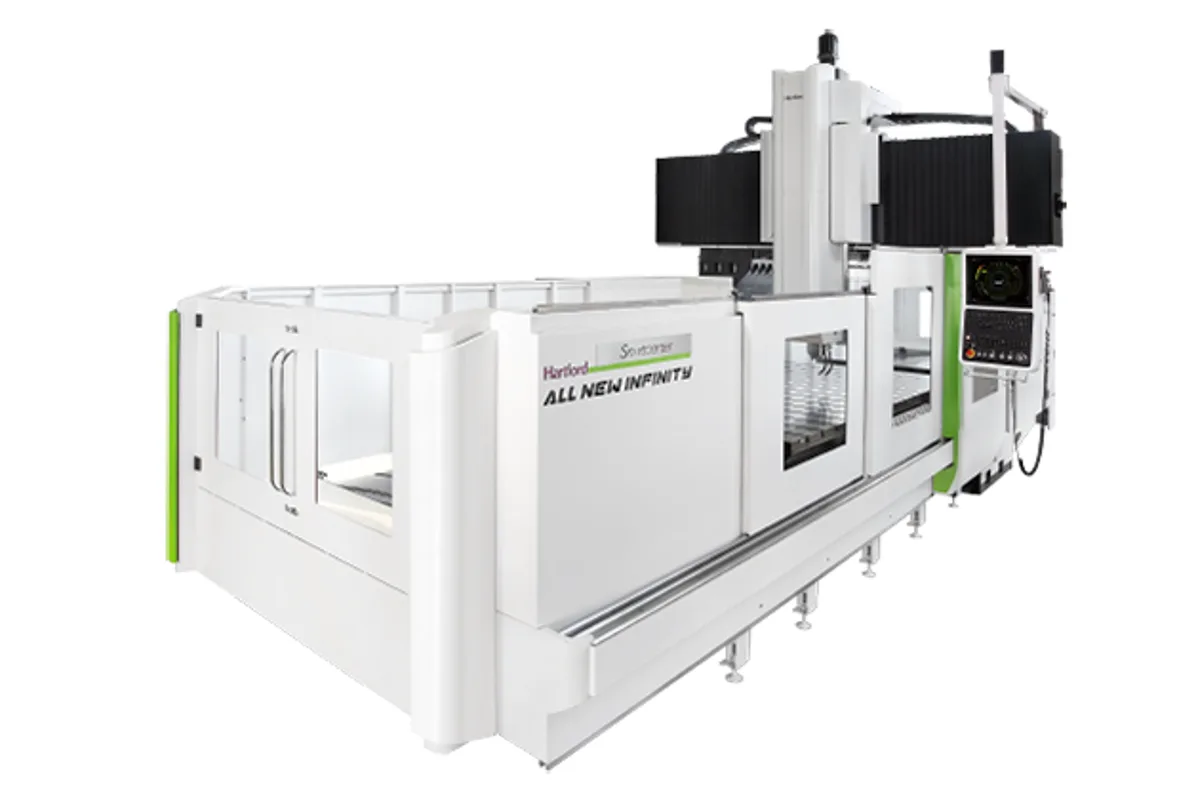

Hartford HSA-832
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HSA-832 cost?
Price estimate
We do not have a price for the Hartford HSA-832 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Hartford's HSA-832 is an eight-metre double-column machining center with 3,200 mm (126.0 in) of Y travel. The table is 8,000 x 2,500 mm (315.0 x 98.4 in), X travel is 8,000 mm (315.0 in), and the table load is 27,000 kg (59,524 lb).
Table and load are those of the HSA-828; the gantry is wider, with 3,200 mm of Y against 2,800 mm (110.2 in) for the HSA-828. On a long machine that extra width is often used for setup access as much as for cutting. With the spindle parked beyond the table edge, a crane can lower a part without the head in the way, and an operator can walk the length of the table beside the bridge.
It also gives a right-angle head somewhere to stand when it works down the long side of a beam or frame. Hartford does not describe automatic head change on the HSA; manual or semi-automatic angle heads are the usual route on a fixed-beam machine, and the automatic versions in Hartford's range are the HSA-EA models.
The #50 spindle comes as gear head (6,000 / 8,000 rpm), DDS (10,000 / 12,000 rpm) or built-in (12,000 rpm), with motors from 15 / 18.5 kW to 30 /37 kW. Z travel: 780 mm, or 1,000 mm or 1,200 mm. Magazine: 32, 40 or 60 tools.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 8,000 x 2,500 mm (315.0 x 98.4 in) |
| Max Table Load | 27,000 kg (59,524 lb) |
| X Axis Travel | 8,000 mm (315.0 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 780, opt. 1,000 / 1,200 mm |
| Spindle Taper | #50 |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Spindle Speed Built in | 12,000 rpm |
| Tool Capacity | A: 32 (40 / 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
| Spindle Motor Power | 15 / 18.5 (opt. 18.5 / 22, 22 / 26, 30 /37) kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,200 mm (126.0 in) of Y travel over a 2,500 mm wide, eight-metre table
- 27,000 kg (59,524 lb) table load
- 8,000 mm (315.0 in) of X travel on three linear guideways
- Room beside the table for angle-head work and loading
- Three #50 spindle drives with motors to 30 /37 kW
Limitations
- No more table or load than the HSA-828
- Z travel of 780 mm unless an option is ordered
- Automatic head change is not described for this model
- Spindle speeds stop at 12,000 rpm
Best For
Frequently Asked Questions
01
Y travel. The HSA-832 has 3,200 mm (126.0 in) and the HSA-828 has 2,800 mm (110.2 in). Both have an 8,000 x 2,500 mm (315.0 x 98.4 in) table rated for 27,000 kg (59,524 lb).
02
X 8,000 mm (315.0 in), Y 3,200 mm (126.0 in) and Z 780 mm, with 1,000 mm and 1,200 mm as options. The table measures 8,000 x 2,500 mm (315.0 x 98.4 in).
03
A #50 spindle with BT-50 shanks, as a gear head at 6,000 / 8,000 rpm, a DDS spindle at 10,000 / 12,000 rpm or a built-in spindle at 12,000 rpm.
04
On X, yes: Hartford states X axis ballscrew support is standard above 5 meters. For Y, the maker names the x36 series as standard and the x23/x27/x28 series as optional, and does not mention x32, so the point should be confirmed.
