Vision Wide HF-10042M
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
max table load
spindle power cont 30 min
How much does the Vision Wide HF-10042M cost?
Price estimate
We do not have a price for the Vision Wide HF-10042M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

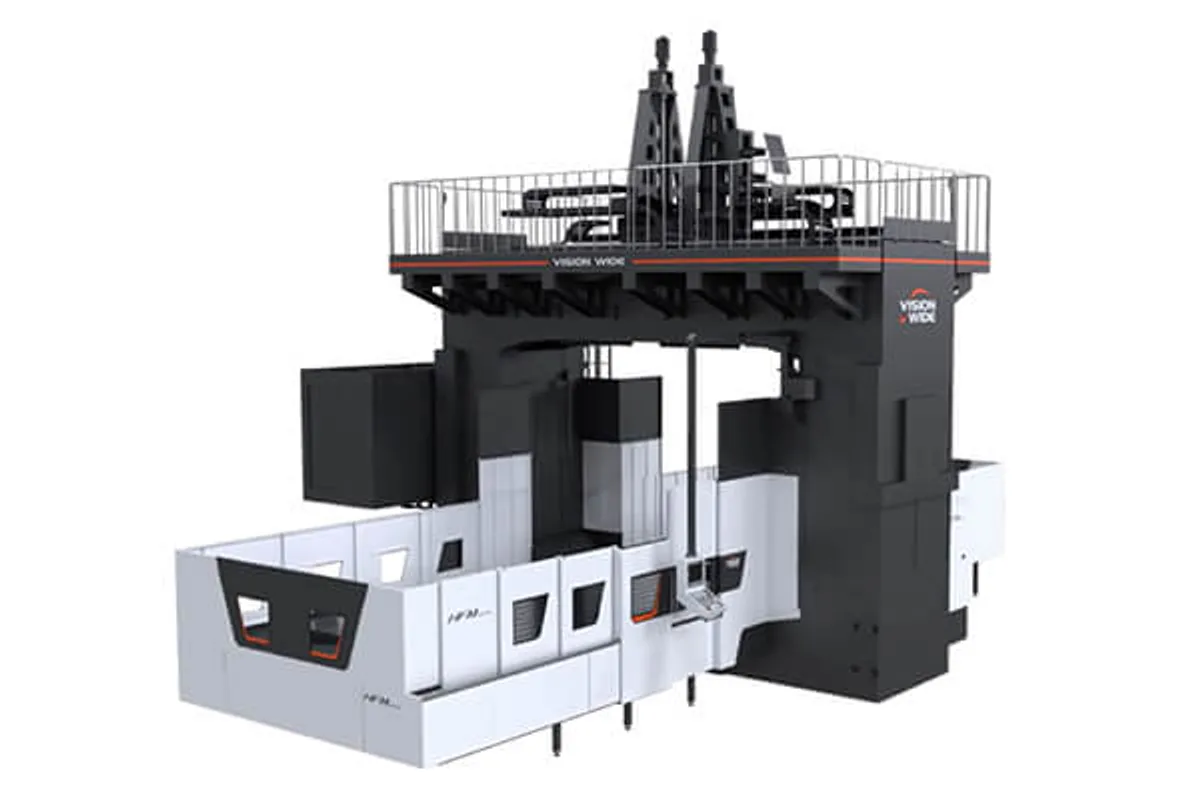

The Vision Wide HF-10042M is a ten-metre five-face machine for ultra-large workpieces: 10,100 mm (397.6 in) of X travel, 4,200 mm (165.4 in) of Y, 1,500 mm (59.1 in) of Z, and a 10,000×3,000 mm (393.7×118.1 in) table rated for 36,000 kg (79,365 lb).
Feedback is specified differently here than on the other Vision Wide bridge machines. Z axis linear scale feedback is a standard accessory, and X/Y-axis linear scale feedback is the option. Elsewhere in the range all three scales are optional. The reasoning is easy to follow: the Z axis on this series is the long, heavily loaded one, and errors in depth show directly on the part.
On a 10,100 mm X axis, though, the optional X scale is hard to leave off. Add it to the quotation unless the work is roughing only.
Vision Wide gives the series a spindle torque output of 1,500~2,000Nm and says the HFM satisfies demands in heavy cutting ability, angles cutting, 3D mold cutting and precise contour finishing. Motor power is 22/26 kW (29.5/34.9 hp), or 30/37 kW (40.2/49.6 hp) as an option. Rapid traverse is 15/15/12 m/min and cutting feed 1~7,000 mm/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,100 mm (397.6 in) |
| Y Axis Travel | 4,200 mm (165.4 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 10,000×3,000 mm (393.7×118.1 in) |
| Max Table Load | 36,000 kg (79,365 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000/6,000 rpm (Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm (Opt.) |
| Cutting Feed Rate | 1~7,000 mm/min |
| Rapid Traverse Xyz Box Way | 15/15/12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,100 mm (397.6 in) of X travel with 1,500 mm (59.1 in) of Z
- 36,000 kg (79,365 lb) table load
- Z axis linear scale feedback is standard
- Spindle torque output stated as 1,500~2,000Nm
Limitations
- X/Y-axis linear scale feedback is optional on a 10,100 mm (397.6 in) axis
- Cutting feed limited to 7,000 mm/min
- A vertical type tool magazine of 40tools is the only magazine named, and it is an option
Best For
Frequently Asked Questions
01
Z axis linear scale feedback is on the standard accessory list. X/Y-axis linear scale feedback is on the optional list, so scales on the two long axes must be ordered.
02
10,100 mm (397.6 in) in X, 4,200 mm (165.4 in) in Y and 1,500 mm (59.1 in) in Z, over a 10,000×3,000 mm (393.7×118.1 in) table.
03
04
The HFM specification table has no magazine row. The optional accessory list names a vertical type tool magazine 40tools; the page does not state a standard capacity, so confirm it with Vision Wide.
