Hartford HSA-328

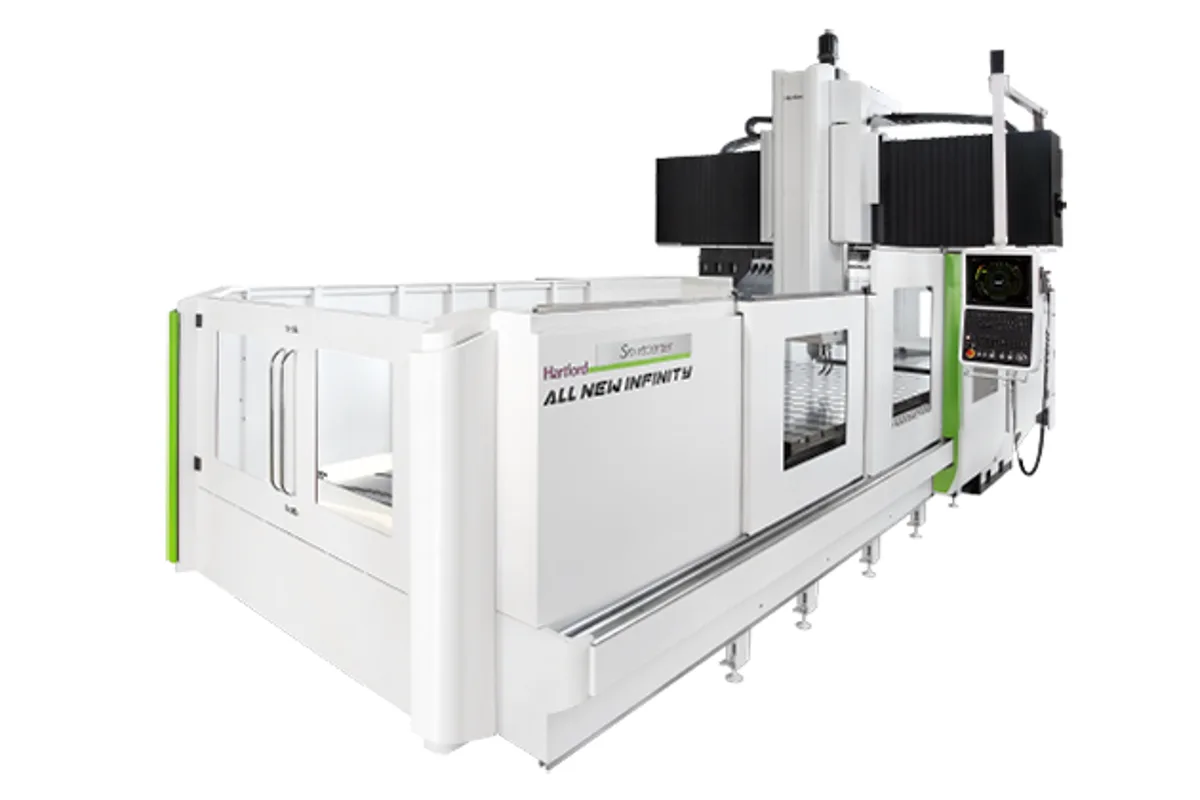

Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HSA-328 cost?
Price estimate
We do not have a price for the Hartford HSA-328 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Fifteen tonnes on a three-metre table is a lot of load for the length. The Hartford HSA-328 is a short, heavy double-column machining center with a 3,000 x 2,500 mm (118.1 x 98.4 in) table rated for 15,000 kg (33,069 lb), 3,000 mm (118.1 in) of X travel and 2,800 mm (110.2 in) of Y.
The rating rests on the table's support. Hartford puts three linear guideways under the X axis of its x28, x32 and x36 models and says the third guideway resists twisting during machining and raises rigidity by more than 50%. A table carried at its centre as well as its edges does not sag between the rails when a dense block sits in the middle.
The cross-beam is a slant design and the columns join the base over a width of 1,250mm. Z travel is 780 mm, optionally 1,000 mm or 1,200 mm.
A #50 spindle is standard in three forms: gear head at 6,000 / 8,000 rpm, DDS at 10,000 / 12,000 rpm, built-in at 12,000 rpm. The motor is 15 / 18.5 kW, with 18.5 / 22 kW, 22 / 26 kW and 30 /37 kW as options. Tools: 32, or 40 or 60, on BT-50 shanks.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 3,000 x 2,500 mm (118.1 x 98.4 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 780, opt. 1,000 / 1,200 mm |
| Spindle Taper | #50 |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Spindle Speed Built in | 12,000 rpm |
| Tool Capacity | A: 32 (40 / 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
| Spindle Motor Power | 15 / 18.5 (opt. 18.5 / 22, 22 / 26, 30 /37) kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 kg (33,069 lb) table load on a 3,000 x 2,500 mm (118.1 x 98.4 in) table
- Three linear guideways on the X axis, with over 50% more rigidity per Hartford
- Column-to-base joint width of 1,250mm
- Gear, DDS and built-in #50 spindles
- Z options of 1,000 mm and 1,200 mm
Limitations
- X travel of 3,000 mm (118.1 in) limits part length
- Y-axis ballscrew support is an option on x28 models, per Hartford
- Spindle speed peaks at 12,000 rpm
- Standard Z travel is 780 mm
Best For
Frequently Asked Questions
01
15,000 kg (33,069 lb) as an average load on a 3,000 x 2,500 mm (118.1 x 98.4 in) table. Workholding is part of that figure.
02
It has the wider table and belongs to the group with three linear guideways on the X axis. Hartford says that design resists torsion and enhances rigidity by more than 50%. The HSA-327 is rated for 10,000 kg (22,046 lb).
03
X 3,000 mm (118.1 in), Y 2,800 mm (110.2 in), Z 780 mm with 1,000 mm or 1,200 mm optional. The spindle nose is #50.
04
15 / 18.5 kW as listed, and 18.5 / 22 kW, 22 / 26 kW or 30 /37 kW as options, all as continuous / 30 min ratings on a #50 spindle.
