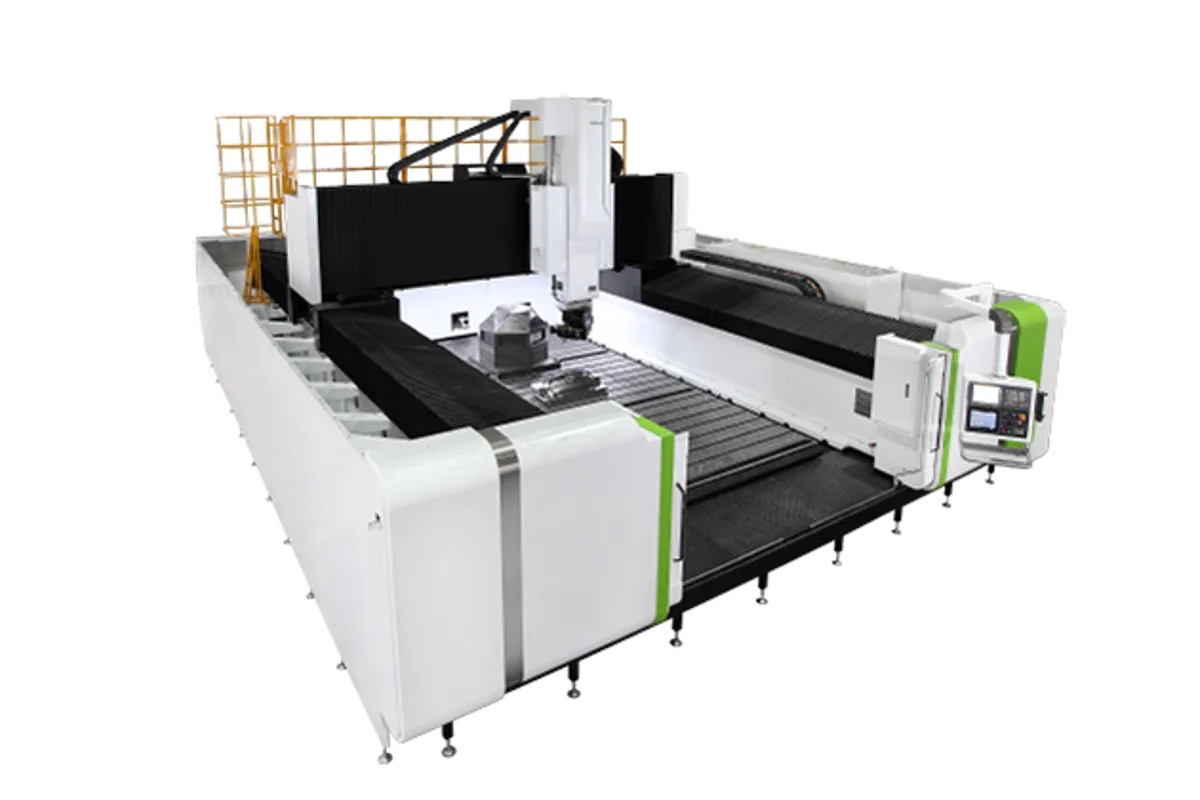

Hartford Aero-641B
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-641B cost?
Price estimate
We do not have a price for the Hartford Aero-641B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 6,000 x 3,600 mm (236.2 x 141.7 in) table and 4,100 mm (161.4 in) of Y travel define the Hartford Aero-641B. X travel is 6,000 mm (236.2 in). The machine is a gantry type 5-faced machining center, one size below the widest six-metre Aero.
On a job with many faces the tool count climbs quickly, and the Aero table handles the magazine in an unusual way: it lists two types. The S type holds 30 tools, with 40 as an option. The A type holds 40, with 60 as an option. Hartford's tables do not explain the difference beyond capacity, so it is a point to raise in the quotation, along with the shank standard. BT-50 is the default and CAT50, DIN69871A and BBT50 are listed as alternatives.
Tools are one store, heads another. The head changer keeps its universal, 90 degree and extension heads in an independent magazine, and Hartford combines the head cabin with a vertical and horizontal tool change system.
The rest of the table is brief: 5,000 kg/m² table load, 1,000 mm Z travel with a longer travel optional, a #50 gear head at 6,000 rpm and an 8,000 rpm option. The narrower Aero-636B has a 6,000 x 3,100 mm (236.2 x 122.0 in) table and 3,600 mm (141.7 in) of Y.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 6,000 x 3,600 mm (236.2 x 141.7 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 4,100 mm (161.4 in) |
| Z Axis Travel | 1,000 (1,200opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Two magazine types, S for 30 or 40 tools and A for 40 or 60
- 6,000 x 3,600 mm (236.2 x 141.7 in) table with 4,100 mm (161.4 in) of Y travel
- Separate head magazine combined with vertical and horizontal tool change
- Four shank standards listed for the #50 spindle
Limitations
- The difference between S type and A type magazines is not explained in the table
- Largest magazine is 60 tools
- Z travel is 1,000 mm unless the longer optional travel is ordered
Best For
Frequently Asked Questions
01
It depends on the magazine. The S type holds 30 tools, or 40 as an option, and the A type holds 40, or 60 as an option. Heads are stored separately in their own magazine.
02
BT-50 as standard, with CAT50, DIN69871A and BBT50 listed in brackets as alternatives. The spindle taper is #50 and the gear head runs 6,000 rpm, or 8,000 rpm optionally.
03
The table is 6,000 x 3,600 mm (236.2 x 141.7 in). X travel is 6,000 mm (236.2 in), Y travel 4,100 mm (161.4 in) and Z travel 1,000 mm, with the same 1,200 mm option as on the Aero-636B.
04
The Aero-541B at 5,000 mm (196.9 in) of X travel, the Aero-841G at 8,000 mm (315.0 in) and the Aero-1041G at 10,000 mm (393.7 in). All have 4,100 mm of Y travel.
