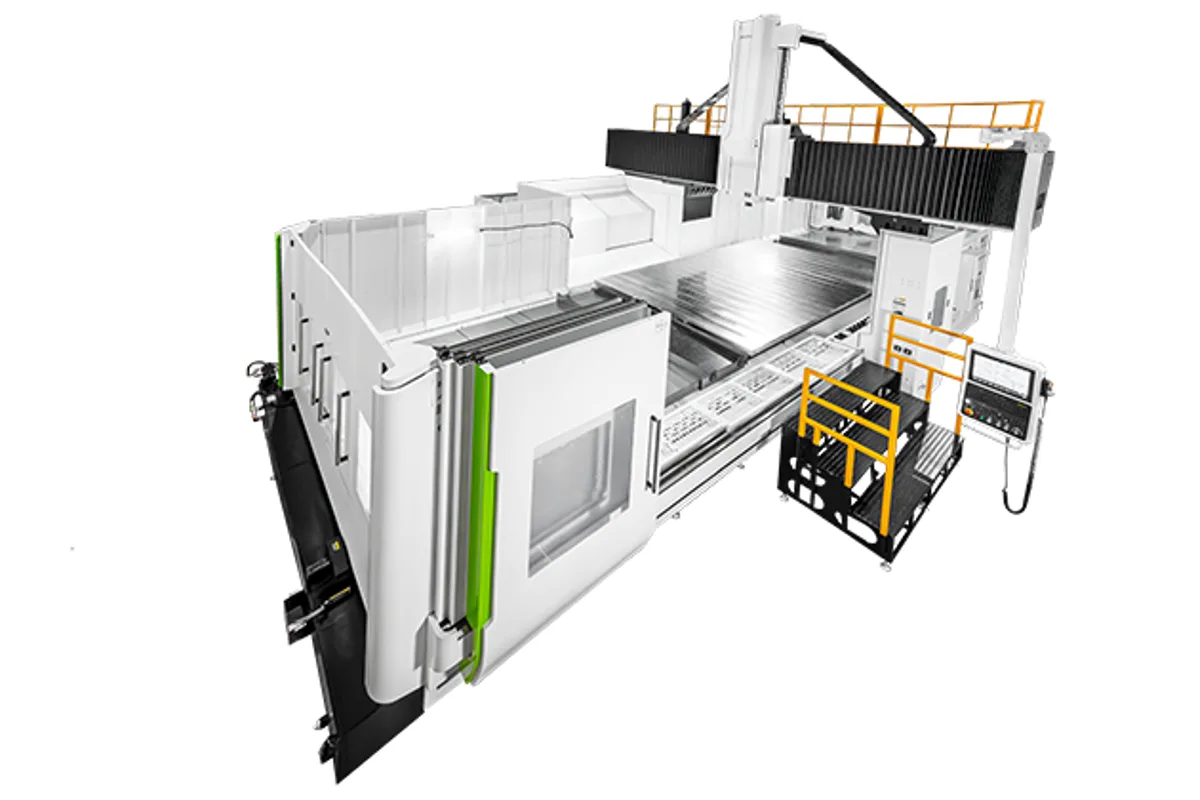

Hartford HSA-546AAC
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HSA-546AAC cost?
Price estimate
We do not have a price for the Hartford HSA-546AAC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford HSA-546AAC is a five-metre five-face double-column machining center built around a magazine of machining heads. Hartford's AAC multi-head magazine holds 3 to 5 heads, and the machine supports an automatic universal head, an automatic 90° angle head and an automatic extension head.
The envelope is the widest in the family. Y travel is 4,600 mm (181.1 in) over a 5,000 x 3,000 mm (196.9 x 118.1 in) table, with 5,000 mm (196.9 in) of X travel and a load rating of 21,000 kg (46,296 lb). The HSA-536EAY has the same table with 4,400 mm (173.2 in) of Y.
Head storage is described in some detail. Each station has protective covers and independent storage for the angle heads, and an independent movable door that opens only during head exchange to keep chips out. The head exchange mechanism is integrated with a vertical and horizontal tool-changing system.
A job that alternates between top-face milling, side drilling and deep reach can therefore keep all three head types on the machine and switch between them in the program. The spindle is #50, a gear head at 6,000 rpm (8,000 rpm optional) or a 10,000 rpm hybrid, with 18.5 / 22 kW or 30 / 35 kW. Z travel is 1,000 mm, optionally 1,200 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 5,000 x 3,000 mm (196.9 x 118.1 in) |
| Max Table Load | 21,000 kg (46,296 lb) |
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 4,600 mm (181.1 in) |
| Z Axis Travel | 1,000 (1,200) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000) rpm |
| Spindle Speed Hybrid | 10,000 rpm |
| Tool Capacity | A: 32 (40 / 60) pcs |
| Tool Shank | BT-50 (CAT-50 / DIN50 / BBT-50) |
| Spindle Motor Power | 18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- AAC multi-head magazine with 3 to 5 head stations
- Supports universal, 90° angle and extension heads, all automatic
- 4,600 mm (181.1 in) of Y travel, the largest Y figure in the HSA five-face tables
- Head stations closed by doors that open only during head exchange
Limitations
- Offered in one size only, with a 5,000 x 3,000 mm table
- 21,000 kg (46,296 lb) rating is modest for the table area
- The table gives no T-slot row for this model
Best For
Frequently Asked Questions
01
Hartford uses AAC for its multi-head magazine. The page states that the AAC multi-head magazine supports 3 to 5 head stations and has protective covers with independent storage for angle heads.
02
An automatic universal head, an automatic 90° angle head and an automatic extension head, according to Hartford. They are exchanged by an automatic head exchange mechanism integrated with the vertical and horizontal tool-changing system.
03
X 5,000 mm (196.9 in), Y 4,600 mm (181.1 in) and Z 1,000 mm, with 1,200 mm optional. The table is 5,000 x 3,000 mm (196.9 x 118.1 in) and rated for 21,000 kg (46,296 lb).
04
Both have a 5,000 x 3,000 mm table for 21,000 kg. The HSA-536EAY has 4,400 mm (173.2 in) of Y travel; the HSA-546AAC has 4,600 mm (181.1 in) and is the model Hartford describes with the AAC multi-head magazine.
