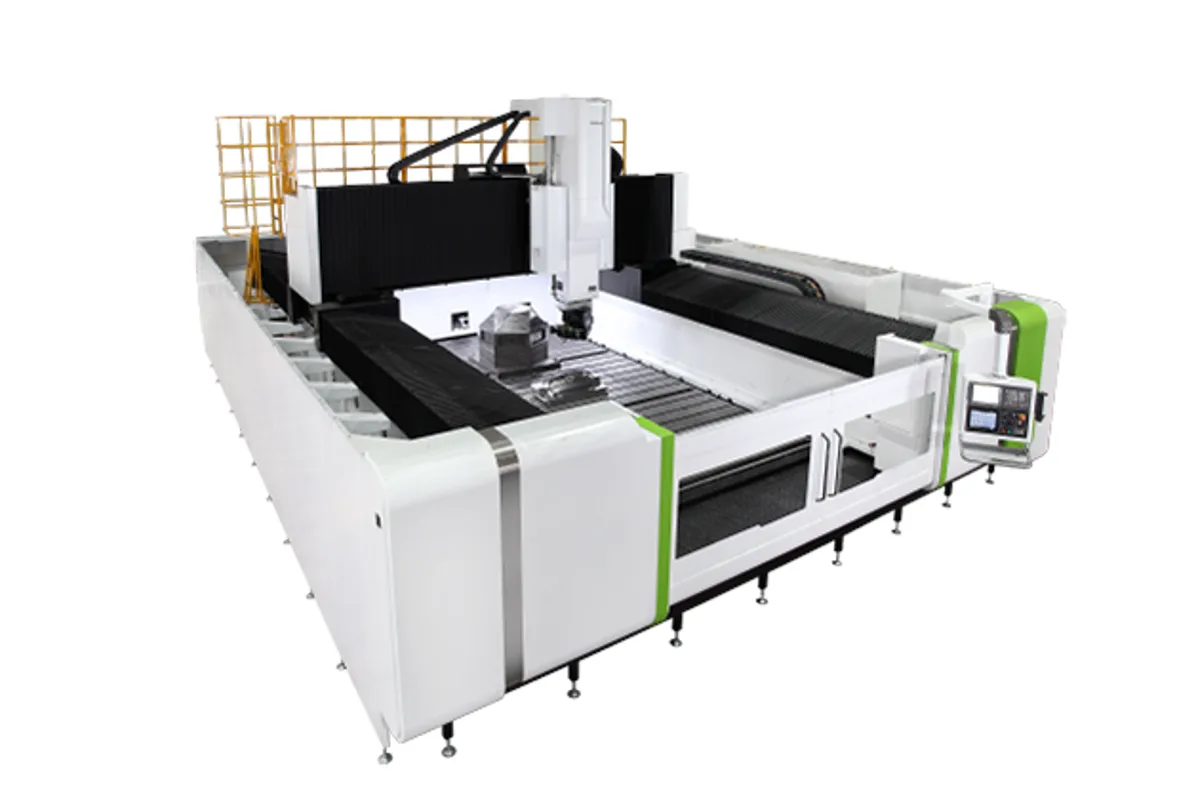

Hartford Aero-1041G
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-1041G cost?
Price estimate
We do not have a price for the Hartford Aero-1041G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford Aero-1041G is a ten-metre gantry type 5-faced machining center with 4,100 mm (161.4 in) of Y travel. Its table is 10,000 x 3,600 mm (393.7 x 141.7 in) and its X travel 10,000 mm (393.7 in).
What does a shop get from the standard machine, and what has to be added? The spec table answers part of that. Standard: 1,000 mm of Z travel, a #50 gear head at 6,000 rpm, BT-50 shanks, an S type magazine for 30 tools or an A type for 40. Optional: 1,200 mm of Z, an 8,000 rpm gear head, 40 tools in the S type or 60 in the A type, and CAT50, DIN69871A or BBT50 shanks. Hartford's text adds the i-Tech hybrid 10,000 rpm spindle and extra head magazines to the options.
The heads themselves are the open question. Hartford states that the machine can operate with a universal head, a 90 degree head and an extension head, but the table does not say which are included, so have that itemised.
Sizing within the series is straightforward. The Aero-1036G is the narrower ten-metre model, with 3,600 mm (141.7 in) of Y, and the Aero-841G has this cross section at 8,000 mm (315.0 in) of X. The table rating is 5,000 kg/m² on all of them.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 10,000 x 3,600 mm (393.7 x 141.7 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 10,000 mm (393.7 in) |
| Y Axis Travel | 4,100 mm (161.4 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,000 x 3,600 mm (393.7 x 141.7 in) table with 4,100 mm (161.4 in) of Y travel
- Table rating of 5,000 kg/m² over the whole table
- Clear list of options: Z travel, gear-head speed, magazine size, shank standard
- Hybrid 10,000 rpm spindle available
Limitations
- Which angular heads are included is not stated in the table
- Several key items, such as 1,200 mm Z and the 8,000 rpm gear head, are options
- No power or torque row for the standard spindle
Best For
Frequently Asked Questions
01
Standard are 1,000 mm of Z travel, the 6,000 rpm gear head, BT-50 shanks and 30 or 40 tool magazines. Options are 1,200 mm of Z, the 8,000 rpm gear head, larger magazines of 40 or 60 tools, other shank standards and the 10,000 rpm hybrid spindle.
02
10,000 mm (393.7 in) in X and 4,100 mm (161.4 in) in Y. The table is 10,000 x 3,600 mm (393.7 x 141.7 in), rated at 5,000 kg/m².
03
Hartford states the machine can operate with an auto universal head, a 90 degree head and an extension head and that additional head magazines are available. The table does not list which heads come with the base machine, so ask.
04
The Aero-1036G has a 10,000 x 3,100 mm (393.7 x 122.0 in) table and 3,600 mm (141.7 in) of Y travel. The Aero-1041G has a 3,600 mm wide table and 4,100 mm of Y. Everything else matches.
