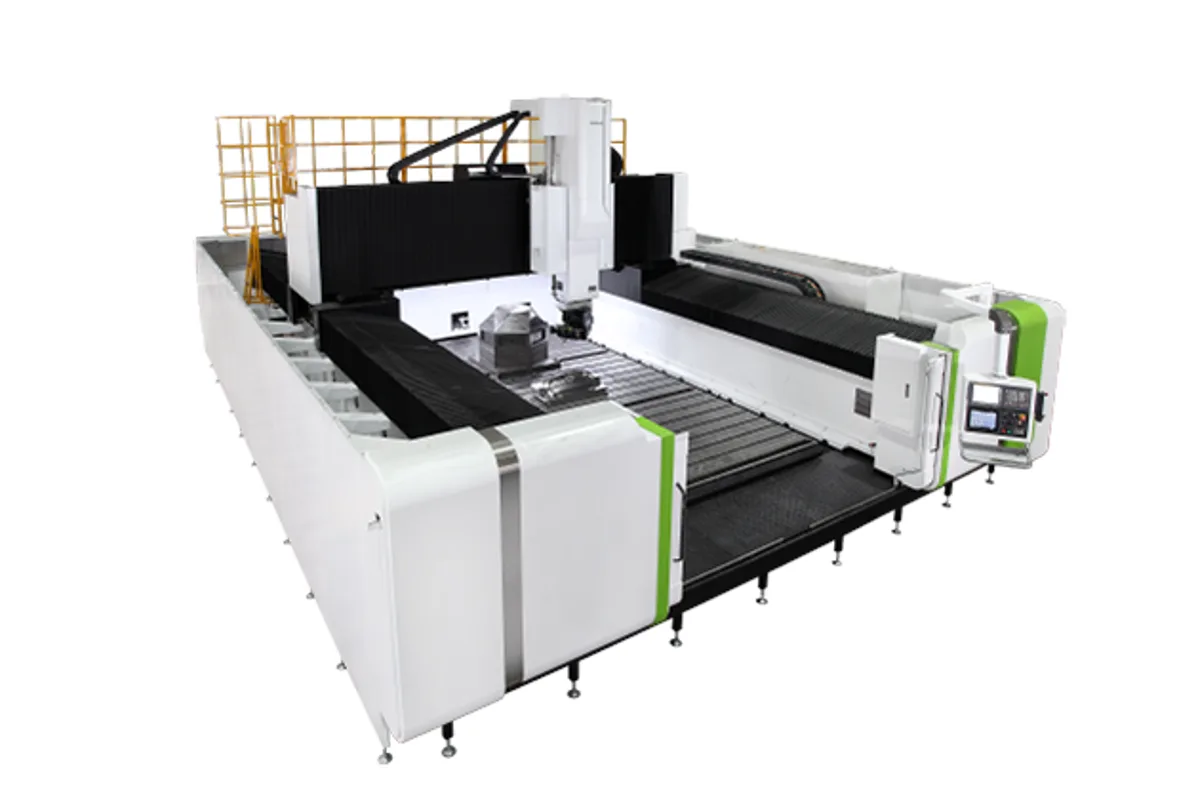

Hartford Aero-636B
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-636B cost?
Price estimate
We do not have a price for the Hartford Aero-636B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford Aero-636B is a six-metre gantry type 5-faced machining center with a 6,000 x 3,100 mm (236.2 x 122.0 in) table, 6,000 mm (236.2 in) of X travel and 3,600 mm (141.7 in) of Y travel. Among the four B models at this length it is the second narrowest.
Its closest relative is not a B model at all. The Aero-631G has the identical table but only 3,100 mm (122.0 in) of Y, so its spindle stops at the table edge. On the 636B the Y axis runs past the table on both sides, and that is what lets an angular head work down the long flanks of a part as wide as the table. For true five-face machining of full-size parts, this is the one of the pair to choose.
Hartford offers an optional spindle that it makes itself, the i-Tech hybrid, at 10,000 rpm. It is described with a double cooling cycle design, one circuit for the motor and one for the spindle, and a built-in motor rated at a maximum of 35 kW and 600 N-m. The standard spindle is a #50 gear head at 6,000 rpm, or 8,000 rpm as an option.
The table is rated at 5,000 kg/m². Z travel is 1,000 mm, with 1,200 mm optional, on four linear guideways.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 6,000 x 3,100 mm (236.2 x 122.0 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 3,600 mm (141.7 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,600 mm (141.7 in) of Y travel over a 3,100 mm wide table
- 6,000 x 3,100 mm (236.2 x 122.0 in) table rated at 5,000 kg/m²
- Optional hybrid spindle with separate cooling for motor and spindle
- Z axis on four linear guideways
Limitations
- Standard gear head is limited to 6,000 rpm
- The hybrid spindle and the 1,200 mm Z travel are both options
- Wider parts need the Aero-641B or Aero-646B
Best For
Frequently Asked Questions
01
Y travel and magazine. The Aero-636B has 3,600 mm (141.7 in) of Y travel and S or A type magazines for up to 60 tools. The Aero-631G has 3,100 mm (122.0 in) of Y and a 32 or 40 tool magazine. The table is 6,000 x 3,100 mm on both.
02
Table 6,000 x 3,100 mm (236.2 x 122.0 in), X travel 6,000 mm, Y travel 3,600 mm (141.7 in), Z travel 1,000 mm or 1,200 mm, table load 5,000 kg/m², spindle taper #50.
03
Hartford describes a double cooling cycle design for motor and spindle. The i-Tech hybrid spindle is optional, runs at 10,000 rpm and has a built-in motor with a stated maximum of 35 kW and 600 N-m.
04
Yes. The Aero-636BL-5X shares the table and the X and Y travels and lists HSK-A63 and HSK-A100 spindles at 24,000 rpm and 12,000 rpm.
