Hartford Aero-841G
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-841G cost?
Price estimate
We do not have a price for the Hartford Aero-841G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

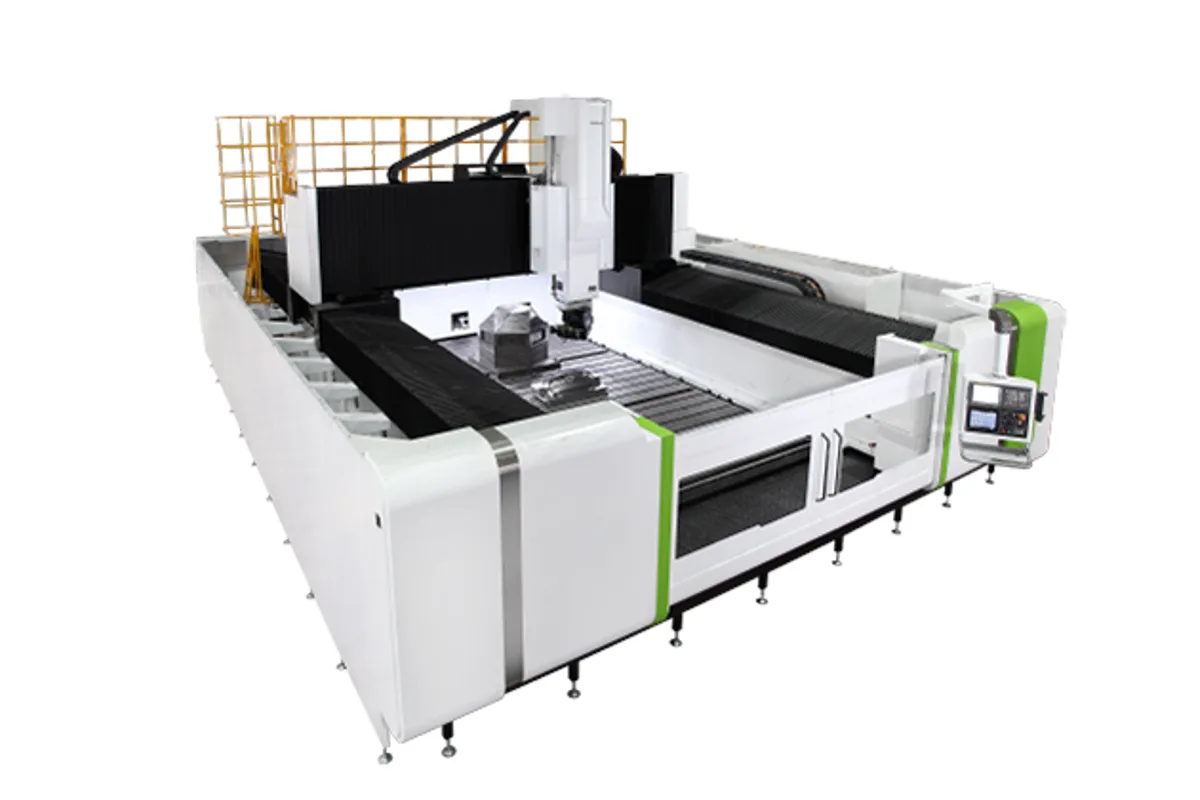

The Hartford Aero-841G sits in the middle of the eight-metre Aero models. It is a gantry type 5-faced machining center with a table of 8,000 x 3,600 mm (315.0 x 141.7 in), 8,000 mm (315.0 in) of X travel and 4,100 mm (161.4 in) of Y travel.
On an eight-metre part the head changer earns its place. A typical cycle mills the top with the vertical spindle, takes a 90 degree head for the long sides, swaps to a universal head for inclined pads and perhaps to an extension head for a deep pocket. Hartford's changer does this without the operator: heads sit in an independent magazine under a protective cover, a hydraulic cylinder makes the changeover fast, and additional head magazines are available if three positions are not enough.
Each head magazine has its own moving door that opens only during a changeover, to keep debris off the heads' mounting faces.
Table load is 5,000 kg/m². Z travel is 1,000 mm with 1,200 mm optional. The spindle is #50, as a gear head at 6,000 rpm or 8,000 rpm, or optionally as the 10,000 rpm i-Tech hybrid. For narrower work the Aero-836G has an 8,000 x 3,100 mm (315.0 x 122.0 in) table.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 8,000 x 3,600 mm (315.0 x 141.7 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 8,000 mm (315.0 in) |
| Y Axis Travel | 4,100 mm (161.4 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Head changer with hydraulic changeover and independent head magazine
- Additional head magazines available
- 8,000 x 3,600 mm (315.0 x 141.7 in) table with 4,100 mm (161.4 in) of Y travel
- Table rated at 5,000 kg/m²
Limitations
- Head positioning is indexed at 1 degree, not continuous
- Z travel of 1,000 mm as standard
- Gear-head power is not given in Hartford's table
Best For
Frequently Asked Questions
01
Heads are stored in an independent head magazine with a protective cover. A hydraulic cylinder performs the changeover, and each magazine has a moving door that opens only while a head is being changed. Hartford offers additional head magazines.
02
An auto universal head, a 90 degree head and an extension head, according to Hartford. The C axis of the angular head indexes in 1 degree steps.
03
Table 8,000 x 3,600 mm (315.0 x 141.7 in), X travel 8,000 mm, Y travel 4,100 mm (161.4 in), Z travel 1,000 mm or 1,200 mm. The table rating is 5,000 kg/m².
04
The Aero-846G is the widest eight-metre model, with an 8,000 x 4,100 mm (315.0 x 161.4 in) table and 4,600 mm (181.1 in) of Y travel. Other rows of the two tables match.
