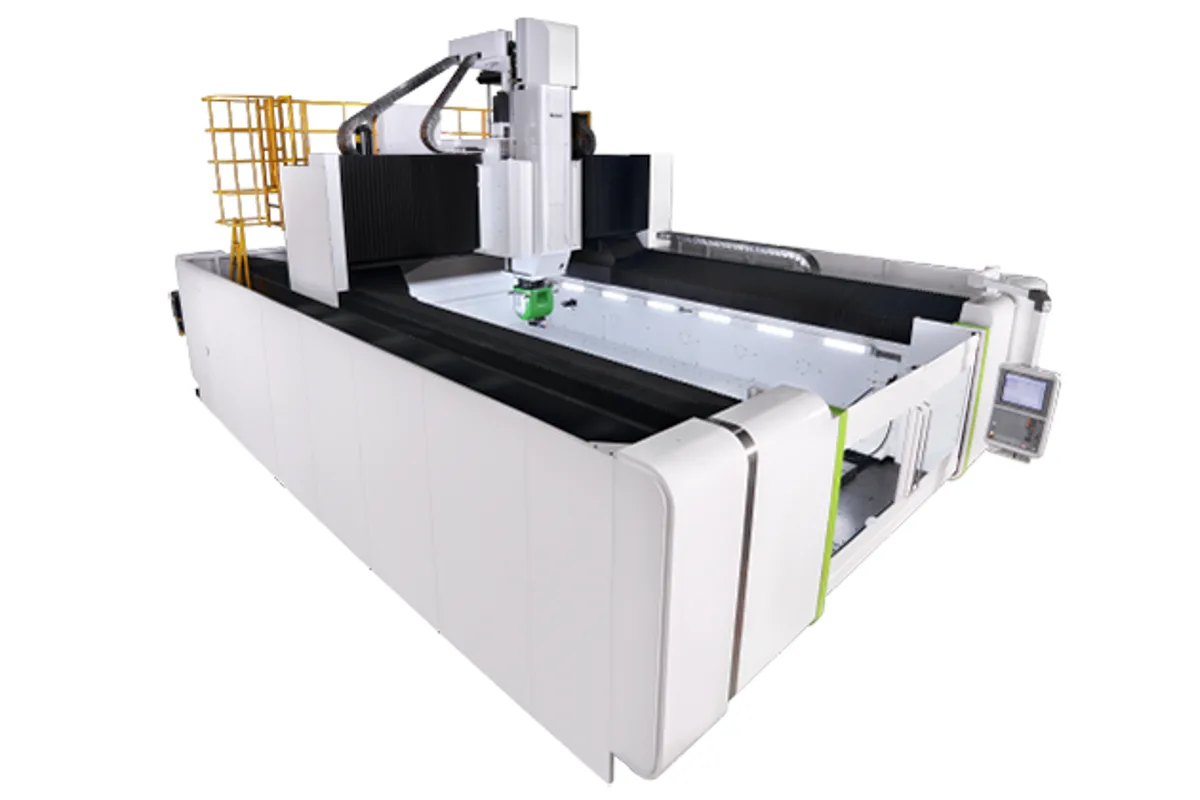

Hartford Aero-632B
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-632B cost?
Price estimate
We do not have a price for the Hartford Aero-632B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Six metres long and 2,700 mm wide at the table, the Hartford Aero-632B is the slim model among the six-metre Aero gantry type 5-faced machining centers. X travel is 6,000 mm (236.2 in), Y travel 3,200 mm (126.0 in), and the table measures 6,000 x 2,700 mm (236.2 x 106.3 in).
It carries the cross section of the Aero-432B out to six metres. The Aero-432B has the same Y travel and table width with 4,000 mm (157.5 in) of X. There is no five-metre model of this width, so the step is two metres.
Long and heavy is the brief: machine tool beds, press brake frames, large injection mould bases, steel structures for energy equipment. Per square metre the table takes 5,000 kg, compared with 3,000 kg/m² on Hartford's larger moving-column MCW-8550, so the Aero is the denser-rated of the two fixed-table designs.
The table shows a #50 gear head at 6,000 rpm (8,000 rpm optional), 1,000 mm of Z travel with a 1,200 mm option, and S type or A type magazines for 30 to 60 tools. Side faces are machined with heads from the automatic changer, which Hartford combines with a vertical and horizontal tool change system.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 6,000 x 2,700 mm (236.2 x 106.3 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) of X travel on a slim 2,700 mm wide table
- Table rated at 5,000 kg/m², stated per square metre
- Head cabin combined with vertical and horizontal tool change
- S type and A type magazines from 30 to 60 tools
Limitations
- Narrowest six-metre Aero; the Aero-636B is 3,100 mm (122.0 in) wide
- No five-metre model on this cross section
- Z travel is 1,000 mm as standard
Best For
Frequently Asked Questions
01
X 6,000 mm (236.2 in), Y 3,200 mm (126.0 in), Z 1,000 mm with 1,200 mm optional. The table is 6,000 x 2,700 mm (236.2 x 106.3 in) and rated at 5,000 kg/m².
02
The Aero-632B table is rated at 5,000 kg/m². The MCW-8550, a moving-column machine with a fixed table, is rated at 3,000 kg/m². Both ratings are per area with no total stated.
03
04
Hartford describes an automatic exchange head cabin combined with a vertical and horizontal tool change system. Heads sit in an independent magazine under a protective cover and are exchanged by a hydraulic cylinder.
