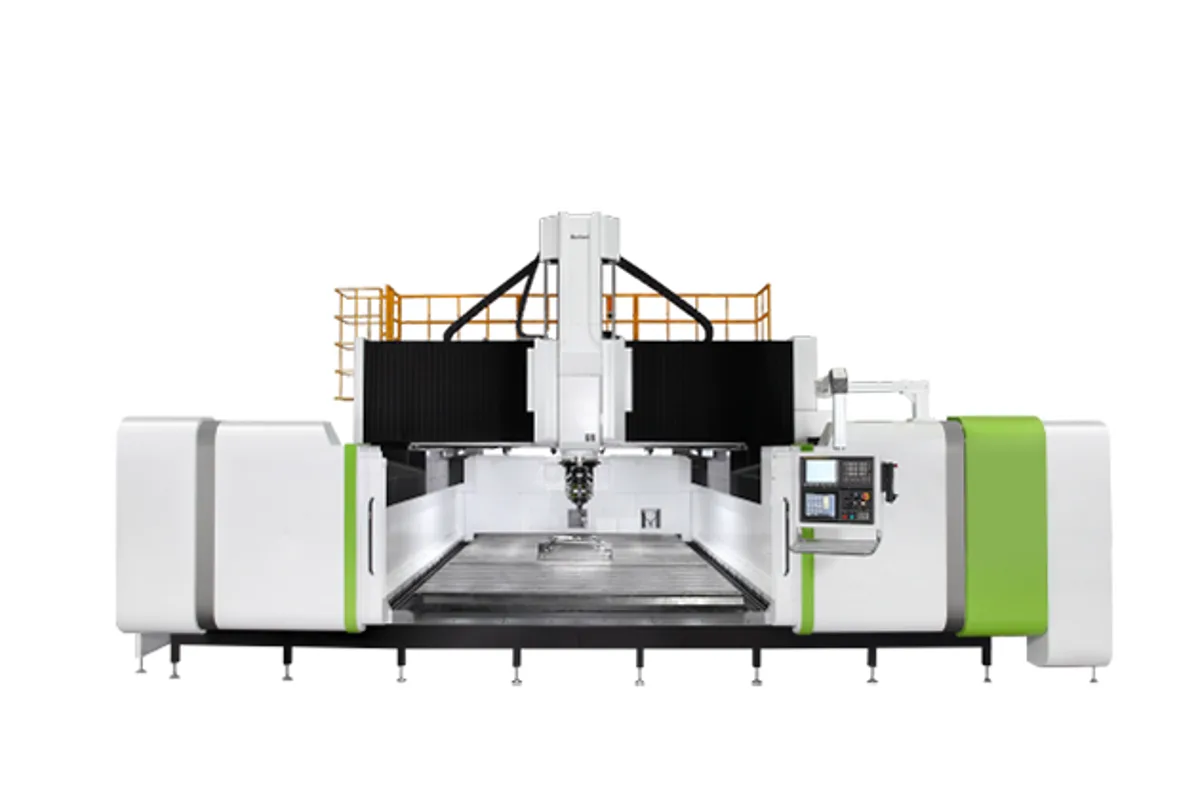

Hartford Aero-1036G-5X
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-1036G-5X cost?
Price estimate
We do not have a price for the Hartford Aero-1036G-5X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford Aero-1036G-5X is a ten-metre gantry type 5-axis machining center in the narrowest Aero cross section. X travel is 10,000 mm (393.7 in), Y travel 3,600 mm (141.7 in), Z travel 1,100 mm (1,300 mm optional), and the table 10,000 x 3,100 mm (393.7 x 122.0 in).
Ten metres of travel with a tilting, rotating spindle is equipment for a short list of parts: wing spars and skins, helicopter blades and their moulds, rail vehicle roof and side profiles, long composite tools. They are slender, so the 3,100 mm table is seldom the constraint, and they are usually cut at high speed. The HSK-A63 spindle runs 24,000 rpm.
Traverse time counts on a part this long. Hartford's rack and pinion X drive, used on axes of 8 meters and more, is stated to reach a feed rate of 50 m/min with no backlash and low noise. The gantry runs on four linear guideways, two per side.
For heavier cutting the alternative spindle is an HSK-A100 at 12,000 rpm, and the B and C axes of the Cytec head have a maximum torque output of 1,000 Nm. The 5-faced Aero-1036G shares the table and has a #50 gear head at 6,000 rpm.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 10,000 x 3,100 mm (393.7 x 122.0 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 10,000 mm (393.7 in) |
| Y Axis Travel | 3,600 mm (141.7 in) |
| Z Axis Travel | 1,100 (opt 1,300) mm |
| Spindle Taper | HSK-A63 / HSK-A100 |
| Spindle Speed HSK A63 | 24,000 rpm |
| Spindle Speed HSK A100 | 12,000 rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,000 mm (393.7 in) of X travel with a five-axis head
- X feed rate up to 50 m/min by rack and pinion
- HSK-A63 spindle at 24,000 rpm; HSK-A100 at 12,000 rpm
- Cytec head with 1,000 Nm on the B and C axes
Limitations
- Y travel of 3,600 mm (141.7 in) is the narrowest at ten metres
- No spindle power is stated for this model
- Z travel is 1,100 mm as standard
Best For
Frequently Asked Questions
01
X travel is 10,000 mm (393.7 in) and the table is 10,000 x 3,100 mm (393.7 x 122.0 in). Y travel is 3,600 mm (141.7 in) and Z travel 1,100 mm, or 1,300 mm as an option.
02
Hartford states a feed rate up to 50 m/min for the rack and pinion X drive, together with no backlash, low noise and improved positioning accuracy. The drive is used on X axes of 8 meters and more.
03
HSK-A63 at 24,000 rpm and HSK-A100 at 12,000 rpm, oil-air lubricated according to Hartford. The table lists no power or torque for either.
04
The Aero-1036G, which has the same 10,000 x 3,100 mm table and X and Y travels, with a #50 gear head at 6,000 rpm, 1,000 mm of Z travel and indexing angular heads.
