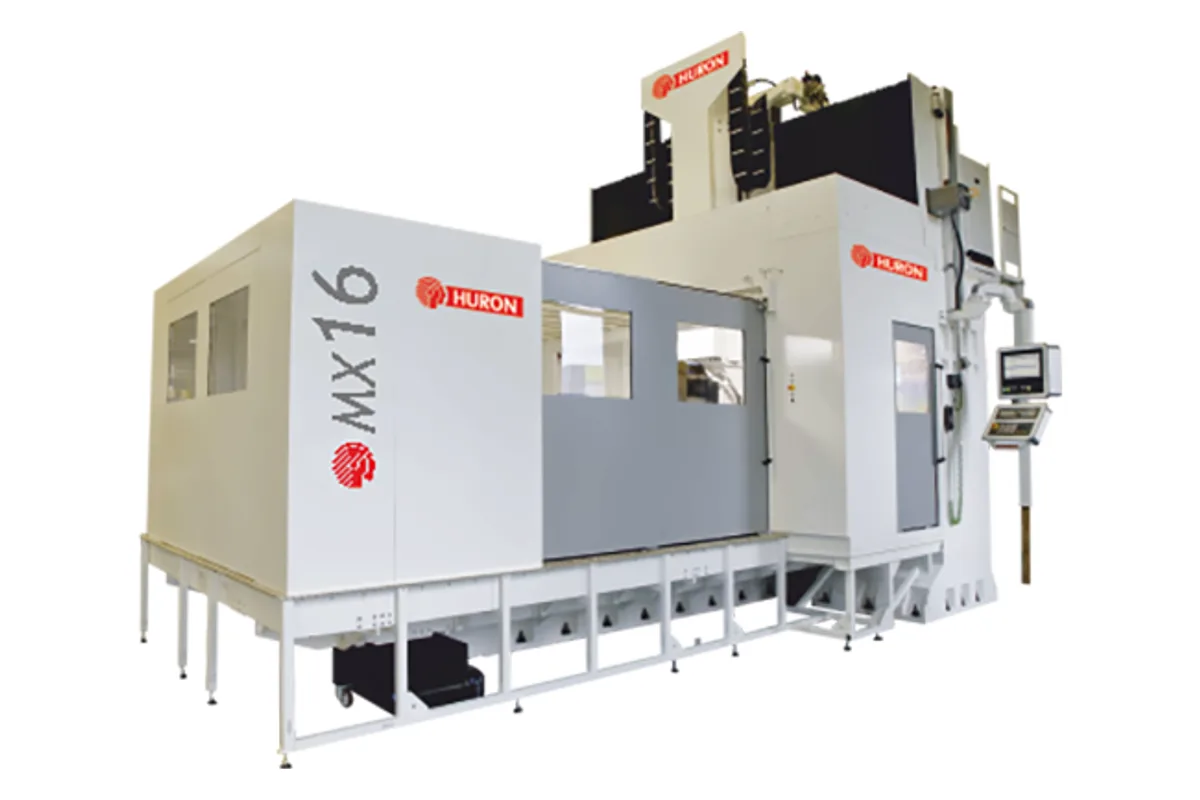

Huron MX 16 MT
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 16 MT cost?
Price estimate
We do not have a price for the Huron MX 16 MT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron MX 16 MT is a mill-turn centre for parts up to 5,000 kg (11,023 lb), with a 1,650 mm table that turns at 250 rpm inside a 2,300 x 2,300 x 1,250 mm (90.6 x 90.6 x 49.2 in) working volume.
Those travels are far larger than the table. A 2,300 mm stroke in X and Y over a 1,650 mm table means the universal head can stand well clear of the rim, turn an outside diameter with the spindle horizontal, and still swing in over the centre for boring and facing. On smaller mill-turn machines the travels barely exceed the table and such access has to be planned around.
At 250 rpm the table matches the MX 12 MT for speed while carrying 5,000 kg against 3,000 kg. The spindle is common to the big MX machines: HSK 100-A, 43 kW, 415 Nm, 10,000 rpm. Tool weight goes up to 30 kg.
One limit is diameter. Huron's table gives 120 mm as the maximum tool diameter for the MX 16, where the MX 12 MT lists 250 mm. Buyers planning large face mills or special turning heads should raise this with Huron. Tool length is 650 mm and the magazine has 60 housings. Positioning is 0.007 mm on the linear axes. Rapids are 40 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,300 mm (90.6 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse Xyz | 40 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Milling/Turning |
| Table Size | Ø 1,650 mm (Ø 65.0 in) |
| Max Table Load | 5,000 kg (11,023 lb) |
| C Axis Speed | 250 rpm |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | HSK 100-A |
| Spindle Motor Power | 43 kW (57.7 hp) |
| Spindle Torque | 415 Nm (306.1 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in) |
| Max Tool Weight | 30 kg (66 lb) |
| Max Tool Length | 650 mm (25.6 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 8,370 mm (329.5 in) without APC; 8,411 mm (331.1 in) with APC |
| Machine Depth | 10,000 mm (393.7 in) without APC; 10,020 mm (394.5 in) with APC |
| Machine Height | 6,650 mm (261.8 in) without APC; 6,631 mm (261.1 in) with APC |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,650 mm turning table at 250 rpm with a 5,000 kg (11,023 lb) load
- 2,300 mm X and Y travels give the head room around the table
- 1,250 mm of Z for tall turned parts
- 43 kW, 415 Nm HSK 100-A spindle
- 30 kg tool weight limit and 650 mm tool length
Limitations
- Maximum tool diameter is listed as 120 mm
- Table load is half that of the MX 16 M
- Height of roughly 6,650 mm, depending on APC
- Spindle speed limited to 10,000 rpm
Best For
Frequently Asked Questions
01
A milling/turning table of 1,650 mm diameter. It carries 5,000 kg (11,023 lb) and rotates at up to 250 rpm, the same table speed as the MX 12 MT.
02
2,300 mm in X, 2,300 mm in Y and 1,250 mm in Z, with a rapid feedrate of 40 m/min. The head's A axis tilts from -45° to +180° at 100 rpm.
03
Yes, the MX 20 MT, which has 3,000 x 3,100 x 1,600 mm travels and a 2,200 mm table for 10,000 kg, turning at 120 rpm, with 20 m/min rapids.
04
HSK 100-A tools up to 120 mm in diameter, 650 mm long and 30 kg (66 lb). The automatic tool changer has 60 housings.
