Hartford Aero-846G

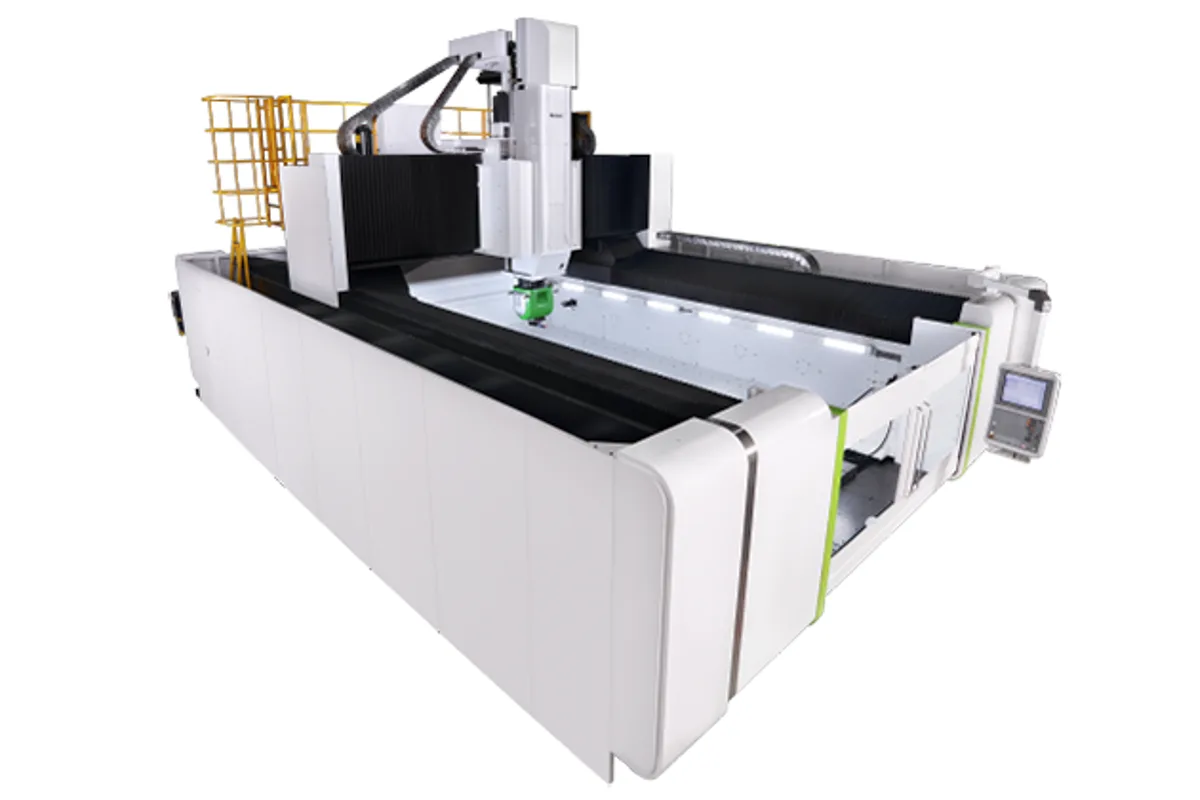

Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-846G cost?
Price estimate
We do not have a price for the Hartford Aero-846G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Eight metres by 4,100 mm of table, with 4,600 mm (181.1 in) of Y travel: the Hartford Aero-846G is the widest eight-metre gantry type 5-faced machining center in the Aero series. X travel is 8,000 mm (315.0 in) and the table measures 8,000 x 4,100 mm (315.0 x 161.4 in).
Hartford has another large machine with an eight-metre fixed table, and the two should be compared. The MCW-8550 has a table of 8,000 x 4,000 mm (315.0 x 157.5 in), 5,500 mm (216.5 in) of Y travel and a cross-beam that moves vertically, with a table rating of 3,000 kg/m². The Aero-846G has less Y travel and no moving beam but is rated at 5,000 kg/m².
So the Aero is the choice for dense parts of moderate height, and the MCW for taller or wider ones. With Z travel of 1,000 mm, or 1,200 mm as an option, the Aero-846G fits plate-like and block-like work: die sets, mould halves, bedplates, large flanges.
The spindle is a #50 gear head at 6,000 rpm, with 8,000 rpm optional. Hartford's 10,000 rpm i-Tech hybrid spindle is also optional and has a built-in motor of up to 35 kW and 600 N-m. Magazines hold from 30 to 60 tools.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 8,000 x 4,100 mm (315.0 x 161.4 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 8,000 mm (315.0 in) |
| Y Axis Travel | 4,600 mm (181.1 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 8,000 x 4,100 mm (315.0 x 161.4 in) table rated at 5,000 kg/m²
- 4,600 mm (181.1 in) of Y travel
- Hybrid spindle option with up to 35 kW and 600 N-m
- Five-face machining with automatic head change
Limitations
- No vertically moving cross-beam, unlike the MCW-8550
- Z travel of 1,000 mm, or 1,200 mm, restricts tall parts
- Y travel is below the MCW-8550's 5,500 mm (216.5 in)
Best For
Frequently Asked Questions
01
The MCW-8550 has an 8,000 x 4,000 mm (315.0 x 157.5 in) table at 3,000 kg/m², 5,500 mm (216.5 in) of Y travel and a W-axis cross-beam. The Aero-846G has an 8,000 x 4,100 mm table at 5,000 kg/m² and 4,600 mm (181.1 in) of Y, without a W axis.
02
8,000 mm (315.0 in) in X, 4,600 mm (181.1 in) in Y, and 1,000 mm in Z with 1,200 mm optional. The table is 8,000 x 4,100 mm (315.0 x 161.4 in).
03
Hartford states a built-in motor maximum of 35 kW and 600 N-m for the optional i-Tech hybrid spindle, which runs at 10,000 rpm. No torque figure is given for the standard gear head.
04
Yes. The Aero-1046G has a 10,000 x 4,100 mm (393.7 x 161.4 in) table with 10,000 mm (393.7 in) of X travel and the same 4,600 mm of Y.
