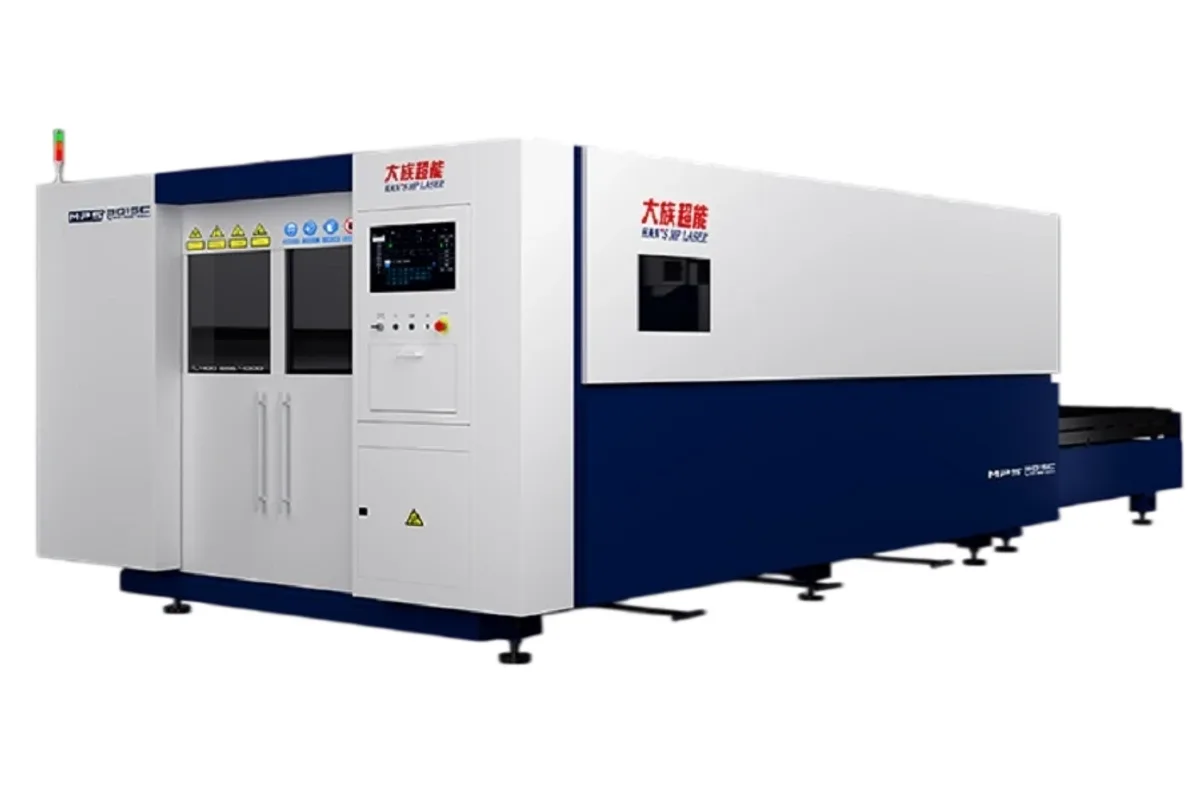

Han's Laser MPS-C Series
Image: hanslaser.net, Han's Laser
Key Specifications
Accuracy
Repeatability
cutting area
max running speed
max running acceleration
max table load
How much does the Han's Laser MPS-C Series cost?
Price estimate
We do not have a price for the Han's Laser MPS-C Series that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Han's Laser MPS-C Series is a fiber laser cutting machine for sheet metal with a 3,000 × 1,500 mm (118.1 × 59.1 in) processing area. Han's Laser publishes one data sheet for it, with a single format and no individual model codes, so this page describes the series as the maker prints it.
The figures put it in the general-purpose class. Maximum running speed is 120 m/min with 1.2 G of acceleration. Location accuracy is ±0.05 mm/m and repeat location accuracy ±0.03 mm. The worktable carries 700 kg (1,543 lb). Those numbers match the MPS-3015D almost line for line, and a buyer looking at one should ask Han's Laser how the two differ in practice.
Where the tables part is the installation. The MPS-C is given as 8.8 × 2.25 × 2.2 m (346.5 × 88.6 × 86.6 in) and about 5.5 T. That is a good deal longer than the bed, which is what a machine with a second table position in line looks like, though the page does not describe the table arrangement.
The body is a welded structure and the gantry is die-cast aluminium, chosen by the maker for strength at low moving weight. Control is a digital system developed in-house. Han's Laser mentions three kinds of auxiliary gas for selection. The power supply is 380 V / 50 Hz, which matters outside regions with that mains standard. No laser power is listed.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 3,000 × 1,500 mm (118.1 × 59.1 in) |
| Positioning Accuracy | ±0.05 mm/m |
| Repeatability | ±0.03 mm |
| Max Running Speed | 120 m/min |
| Max Running Acceleration | 1.2 G |
| Max Table Load | 700 kg (1,543 lb) |
| Power Requirement | 380 V / 50 Hz |
| Machine Weight | About 5.5 T |
| Machine Dimensions | 8.8 × 2.25 × 2.2 m (346.5 × 88.6 × 86.6 in) |
Specifications sourced from hanslaser.net — verified 2026-10-05
Strengths & Limitations
Strengths
- 120 m/min maximum running speed with 1.2 G acceleration
- Repeat location accuracy of ±0.03 mm
- Welded body with a die-cast aluminum gantry
- Three kinds of auxiliary gas for selection
Limitations
- Only one format is published: 3,000 × 1,500 mm (118.1 × 59.1 in)
- Worktable load is limited to 700 kg (1,543 lb)
- Power supply is given only as 380 V / 50 Hz
- No laser power or model code appears in the table
Best For
Frequently Asked Questions
01
Han's Laser describes it as suitable for sheet metal processing, kitchen appliances, sheet metal case cabinets, lighting advertising, electrical equipment and all kinds of metal material processing. The processing area is 3,000 × 1,500 mm (118.1 × 59.1 in) and the table takes 700 kg (1,543 lb).
02
The motion figures agree: 120 m/min, 1.2 g on the MPS-3015D and 1.2 G here, ±0.05 mm/m and ±0.03 mm, and a 700 kg (1,543 lb) table. The MPS-3015D is listed at 5,000 × 2,300 × 2,000 mm (196.9 × 90.6 × 78.7 in) and approx. 4.0 T; the MPS-C at 8.8 × 2.25 × 2.2 m (346.5 × 88.6 × 86.6 in) and about 5.5 T.
03
The table gives the power supply as 380 V / 50 Hz. It does not state the connected load, which depends on the laser source fitted. Buyers on a different mains standard should confirm what the maker can supply.
