BLM Group LT7

Q: How much does the BLM Group LT7 cost?

The price estimate for the BLM Group LT7 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/blm-group-lt7#price; the request is passed to BLM Group or an authorised dealer.

Specs verified 2026-10-05 · blmgroup.com Updated 2026-10-05

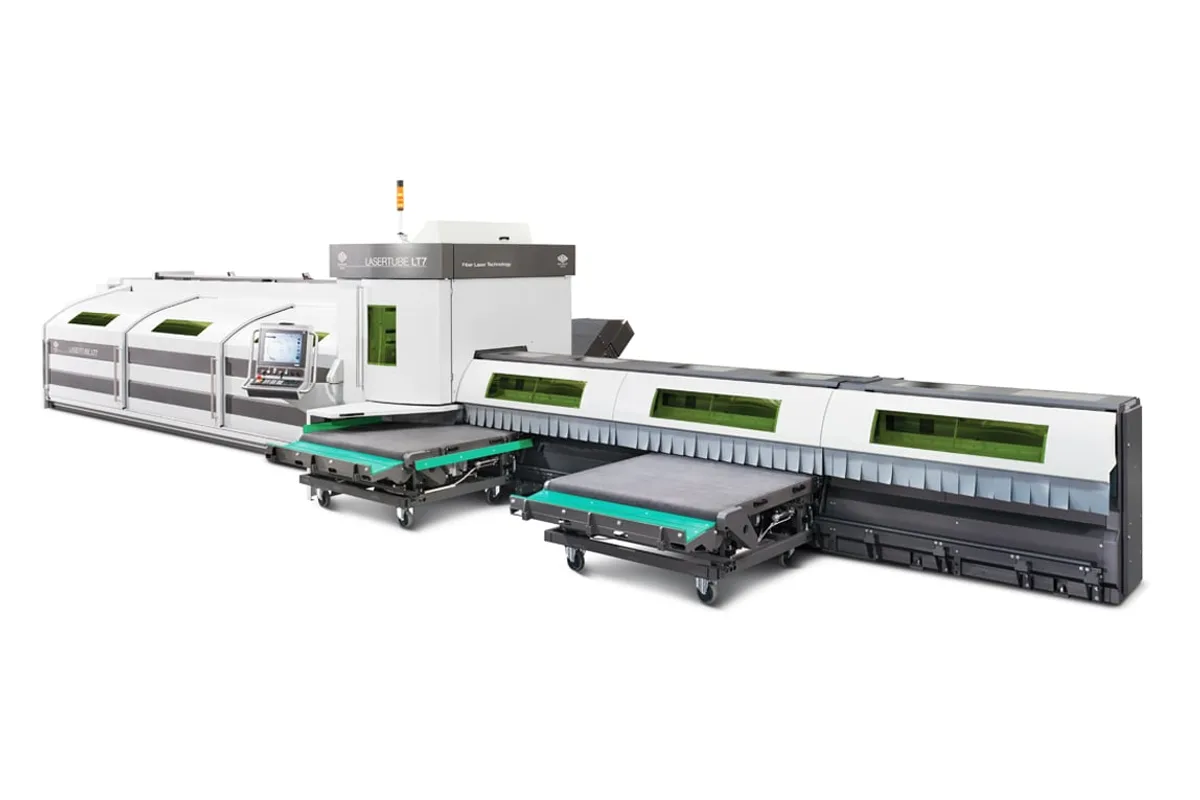

BLM Group LT7 3D tube laser cutting machine

Image: blmgroup.com, BLM Group

Key Specifications

laser source

Fiber source, 3-4-5 kW

cutting head

BLM GROUP 3D Tube Cutter

Bundle and single bar loading, fully automatic

min loadable length

6 ft 3 in (1.9 m)

max loadable length

21 ft (6.5 m) - 27 ft (8.5 m)

beam loading capacity

11,023 lb (5,000 kg)

How much does the BLM Group LT7 cost?

Price estimate

Uncertain

We do not have a price for the BLM Group LT7 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Section changes without a setup stop are what the BLM Group LT7 is built around. At the end of a batch the loader, spindle, steady rest and intermediate supports adapt on their own to the next section, and the 3D Tube Cutter head moves to the new job without anyone touching the line. The machine takes tube from 0.5" to 6" in diameter at up to 15.5 lb/ft, with a fiber source of 3-4-5 kW.

That diameter range matches the smaller 3D model. What changes is everything around the cut. Bar weight rises from the 12 lb/ft of the LT6, more laser power can be ordered, and the universal support templates adjust to the workpiece automatically instead of by hand. For a shop running many short batches, those points decide between the two.

Loading is by bundle or single bar, fully automatic, with a capacity of 11,023 lb (5,000 kg). Bars as short as 6 ft 3 in (1.9 m) are accepted. The longest are 21 ft (6.5 m) - 27 ft (8.5 m), depending on the version, and the unloading side is 15 ft (4.5 m) or 21 ft (6.5 m) or 27 ft (8.5 m). BLM builds the machine right-handed or left-handed. The point of the choice, in its words, is that a single operator can control two machines.

Plan the installation around 52,690 lb (23,900 kg), fume extraction included, and an average drawn power of 15 kW on O2 or 20 kW on N2. Further equipment described by BLM includes an automatic tower magazine for tube, an insertion unit that fits threaded inserts from M4 to M12 in the cutting cycle, and a tube cleaner that collects waste and fumes from inside the tube.

Full Specifications

Parameter	Value
Laser Source	Fiber source, 3-4-5 kW
Cutting Head	BLM GROUP 3D Tube Cutter
Loading	Bundle and single bar loading, fully automatic
Min Loadable Length	6 ft 3 in (1.9 m)
Max Loadable Length	21 ft (6.5 m) - 27 ft (8.5 m)
Beam Loading Capacity	11,023 lb (5,000 kg)
Unloading	Three programmable positions, rear conveyor belt and motorised front and rear collection benches
Unloading Length	15 ft (4.5 m) or 21 ft (6.5 m) or 27 ft (8.5 m)
Max Bar Weight	15.5 lb/ft
Machinable Materials	Mild steel, stainless steel, aluminum, copper, brass
Average Drawn Power O2	15 kW (O2 cutting gas)
Average Drawn Power N2	20 kW (N2 cutting gas)
Available Versions	Right or left
Machine Weight	52,690 lb (23,900 kg), including fume extraction

Specifications sourced from blmgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

Loader, spindle, steady rest and intermediate supports adapt automatically to the new section at the end of each batch
Fiber source of 3-4-5 kW with the BLM GROUP 3D Tube Cutter head
Loads bars from 6 ft 3 in (1.9 m), by bundle or single bar, with a capacity of 11,023 lb (5,000 kg)
Right or left versions, so a single operator can control two machines
Active Scan corrects the part program for twisted or deformed tubes
An automatic tower magazine and an insertion unit for threaded inserts from M4 to M12 are available

Limitations

Tube diameter stops at 6"; larger sections need the LT8.20
Machine weight of 52,690 lb (23,900 kg) including fume extraction means the floor should be checked first
Average drawn power rises from 15 kW with O2 to 20 kW with N2
Bar weight limit of 15.5 lb/ft, against 27 lb/ft on the LT8.20

Best For

Frequent section changes in small and medium batches 3D cutting of tube from 0.5" to 6" in diameter, up to 15.5 lb/ft Two-machine cells run by one operator, using right and left versions Parts that need threaded inserts fitted in the same cycle

Frequently Asked Questions

01 How does the LT7 differ from the LT6?

Both have a 3D head and the same 0.5" to 6" diameter range. The LT7 carries more: 15.5 lb/ft against 12 lb/ft on the LT6, and a fiber source of 3-4-5 kW where the LT6 lists 3 kW. Its supports and loader also adapt automatically when the section changes.

02 What lengths can the LT7 load and unload?

The minimum loadable length is 6 ft 3 in (1.9 m). The maximum loadable length is 21 ft (6.5 m) - 27 ft (8.5 m). The unloading length is 15 ft (4.5 m) or 21 ft (6.5 m) or 27 ft (8.5 m). BLM's advice is to choose both lengths according to production needs.

03 How heavy is the LT7 and how much power does it draw?

The machine weighs 52,690 lb (23,900 kg), a figure that includes fume extraction. Average drawn power is 15 kW with O2 cutting gas and 20 kW with N2 cutting gas. The table does not say which source rating those averages refer to.

04 What automation can be added to the LT7?

BLM describes an automatic tower magazine in which steel boxes of tube move to the machine and back at each production change, and says robotic loaders or automated storage systems can be integrated. Bars can also be loaded manually, with a bridge crane or with a forklift.

05 What do the right and left versions of the LT7 mean?

The machine is built right-handed or left-handed. Choosing one of each lets two machines be arranged so that a single operator controls both, which BLM gives as the purpose of the option.
