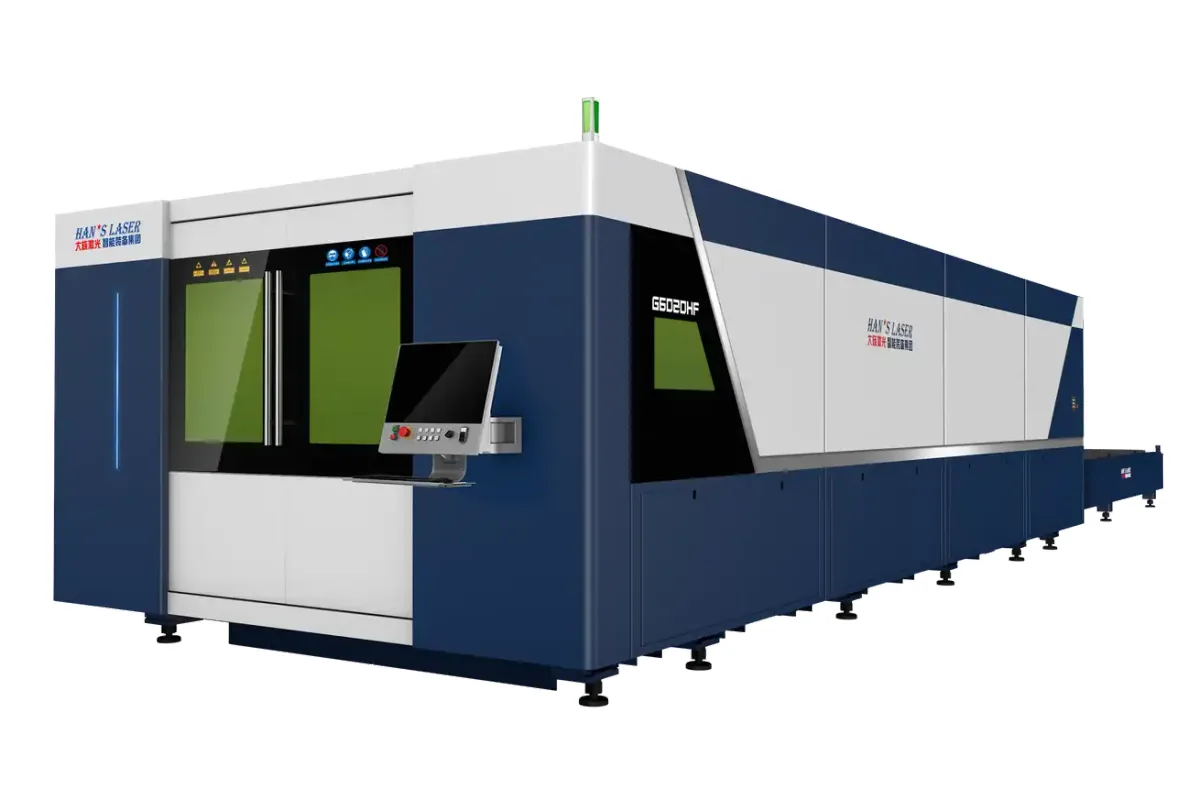

Han's Laser G6020HF
Image: hanslaser.net, Han's Laser
Key Specifications
Accuracy
Repeatability
cutting area
x axis travel
y axis travel
z axis travel
How much does the Han's Laser G6020HF cost?
Price estimate
We do not have a price for the Han's Laser G6020HF that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Han's Laser G6020HF is where the HF Expert series turns from a sheet cutter into a plate cutter. Its processing area is 6,000 × 2,000 mm (236.2 × 78.7 in), but the more telling figures are the table load of 5,600 kg (12,346 lb) and the Z-axis travel of 300 mm (11.8 in).
Compare them with the model below. The G4020HF carries 1,600 kg (3,527 lb) and has 120 mm (4.7 in) of Z. A table rated three and a half times higher is built for thick plate, and the taller Z gives the head room to clear heavy, uneven material. Han's Laser says the series supports 30kW cutting and stable thick-plate cutting, and this is the first size whose table is rated to match.
The heavier build costs some speed. Maximum positioning speed in X and Y is 160 m/min and acceleration 2.5 G, against 200 m/min and 2.8 G on the G4020HF. On plate that hardly matters. On thin sheet with dense nests it will show in the cycle time.
Accuracy is unchanged at ±0.03 mm/m positioning and ±0.02 mm repositioning. X travels 6,030 mm (237.4 in) and Y 2,020 mm (79.5 in). The control is Han's 901. The installation is long: 1,570 × 356 × 240 cm (618.1 × 140.2 × 94.5 in) overall, before the laser source and filtration are placed. No machine weight is published, so foundation loads have to come from the maker.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 6,000 × 2,000 mm (236.2 × 78.7 in) |
| X Axis Travel | 6,030 mm (237.4 in) |
| Y Axis Travel | 2,020 mm (79.5 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Positioning Accuracy | ±0.03 mm/m |
| Repeatability | ±0.02 mm |
| Max Positioning Speed Xy | 160 m/min |
| Max Acceleration Xy | 2.5 G |
| CNC Control | Han's 901 |
| Max Table Load | 5,600 kg (12,346 lb) |
| Machine Dimensions | 1,570 × 356 × 240 cm (618.1 × 140.2 × 94.5 in) |
Specifications sourced from hanslaser.net — verified 2026-10-05
Strengths & Limitations
Strengths
- Worktable rated for 5,600 kg (12,346 lb), suited to full sheets of thick plate
- 300 mm (11.8 in) of Z-axis travel, more than twice the 120 mm (4.7 in) of the G4020HF
- 6,000 × 2,000 mm (236.2 × 78.7 in) processing area for long parts
- Repositioning accuracy stays at ±0.02 mm
Limitations
- Slower than the G4020HF: 160 m/min and 2.5 G instead of 200 m/min and 2.8 G
- Overall length of 1,570 cm needs a long bay
- Machine weight and laser power are not stated in the table
- Width is limited to 2,000 mm; 2,500 mm sheet needs the G12025HF
Best For
Frequently Asked Questions
01
The maximum load capacity of the worktable is 5,600 kg (12,346 lb). For comparison the G4020HF is listed at 1,600 kg (3,527 lb) and the G12025HF at 14,100 kg (31,085 lb).
02
The XY maximum positioning speed is 160 m/min and the maximum acceleration 2.5 G. Positioning accuracy in X and Y is ±0.03 mm/m and repositioning accuracy ±0.02 mm.
03
6,030 mm (237.4 in) in X, 2,020 mm (79.5 in) in Y and 300 mm (11.8 in) in Z. The nominal processing area is 6,000 × 2,000 mm (236.2 × 78.7 in).
04
Han's Laser names carbon steel, stainless steel, galvanized sheet, aluminum, copper and other highly reflective materials, and lists railway transportation, automotive, construction machinery, agricultural and forestry machinery and home appliances among the industries using it.
