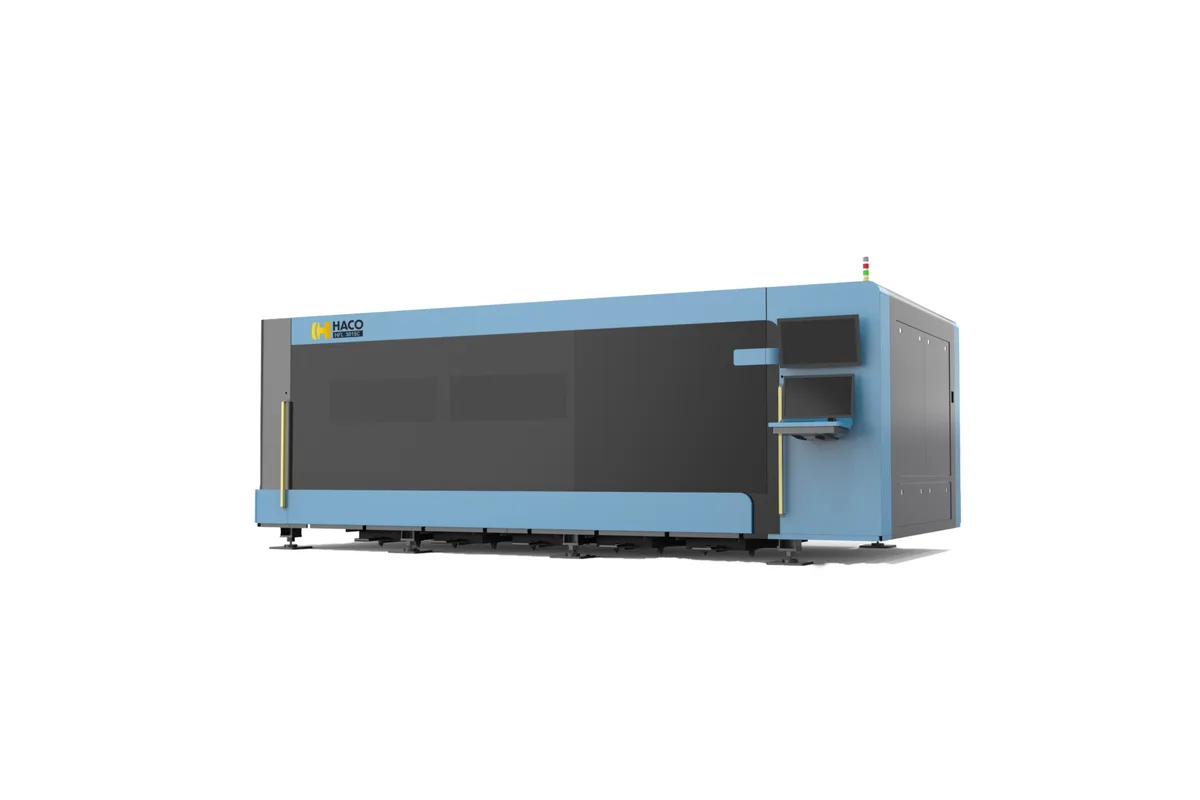

Haco HFL 3015 C
Image: haco.com, Haco
Key Specifications
Accuracy
Repeatability
laser power
x axis travel
y axis travel
z axis travel
How much does the Haco HFL 3015 C cost?
Price estimate
We do not have a price for the Haco HFL 3015 C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A full-size sheet on a single table is the idea behind the Haco HFL 3015 C. X travel is 3,000 mm (118.1 in), Y travel 1,500 mm (59.1 in), and the source is 3 kW or 6 kW. It is the larger of the two C models and the smallest Haco laser that takes a standard sheet whole.
What separates it from the HFL 3015 CE is everything around the cutting area. The C has one sliding table loaded from the front through a motorized door. The HFL 3015 CE has interchangeable tables, 2.8 G of acceleration and 170 m/min, and a 12 kW option. Here the figures are 1.0 G and 100 m/min. On thin sheet with many short moves, acceleration decides the cycle time more than top speed does, so that gap is the one to weigh.
Table load is 1 ton. Z travel is 95 mm (3.7 in). Positioning accuracy is ±0.05 mm/m with ±0.03 mm/m repeatability, which is no different from the faster machines.
Because nothing is loaded from the rear, Haco says the machine can sit in a corner or with its back against the wall. The control is FSCUT2000 with CypCut E, or FSCUT4000 with CypCut E on the 6 kW machine, with drawing and nesting at the console. A shop that cuts a few sheets a day gives up little by loading between sheets. A shop that wants the laser cutting while the next sheet is prepared needs the exchange-table design.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3 kW or 6 kW |
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 1,500 mm (59.1 in) |
| Z Axis Travel | 95 mm (3.7 in) |
| Max Simultaneous Speed | 100 m/min |
| Max Acceleration | 1.0 G |
| Positioning Accuracy | ±0.05 mm/m |
| Repeatability | ±0.03 mm/m |
| Max Table Load | 1 ton |
Specifications sourced from haco.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Takes full sheet: 3,000 mm (118.1 in) by 1,500 mm (59.1 in) of travel
- Single-table, front-loading design needs no space behind the machine
- Table rated for 1 ton, twice the 0.5 tons of the HFL 1510 C
- ±0.05 mm/m positioning accuracy and ±0.03 mm/m repeatability
- Interrupted cuts can be resumed at the point where the machine stopped
Limitations
- Acceleration is 1.0 G, against 2.8 G on the HFL 3015 CE
- Maximum simultaneous speed of 100 m/min
- No table exchange, so loading time is machine downtime
- Source choice ends at 6 kW
- Only 95 mm (3.7 in) of Z travel
Best For
Frequently Asked Questions
01
The HFL 3015 C has one sliding table, 1.0 G of acceleration, 100 m/min and a 3 kW or 6 kW source. The HFL 3015 CE has dual interchangeable tables, 2.8 G, 170 m/min and can also be had with 12 kW. Stated positioning accuracy and repeatability are the same on both.
02
The brochure gives a maximum table weight of 1 ton. The smaller HFL 1510 C on the same design is rated for 0.5 tons.
03
Not for loading. A motorized door and a sliding table let sheets go in from the front, and Haco states the machine can be placed in a corner or with its back against the wall.
04
FSCUT2000 with CypCut E, or FSCUT4000 with CypCut E on the 6 kW version. Drawing and nesting are possible directly at the console, and the cutting head adjusts its focal point to the material thickness automatically.
