Yawei HLE-1530
Key Specifications
Accuracy
Repeatability
cutting area
x axis travel
y axis travel
z axis travel
How much does the Yawei HLE-1530 cost?
Price estimate
We do not have a price for the Yawei HLE-1530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Yawei HLE-1530 is the entry size of the HLE high-performance fiber laser series, cutting 3,050 x 1,525 mm (120.1 x 60.0 in) with 3, 6 or 12 kW of laser power. Maximum X-Y trajectory speed is 170 m/min.
Yawei sells the HLE on running economy. Its description speaks of quick control response and of saving air and electricity, and it names a bright surface cutting technology that gives fast cutting with minimal taper and low roughness. The frame is a gantry with dual drive on a high-rigidity bed that has been stress-relief annealed.
Against the flagship HLF-1530 the table shows where the HLE is pitched. The HLF-1530 lists 200 m/min and power up to 20 kW; this machine stops at 12 kW. Accuracy is not reduced, at ±0.03 mm (±0.0012 in) positioning and ±0.02 mm (±0.0008 in) repositioning.
Strokes are 3,070 mm (120.9 in), 1,545 mm (60.8 in) and 300 mm (11.8 in). The table carries 1,000 kg (2,205 lb), and the layout is 9,200 x 5,000 x 2,300 mm (362.2 x 196.9 x 90.6 in). The operating interface comes with a cutting parameter library. For a first fiber laser cutting mostly thin sheet, 3 kW or 6 kW on this frame covers the work; the 12 kW option is there for thicker mild steel and faster nitrogen cutting.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 3,050 x 1,525 mm (120.1 x 60.0 in) |
| X Axis Travel | 3,070 mm (120.9 in) |
| Y Axis Travel | 1,545 mm (60.8 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Max Trajectory Speed Xy | 170 m/min |
| Positioning Accuracy | ±0.03 mm (±0.0012 in) |
| Repeatability | ±0.02 mm (±0.0008 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Machine Layout Dimensions | 9,200 x 5,000 x 2,300 mm (362.2 x 196.9 x 90.6 in) |
| Laser Power | 3, 6 or 12 kW |
Specifications sourced from en.yawei.cc — verified 2026-10-05
Strengths & Limitations
Strengths
- Laser power options of 3, 6 or 12 kW
- Trajectory speed of 170 m/min with ±0.03 mm (±0.0012 in) positioning accuracy
- Gantry dual-drive bed with stress-relief annealing
- Bright surface cutting technology for low roughness and minimal taper
- Smallest HLE layout: 9,200 x 5,000 x 2,300 mm
Limitations
- Trajectory speed is below the 200 m/min of the HLF-1530
- No option above 12 kW at this size
- Worktable load of 1,000 kg (2,205 lb)
- Savings in air and electricity are claimed without figures
Best For
Frequently Asked Questions
01
3,050 x 1,525 mm (120.1 x 60.0 in). Axis strokes are 3,070 mm (120.9 in) in X, 1,545 mm (60.8 in) in Y and 300 mm (11.8 in) in Z, and the worktable load limit is 1,000 kg (2,205 lb).
02
The HLE-1530 lists 170 m/min and 3, 6 or 12 kW. The HLF-1530 lists 200 m/min and 3, 6, 12 or 20 kW. Both give ±0.03 mm positioning accuracy and a 1,000 kg (2,205 lb) table load.
03
It names bright surface cutting technology, which it says gives fast cutting, minimal taper and low roughness. The operating interface includes a cutting parameter library that was upgraded for the series.
04
The machine layout dimension is 9,200 x 5,000 x 2,300 mm (362.2 x 196.9 x 90.6 in). A machine weight is not published for this size; only the HLE-25120 has one in the table.
More from Yawei
Other CNC Laser Cutting Machines
Accurl SMART Giant X 9001.30L

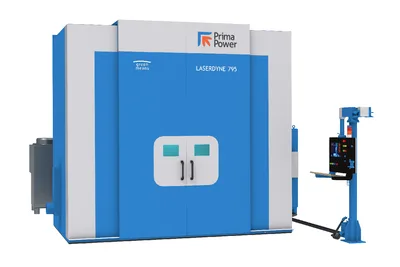

Prima Power LASERDYNE 795 XS
Dener FTL 9025

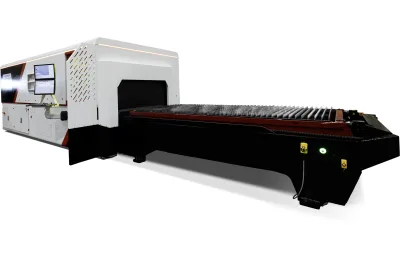

Cincinnati CI FiberMax 3015
