LVD TL 8525

Q: How much does the LVD TL 8525 cost?

The price estimate for the LVD TL 8525 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-tl-8525#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

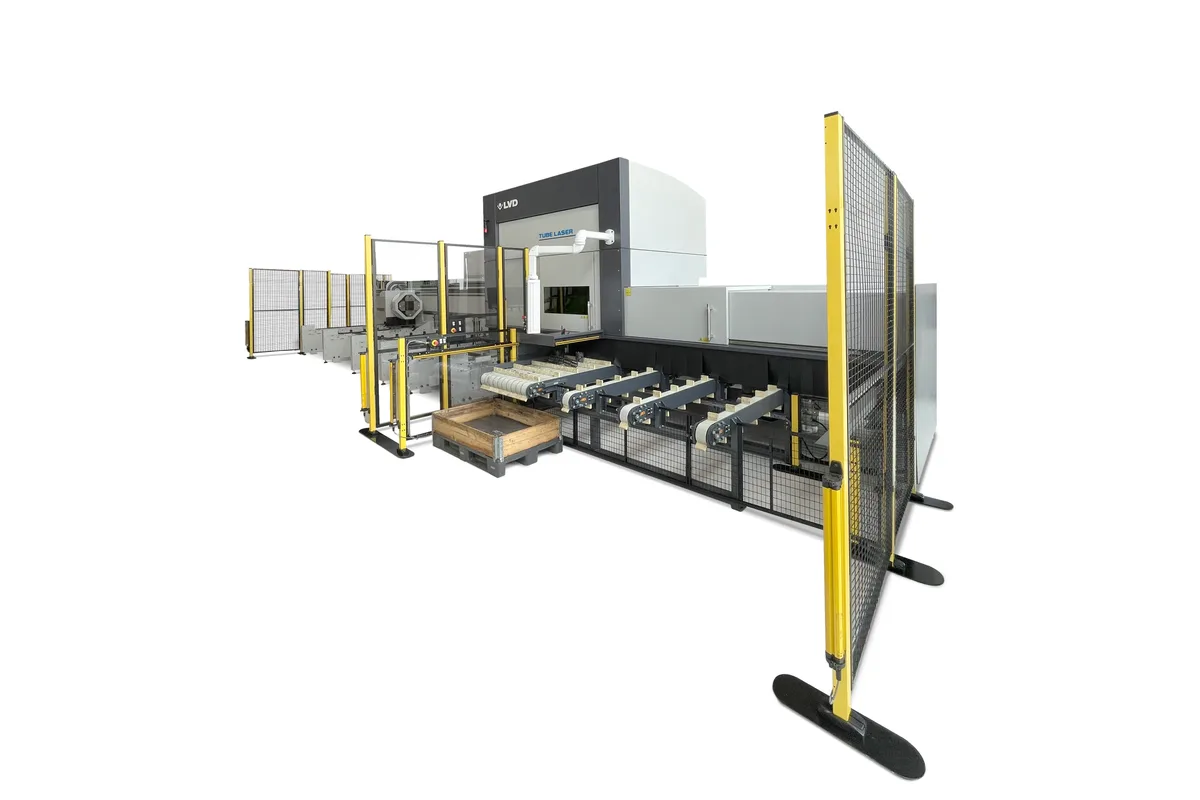

Image: lvdgroup.com, LVD

Key Specifications

feed stage x1 axis

1,190 mm (46.9 in) - 60 m/min

feed stage x2 axis

8,975 mm (353.3 in) - 60 m/min

feed stage y axis

360 mm (14.2 in) - 60 m/min

feed stage a axis

up to 60 rpm

feed stage z axis

400 mm (15.7 in) - 45 m/min

accuracy

+/- 0.1 mm or 0.05 mm/300 mm; small features: 0.025 mm

How much does the LVD TL 8525 cost?

Price estimate

Uncertain

We do not have a price for the LVD TL 8525 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Bevel cuts in large tube are what the LVD TL 8525 is built for. It carries a 45-degree 3D tilt cutting head, takes round tube up to 250 mm (9.8 in) and square tube up to 250 x 250 mm (9.8 x 9.8 in), and accepts lengths of 8,200 mm (322.8 in). LVD gives the diameter range as 20 mm to 250 mm.

The tilt head changes what can be done in one setup. Besides straight cuts in round, square, rectangular and irregular sections, it cuts weld-preparation bevels in thick-walled tube and works on profiles and channels. The head travels 1,190 mm (46.9 in) along its own X1 axis, which lets it reach along the tube and behind the steady rest; LVD's point is that more of each length becomes parts and less becomes remnant.

Standard power is 2 kW, with a 4 kW source as the option for faster cutting or more demanding jobs. That is modest next to the 3 kW or 4 kW of the smaller TL 2665, so the larger machine is defined by its envelope and its head, not by wattage. The table states no wall-thickness limit. Tube weight may reach 40 kg/m.

Handling is semi-automatic. A front loader holds six tubes, different sizes together if wanted, and can be topped up while the machine runs. On the outfeed side a servo-controlled table tilts to release parts onto a 3 m conveyor with compartments that keep them apart. Standard part length is 3,000 mm (118.1 in); an optional outfeed extension takes parts up to 6m.

Axis speeds are 60 m/min on X1, X2 and Y and 45 m/min on Z, with the chuck turning at up to 60 rpm. Control is a Siemens CNC with an integrated touchscreen, programmed through CADMAN-T.

Full Specifications

Parameter	Value
Feed Stage X1 Axis	1,190 mm (46.9 in) - 60 m/min
Feed Stage X2 Axis	8,975 mm (353.3 in) - 60 m/min
Feed Stage Y Axis	360 mm (14.2 in) - 60 m/min
Feed Stage A Axis	up to 60 rpm
Feed Stage Z Axis	400 mm (15.7 in) - 45 m/min
Accuracy	+/- 0.1 mm or 0.05 mm/300 mm; small features: 0.025 mm
Front Tube Loader	6-position front loader reversible; 6 servo-controlled infeed risers
Laser Power	2 kW - optional 4 kW
Max Tube Size Round	250 mm (9.8 in)
Max Tube Size Square	250 x 250 mm (9.8 x 9.8 in)
Max Tube Length	8,200 mm (322.8 in)
Max Tube Weight	40 kg/m
Max Part Length	3,000 mm (118.1 in)
Automation Options	Bundle feeder, Seam detection, Outfeed extension, Data reporting

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

45-degree 3D tilt cutting head for bevels and weld-prep cuts in thick-walled tube
Round tube up to 250 mm (9.8 in) and square up to 250 x 250 mm, in lengths to 8,200 mm (322.8 in)
1,190 mm (46.9 in) X1 head travel reaches behind the steady rest to use more of each tube
6-position front loader that takes mixed tube sizes and can be reloaded during processing
Servo-controlled tilting outfeed table feeding a 3 m compartment conveyor

Limitations

Standard source is 2 kW; 4 kW is an option
Standard part length is 3,000 mm (118.1 in); longer parts up to 6m need the optional outfeed extension
Rotary speed is up to 60 rpm, half the 120 rotations/min listed for the TL 2665
No wall-thickness capacity is stated in LVD's table

Best For

Large tube and profiles from 20 mm to 250 mm Weld-preparation bevels with the 45-degree tilt head Small batches of mixed tube sizes from the 6-position loader Structural sections up to 40 kg/m

Frequently Asked Questions

01 What is the largest tube the TL 8525 takes?

250 mm (9.8 in) round or 250 x 250 mm (9.8 x 9.8 in) square, up to 8,200 mm (322.8 in) long and up to 40 kg/m. LVD gives the working diameter range as 20 mm to 250 mm.

02 What does the tilt head allow?

The 45-degree 3D tilt cutting head makes angled cuts as well as straight ones. LVD lists precision cuts in round, square, rectangular and irregular-shaped tubes, complex profiles and channels, and weld-prep cuts in thick-walled tubes. It moves on an X1 axis with 1,190 mm of travel, so it can also work behind the steady rest.

03 How does the TL 8525 differ from the TL 2665?

Capacity and head. The TL 8525 takes 250 mm round tube and has a bevel head; the TL 2665 is listed for round tube of 19 x 165 mm and square tube to 127 x 127 mm. The TL 2665 allows longer parts as standard, 4,800 mm against 3,000 mm, and comes with a 3 kW or 4 kW source where the TL 8525 starts at 2 kW.

04 How long can finished parts be?

3,000 mm (118.1 in) as standard. LVD offers an outfeed extension as an option that allows parts up to 6m, and the outfeed conveyor can be extended to 6m in the same way. Raw tube can be up to 8,200 mm long.

05 What control and software does it run?

A Siemens CNC control with an integrated touchscreen panel, which LVD says supports high-speed processing with laser control functions for cut quality. Programming is done in CADMAN-T, LVD's software for tubes and profiles. Bundle feeder, seam detection, outfeed extension and data reporting are the listed automation options.
