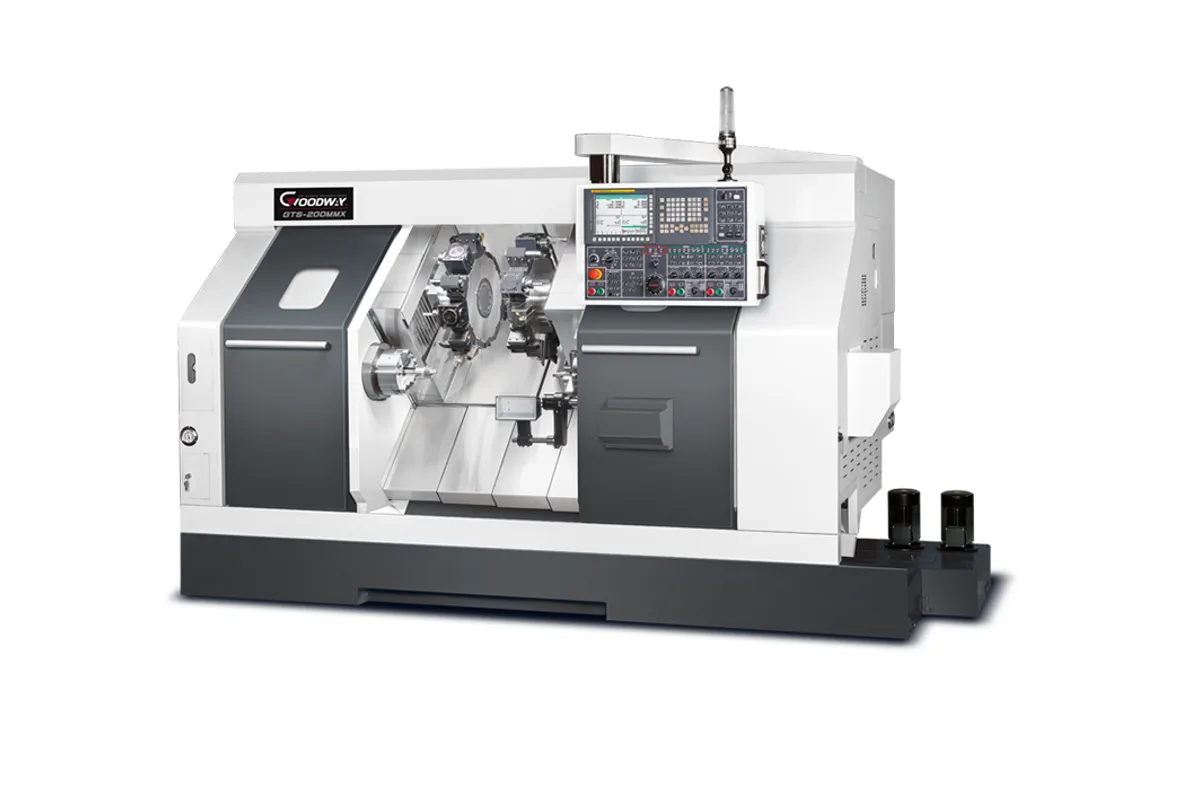

Goodway GTS-200
Image: goodwaycnc.com, Goodway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max swing diameter
chuck size
bar capacity
How much does the Goodway GTS-200 cost?
Price estimate
We do not have a price for the Goodway GTS-200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 8 in chucks, 11 kW (14.8 hp) continuous on each spindle and a box-way bed, the Goodway GTS-200 is the heavier-cutting size of the GTS twin-spindle, twin-turret family. Bar capacity is Ø51 mm (2.0 in) and each spindle runs to 4,800 rpm.
Power doubles compared with the GTS-150. Each motor is rated 15 kW (20.1 hp) on the 30 min. rating, and Goodway states that the GTS-200 series has a high-rigidity box-way design. Together those two facts move the machine from light bar work toward forgings and castings that need a real roughing cut on both sides.
The swing grows to Ø280 mm (11.0 in) and turning length to 200 mm (7.9 in). X travel is 190 mm (7.5 in). Z1 travel is 270 mm (10.6 in) and Z2 travel 740 mm (29.1 in), the second figure covering the transfer stroke between the opposed spindles. The bed is a one-piece casting inclined at 45°.
Two 12-station servo turrets are standard in the X variation. Live tooling at 4,000 rpm can be fitted to one turret (MX) or both (MMX). In the XY variation both turrets also get a Y-axis with 120 mm (4.7 in) of travel, ±60 mm, so off-center features can be milled on the front and the back of a part in the same cycle. When Ø51 mm bar is not enough, the GTS-260 offers Ø65 mm (2.6 in) on the same travels.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø280 mm (11.0 in) |
| Max Turning Length | 200 mm (7.9 in) |
| Chuck Size | 8" |
| Bar Capacity | Ø51 mm (2.0 in) |
| Spindle Motor Power | 11 kW (14.8 hp) (cont.) |
| Spindle Power 30 Min | 15 kW (20.1 hp) (30 min.) |
| Max Spindle Speed | 4,800 rpm |
| X Axis Travel | 190 mm (7.5 in) |
| Z1 Axis Travel | 270 mm (10.6 in) |
| Z2 Axis Travel | 740 mm (29.1 in) |
| Turret Stations | 12 |
| Live Tooling Stations | 12 (opt.) |
| Live Tooling Speed | 4,000 rpm (opt.) |
| Y Axis Travel | 120 mm (4.7 in) (±60 mm (±2.4 in)) (opt.) |
Specifications sourced from goodwaycnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 11 kW (14.8 hp) continuous and 15 kW (20.1 hp) 30 min. on each of two spindles
- Box-way design, as Goodway states for the GTS-200 series
- Twin Y axes with 120 mm (4.7 in) of travel in the XY variation
- Z2 travel of 740 mm (29.1 in) for part transfer between the spindles
Limitations
- Turning length is 200 mm (7.9 in), so only short parts fit
- Spindle speed is 4,800 rpm, below the 6,000 rpm of the GTS-150
- X travel is 190 mm (7.5 in)
- Live tooling stops at 4,000 rpm and is optional
Best For
Frequently Asked Questions
01
11 kW (14.8 hp) continuous and 15 kW (20.1 hp) on the 30 min. rating, at up to 4,800 rpm. Spindle 1 and spindle 2 share the same specification, with 8 in chucks and Ø51 mm (2.0 in) bar capacity.
02
Short ones. Maximum turning length is 200 mm (7.9 in) and swing diameter Ø280 mm (11.0 in). X-axis travel is 190 mm (7.5 in) and Z1-axis travel 270 mm (10.6 in).
03
In the XY variation, yes. Each turret gets a Y-axis with 120 mm (4.7 in) of travel, ±60 mm from center, along with live tooling. Goodway describes this as a twin Y axes control function for off-center milling, drilling and tapping.
04
Chuck, bar and speed. The GTS-200 has 8 in chucks, Ø51 mm (2.0 in) bar capacity and 4,800 rpm. The GTS-260 has 10 in chucks, Ø65 mm (2.6 in) bar capacity and 4,000 rpm. Motors and travels are the same in the table.
