Goodway GV-1000

Q: How much does the Goodway GV-1000 cost?

The price estimate for the Goodway GV-1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gv-1000#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

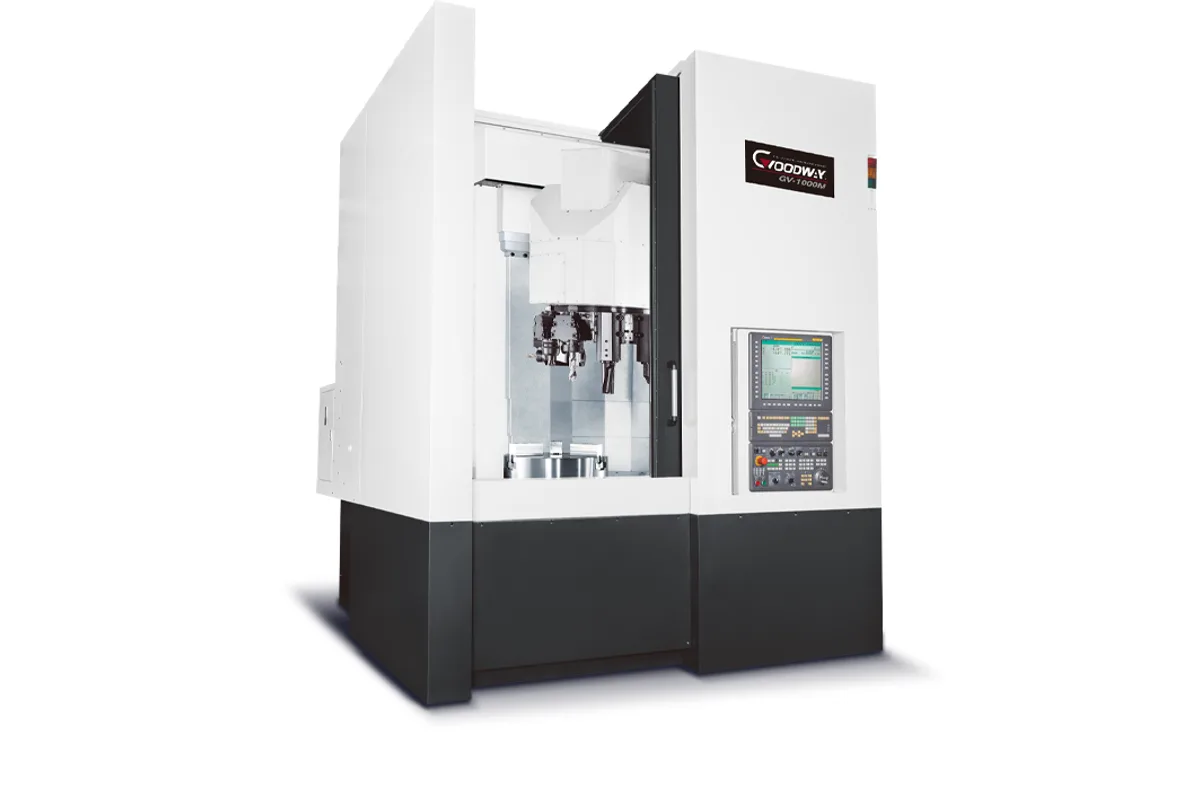

Goodway GV-1000 series super rigid vertical turning centers (GV-1000)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Power

22 kW (29.5 hp) (cont.)

chuck size

18" ~ 32"

max swing diameter

Ø1,020 mm (40.2 in)

max turning diameter

Ø1,000 mm (39.4 in)

max turning height

760 mm (29.9 in)

spindle power 30 min

30 kW (40.2 hp) (30 min.)

How much does the Goodway GV-1000 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GV-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GV-1000 is a turret-type vertical turning center for chucks from 18 in to 32 in, turning Ø1,000 mm (39.4 in) and 760 mm (29.9 in) high. It sits between Goodway's compact GV-780 and the ram-type GV-1100: bigger than the first, but still a turret lathe with quick tool changes instead of a ram and tool magazine.

Its spindle is geared. A motor rated 22 kW (29.5 hp) continuous and 30 kW (40.2 hp) for 30 min. works through a 2-speed gearbox to give 2,320 Nm (1,711 lb-ft) continuous and 3,765 Nm (2,777 lb-ft) on the 30 min. rating. For comparison within the range, the GV-780 peaks at 1,050 Nm (774 lb-ft).

Guideways are mixed by purpose. X uses roller-type linear guides for control and quick positioning, at 24 m/min (945 ipm), and Z uses wide box ways to carry cutting load, at 20 m/min (787 ipm). X travel is 525 mm (20.7 in) and Z travel 765 mm (30.1 in). The column is a single casting.

A 12-station servo turret takes 32 mm (1.3 in) square O.D. tools and Ø60 mm (2.4 in) boring bars, on what Goodway calls an extra-large turret disk. The optional live tooling turret has 12 driven stations at 3,000 rpm with a drive motor of 3.7 kW (5.0 hp) or 5.5 kW (7.4 hp); Goodway describes it as an ER50 unit. A Cf-axis on a worm gear accompanies it. Two controls are listed, FANUC Oi-TF Plus and 31i.

Full Specifications

Parameter	Value
Chuck Size	18" ~ 32"
Max Swing Diameter	Ø1,020 mm (40.2 in)
Max Turning Diameter	Ø1,000 mm (39.4 in)
Max Turning Height	760 mm (29.9 in)
Spindle Motor Power	22 kW (29.5 hp) (cont.)
Spindle Power 30 Min	30 kW (40.2 hp) (30 min.)
Spindle Torque	2,320 Nm (1,711 lb-ft) (cont.)
Spindle Torque 30 Min	3,765 Nm (2,777 lb-ft) (30 min.)
Turret Stations	12
OD Tool Shank Size	□ 32 mm (1.3 in)
ID Tool Shank Size	Ø60 mm (2.4 in)
Live Tooling Stations	12 (opt.)
Live Tooling Drive Motor	3.7 kW (5.0 hp) / 5.5 kW (7.4 hp) (opt.)
Live Tooling Speed	3,000 rpm (opt.)
X Axis Travel	525 mm (20.7 in)
Z Axis Travel	765 mm (30.1 in)
Rapid Traverse X	24 m/min (945 ipm)
Rapid Traverse Z	20 m/min (787 ipm)
CNC Control	FANUC Oi-TF Plus / 31i

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Geared spindle with 3,765 Nm (2,777 lb-ft) on the 30 min. rating
22 kW (29.5 hp) continuous, 30 kW (40.2 hp) 30 min. motor
12-station turret taking Ø60 mm (2.4 in) boring bars
Roller linear guides on X at 24 m/min (945 ipm); box ways on Z
Choice of FANUC Oi-TF Plus or 31i control

Limitations

No table load or maximum spindle speed appears in Goodway's table
Live tooling is optional and limited to 3,000 rpm
Swing of Ø1,020 mm (40.2 in) is barely above the turning diameter
Turning height is 760 mm (29.9 in)

Best For

Large discs, hubs and rings up to Ø1,000 mm (39.4 in) on 18 in to 32 in chucks Heavy roughing that needs geared-spindle torque Parts with deep bores, using Ø60 mm (2.4 in) boring bars

Frequently Asked Questions

01 What chuck sizes fit the GV-1000?

Goodway lists chuck sizes from 18 in to 32 in. Maximum turning diameter is Ø1,000 mm (39.4 in), swing Ø1,020 mm (40.2 in) and maximum turning height 760 mm (29.9 in).

02 How much torque does the GV-1000 spindle have?

2,320 Nm (1,711 lb-ft) continuous and 3,765 Nm (2,777 lb-ft) on the 30 min. rating, from a 22 kW (29.5 hp) continuous, 30 kW (40.2 hp) 30 min. motor and a 2-speed gearbox.

03 What are the travels and rapids of the GV-1000?

X-axis travel is 525 mm (20.7 in) with rapids of 24 m/min (945 ipm). Z-axis travel is 765 mm (30.1 in) with rapids of 20 m/min (787 ipm). X runs on roller-type linear guides and Z on box ways.

04 Can the GV-1000 be fitted with live tooling?

Yes, in the M variation. The 12-station live tooling turret runs at 3,000 rpm with a 3.7 kW (5.0 hp) or 5.5 kW (7.4 hp) drive motor, and a Cf-axis with 0.001° indexing is included. Goodway says only the tool in the working position rotates.
