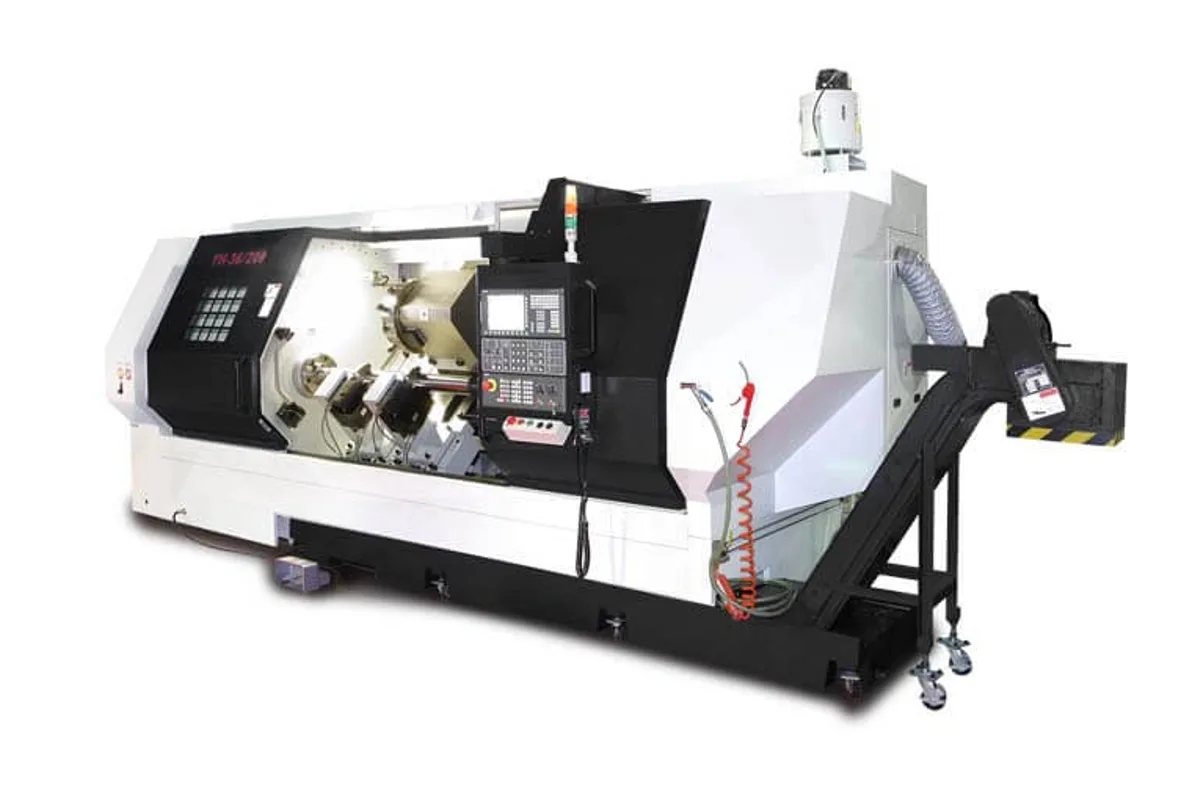

You Ji YH36
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
chuck size
max swing diameter
max turning diameter
How much does the You Ji YH36 cost?
Price estimate
We do not have a price for the You Ji YH36 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Four bed lengths are listed for the You Ji YH36, a 15 in (381 mm) chuck CNC horizontal turning lathe: the maximum turning length is given as 750/1,350/2,000/3,000 mm (29.5/53.1/78.7/118.1 in). The catalogue pictures the machine as YH36/200 and YH36+C/200, the suffix naming the length.
Its spindle is in the heavy class. The nose is A2-11, bar capacity Ø89 mm (3.5 in), and the motor 37/45 kW (49.6/60.3 hp), double the rating of the YH28. Speed range is 1-2,000 rpm. Maximum turning diameter is Ø600 mm (23.6 in) and swing Ø720 mm (28.3 in).
So what does a buyer get across the four lengths? The same headstock, the same 10-st. turret and the same cross-section, on beds that take the machine length from one end to the other of 5,000-8,010 mm (196.9-315.4 in). Width is 2,340-2,510 mm (92.1-98.8 in) and height 2,340 mm (92.1 in). The shortest bed is a big chucker for flanges and hubs. The longest suits shafts, rolls and long hydraulic cylinders, and for those the tailstock and steady rest arrangement is the thing to settle with the maker, since the table lists neither.
The +C version adds the C-axis function that the YH key lists from the YH21 upward.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 15 in (381 mm) |
| Max Swing Diameter | Ø720 mm (28.3 in) |
| Max Turning Diameter | Ø600 mm (23.6 in) |
| Max Turning Length | 750/1,350/2,000/3,000 mm (29.5/53.1/78.7/118.1 in) |
| Bar Capacity | Ø89 mm (3.5 in) |
| Spindle Motor Power | 37/45 kW (49.6/60.3 hp) |
| Turret Type | 10-st. |
| Spindle Nose | A2-11 |
| Max Spindle Speed | 1-2,000 rpm |
| Machine Length | 5,000-8,010 mm (196.9-315.4 in) |
| Machine Width | 2,340-2,510 mm (92.1-98.8 in) |
| Machine Height | 2,340 mm (92.1 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 37/45 kW (49.6/60.3 hp) spindle motor on an A2-11 nose
- Ø89 mm (3.5 in) bar capacity with a 15 in (381 mm) chuck
- Ø600 mm (23.6 in) turning diameter within a Ø720 mm (28.3 in) swing
- Four turning lengths on one design; C-axis version (YH36+C) is listed
Limitations
- Speed range of 1-2,000 rpm limits small-diameter finishing
- Machine length runs to 8,010 mm (315.4 in) on the longest bed
- Catalogue table lists no tailstock, steady rest or weight figures
Best For
Frequently Asked Questions
01
The maximum turning length row reads 750/1,350/2,000/3,000 mm (29.5/53.1/78.7/118.1 in). Machine length is listed as 5,000-8,010 mm (196.9-315.4 in) depending on the bed.
02
An A2-11 spindle nose with Ø89 mm (3.5 in) bar capacity, a 15 in (381 mm) chuck and a 37/45 kW (49.6/60.3 hp) motor. The speed range is 1-2,000 rpm.
03
The motor and spindle nose are the same. The YH50 has an 18 in (457 mm) chuck, Ø114 mm (4.5 in) bar capacity, Ø680 mm (26.8 in) turning diameter and a 1-1,500 rpm range. The YH36 has a 15 in (381 mm) chuck, Ø89 mm (3.5 in) bar capacity and 1-2,000 rpm.
04
Yes. The catalogue shows a YH36+C/200, and the model key lists the C-axis function for the YH21 and upward. The turret is listed as 10-st.; driven-tool figures are not in the table.
