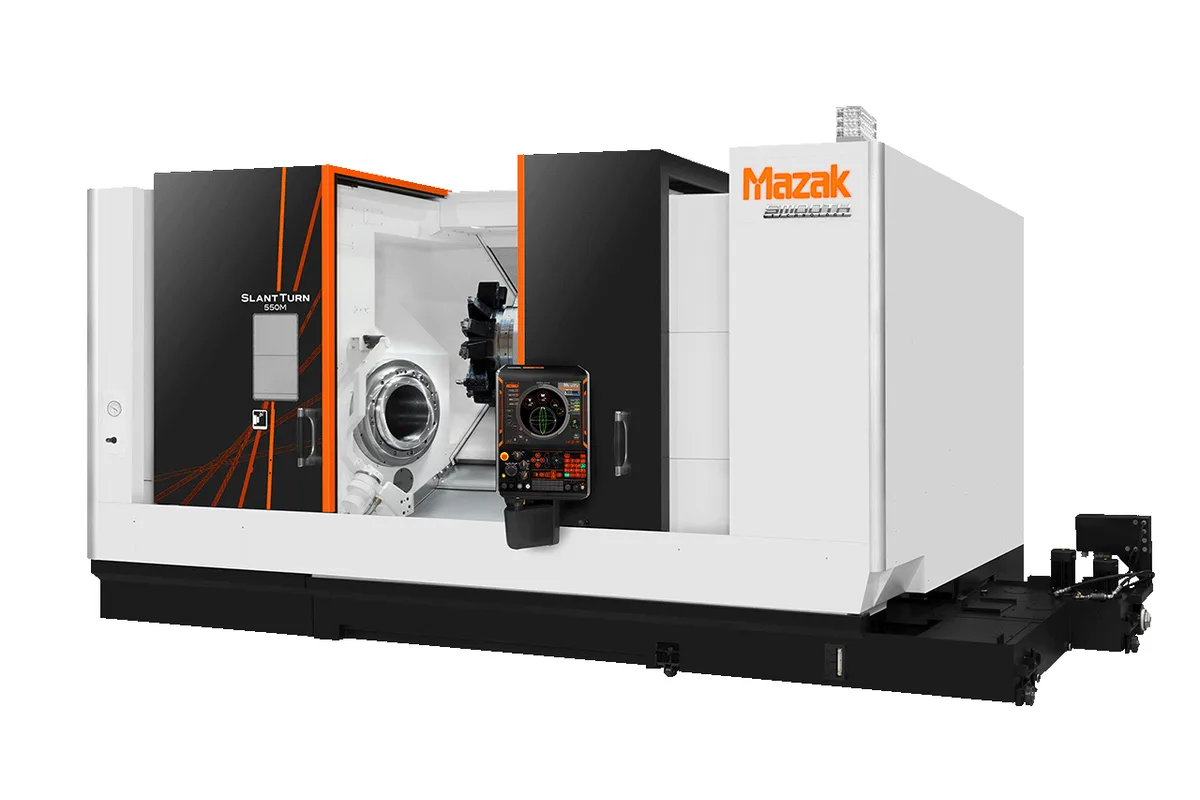

Mazak SLANT TURN 600
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Z Travel
Max Spindle
Tool Capacity
Spindle Power
Max Turn Length
How much does the Mazak SLANT TURN 600 cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
A Ø15 in (381 mm) hole through the spindle is what defines the Mazak SLANT TURN 600. It is the largest bore of the SLANT TURN 500, 550 and 600 family, paired with a 21 in chuck and a 500 rpm spindle. Mazak's table for it covers the 2000U bed: 79 in (2,007 mm) of maximum turning length at up to Ø36 in (914 mm).
At 500 rpm the machine is plainly meant for big diameters. Large pipe and tube can run back through the headstock while the end is turned or threaded, and at those sizes a few hundred rpm is plenty. Small features on the same part will cut slowly. The SLANT TURN 550 is the step down, with a Ø11 in (279 mm) bore and 1,000 rpm.
Between centers, the table lists a tailstock with an MT No.6 taper and 82 in (2,083 mm) of travel. For the SLANT TURN 500, 550 and 600 series Mazak states that the tailstock quill extends 250 mm, which lets it support long and short shafts without the steady rest being removed. The steady rest itself is an option: a self-run automatic type positioned by the CNC, in sizes up to Ø16.14", compatible with the 2000U / 3000U / 4000U beds.
The spindle motor is rated 37 kW (50 HP) continuous and 45 kW (60 HP) on the 30 min. rating, with 5,163 ft-lb (7,000 Nm) of intermittent torque on the low speed winding in low range. Z travel is 85 in (2,159 mm) and X travel 18 in (457 mm). The longer bed shows in the installation figures: 274 in (6,960 mm) × 96 in (2,438 mm) of floor and 39,242 lb (17,800 kg), against 30,864 lb (14,000 kg) for the SLANT TURN 550 on its shorter bed.
Full Specifications
| Parameter | Value |
|---|---|
| Bed Length Type | 2000U |
| Max Turning Diameter | Ø36 in (914 mm) |
| Max Turning Length | 79 in (2,007 mm) |
| Chuck Size | 21 in |
| Max Spindle Speed | 500 rpm |
| Spindle Torque Intermittent | 5,163 ft-lb (7,000 Nm) (Low speed winding: Low range) |
| Spindle Power Intermittent | 45 kW (60 HP) (30 min. rating) |
| Spindle Motor Power | 37 kW (50 HP) continuous |
| Spindle Bore | Ø15 in (381 mm) |
| Tool Capacity | 12 tools |
| Turret Tool Shank Height | 1 in (25 mm) |
| Turret Boring Bar Shank Diameter | Ø2 in (51 mm) |
| X-Axis Travel | 18 in (457 mm) |
| Z-Axis Travel | 85 in (2,159 mm) |
| Rapid Traverse X | 787 ipm (20 m/min) |
| Rapid Traverse Z | 945 ipm (24 m/min) |
| Tailstock Travel | 82 in (2,083 mm) |
| Tailstock Taper | MT No.6 |
| Floor Space Required | 274 in (6,960 mm) × 96 in (2,438 mm) (W × L, MAZATROL SmoothG) |
| Machine Height | 103 in (2,616 mm) |
| Machine Weight | 39,242 lb (17,800 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Ø15 in (381 mm) spindle bore, the largest of the three sizes, with a 21 in chuck
- 79 in (2,007 mm) maximum turning length on the 2000U bed and 85 in (2,159 mm) of Z travel
- Tailstock with an MT No.6 taper and 82 in (2,083 mm) of travel
- The 2000U bed is one of the beds Mazak names for its optional self-run automatic steady rest, offered in sizes up to Ø16.14"
- 5,163 ft-lb (7,000 Nm) of intermittent spindle torque in low range and 37 kW (50 HP) continuous
Limitations
- 500 rpm top speed, half the 1,000 rpm of the SLANT TURN 550
- The automatic steady rest is an option, not part of the machine as listed
- Needs 274 in (6,960 mm) × 96 in (2,438 mm) of floor and weighs 39,242 lb (17,800 kg)
- Turning only: the Milling configuration is the SLANT TURN 600M
- 12 tools in the turret, with boring bar shanks up to Ø2 in (51 mm)
Best For
Frequently Asked Questions
01
The table for the 2000U bed lists a maximum turning length of 79 in (2,007 mm), with 85 in (2,159 mm) of Z travel and 82 in (2,083 mm) of tailstock travel. Maximum turning diameter is Ø36 in (914 mm). Mazak quotes machining lengths up to 161.38" for the SLANT TURN 500, 550 and 600 series, so longer beds than this one are offered.
02
The bore is Ø15 in (381 mm) and the top speed is 500 rpm, with a 21 in chuck. The motor is rated 37 kW (50 HP) continuous and 45 kW (60 HP) on the 30 min. rating. Torque is 5,163 ft-lb (7,000 Nm), an intermittent figure for the low speed winding in low range.
03
The table lists an MT No.6 tailstock with 82 in (2,083 mm) of travel, and Mazak states a 250 mm quill extension for the SLANT TURN 500, 550 and 600 series. A self-run automatic steady rest is optional, in sizes up to Ø16.14". Mazak limits that option to the 2000U / 3000U / 4000U beds, and this table is for the 2000U.
04
2000U is Mazak's bed-length class for this table. It is not a travel figure. For this bed the table gives 79 in (2,007 mm) of maximum turning length, 85 in (2,159 mm) of Z travel and a footprint of 274 in (6,960 mm) × 96 in (2,438 mm). Mazak's steady rest note also names 3000U and 4000U beds for the series.
05
The SLANT TURN 600M is the Milling configuration: its table adds a 4,000 rpm rotary tool spindle and lists 80 in (2,032 mm) of maximum turning length. Bore, chuck, top speed and weight are the same in both tables, Ø15 in (381 mm), 21 in, 500 rpm and 39,242 lb (17,800 kg). This model is the turning-only machine.
Videos
Mazak North America
More from Yamazaki Mazak
Other CNC Lathes / Turning Centers
DN Solutions PUMA 4100 XLA
Citizen Miyano BNJ-42S

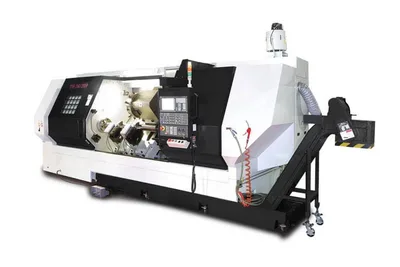

You Ji YH36

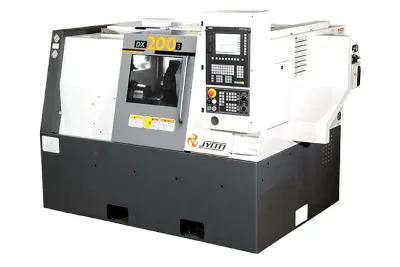

Huron DX 200-3
