Goodway GVF-1112

Q: How much does the Goodway GVF-1112 cost?

The price estimate for the Goodway GVF-1112 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gvf-1112#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

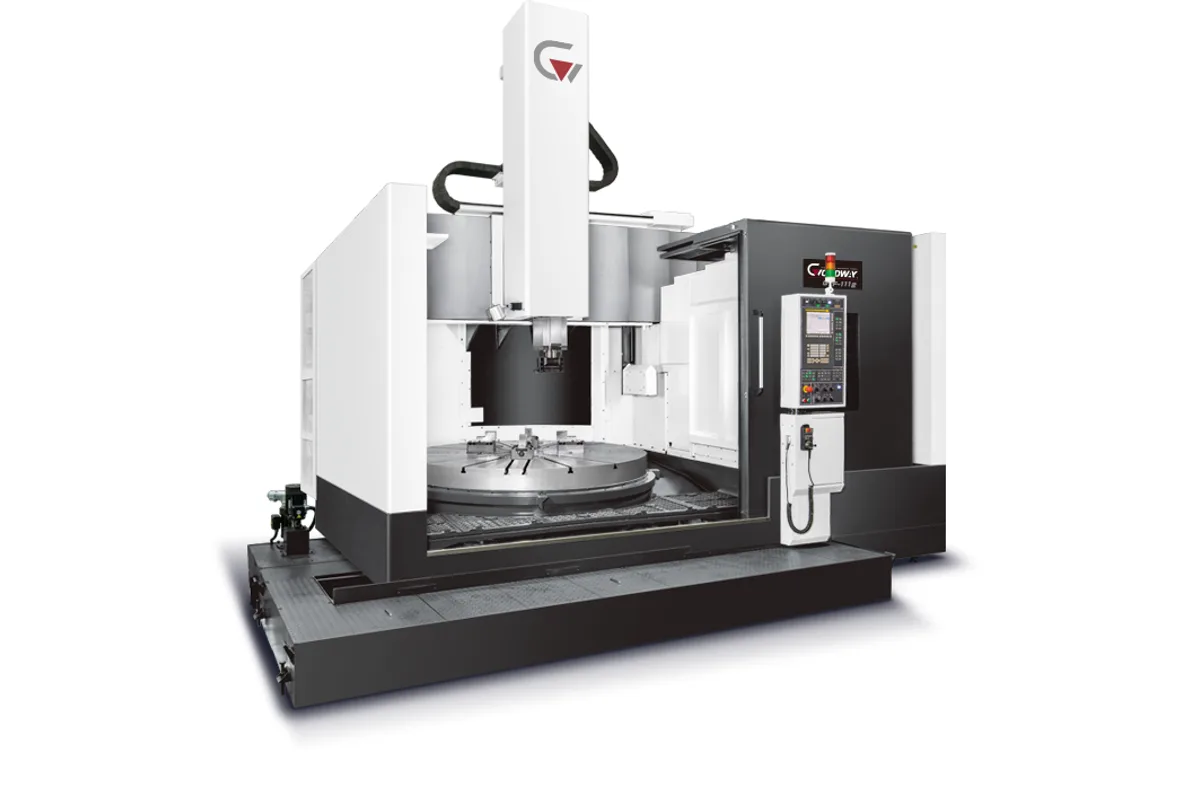

Goodway GVF series super rigid vertical turning centers (GVF-1112)

Image: goodwaycnc.com, Goodway

Key Specifications

Spindle Taper

BT50

Tool Capacity

Spindle Power

37 kW (49.6 hp) (cont.)

table diameter

1,100 mm (43.3 in)

max swing diameter

1,400 mm (55.1 in)

max turning diameter

1,200 mm (47.2 in)

How much does the Goodway GVF-1112 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GVF-1112 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GVF-1112 is a fixed-beam vertical turning lathe with a 1,100 mm (43.3 in) table. Fixed beam means the cross rail does not move: the ram alone supplies the vertical travel, 900 mm (35.4 in) in Z, and the maximum turning height is 900 mm as well. In exchange for the lost adjustment, Goodway claims the highest structural rigidity and damping for the whole machine.

The model code gives the size. The table is 1,100 mm and the turning diameter 1,200 mm (47.2 in), under a 1,400 mm (55.1 in) swing. X travel is 1,450 mm (57.1 in), notably more than the turning diameter, which lets the ram cross the center of the table for facing and boring. Parts up to 4,000 kg (8,818 lb) can be loaded.

The table drive is common to the series: 37 kW (49.6 hp) continuous, 45 kW (60.3 hp) for 30 min., with a geared workpiece spindle. On this size it yields 10,170 Nm (7,501 lb-ft). A 12-position BT50 magazine supplies the ram.

Who should prefer this over the moving-rail GV-1100? A shop whose parts are mostly low, such as rings, discs and flanges, never needs to reposition a rail, and a fixed beam has one less joint between tool and bed. For tall parts the GV-1100 turns 1,000 mm (39.4 in) high. The optional tooling spindle is rated 7.5 kW (10.1 hp) continuous and runs 1 ~ 2,400 rpm. The control is FANUC Oi-TF Plus.

Full Specifications

Parameter	Value
Table Diameter	1,100 mm (43.3 in)
Max Swing Diameter	1,400 mm (55.1 in)
Max Turning Diameter	1,200 mm (47.2 in)
Max Turning Height	900 mm (35.4 in)
Max Table Load	4,000 kg (8,818 lb)
Spindle Motor Power	37 kW (49.6 hp) (cont.)
Spindle Power 30 Min	45 kW (60.3 hp) (30 min.)
Spindle Torque	10,170 Nm (7,501 lb-ft)
Tooling Spindle Power	7.5 kW (10.1 hp) (cont.) (opt.)
Tooling Spindle Power 30 Min	11 kW (14.8 hp) (30 min.) (opt.)
Tooling Spindle Speed Range	1 ~ 2,400 rpm (opt.)
X Axis Travel	1,450 mm (57.1 in)
Z Axis Travel	900 mm (35.4 in)
Tool Capacity	12
Spindle Taper	BT50
CNC Control	FANUC Oi-TF Plus

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Fixed beam structure, which Goodway credits with the highest rigidity and damping
X travel of 1,450 mm (57.1 in) against a turning diameter of 1,200 mm (47.2 in)
37 kW (49.6 hp) continuous, 45 kW (60.3 hp) 30 min. geared table drive
BT50 tool changer with 12 positions
Optional tooling spindle and worm-gear Cf-axis for milling and drilling

Limitations

Turning height is fixed at 900 mm (35.4 in); there is no W-axis
Table torque of 10,170 Nm (7,501 lb-ft) is the lowest level in the GVF series
Table load is 4,000 kg (8,818 lb)
The tooling spindle is an option rated 7.5 kW (10.1 hp) continuous

Best For

Rings, discs and flanges up to 1,200 mm (47.2 in) in diameter Low-profile parts that never need a moving cross rail Workpieces up to 4,000 kg (8,818 lb)

Frequently Asked Questions

01 What do the numbers in GVF-1112 stand for?

They follow the table and turning diameters. The GVF-1112 has a 1,100 mm (43.3 in) table and a 1,200 mm (47.2 in) maximum turning diameter. Swing is 1,400 mm (55.1 in) and maximum turning height 900 mm (35.4 in).

02 What is a fixed-beam vertical lathe?

One whose cross rail is rigidly attached to the columns. On the GVF series all vertical movement is the 900 mm (35.4 in) Z-axis ram travel. Goodway states that the fixed beam design provides the highest structural rigidity and damping capability for the machine.

03 How much torque and power does the GVF-1112 have?

The workpiece spindle motor is rated 37 kW (49.6 hp) continuous and 45 kW (60.3 hp) for 30 min. Maximum spindle torque on this model is 10,170 Nm (7,501 lb-ft).

04 Does the GVF-1112 have a tool changer?

Yes, a 12-position magazine with a BT50 taper. With the optional M variation the ram carries a tooling spindle rated 7.5 kW (10.1 hp) continuous and 11 kW (14.8 hp) for 30 min., with a speed range of 1 ~ 2,400 rpm.
