Goodway GS-2000

Q: How much does the Goodway GS-2000 cost?

The price estimate for the Goodway GS-2000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gs-2000#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

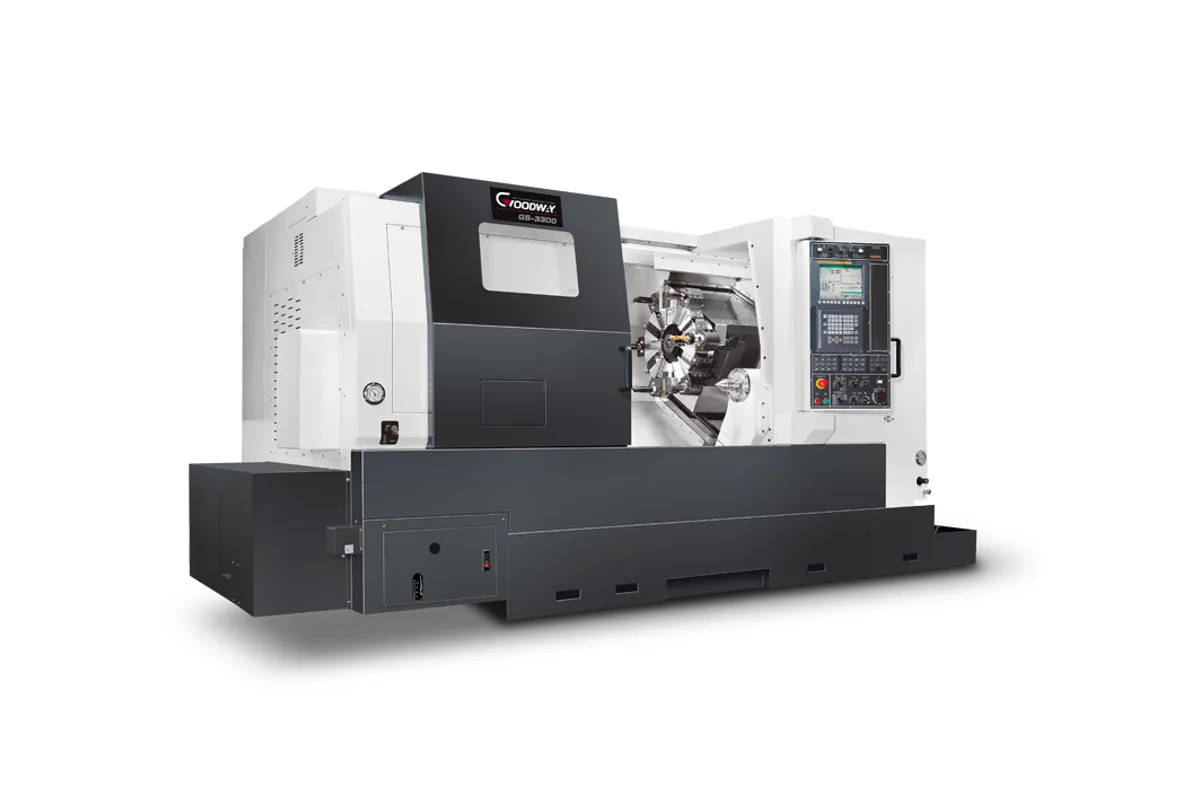

Goodway GS-2000 / GS-3000 series maximum performance turning centers (GS-2000)

Image: goodwaycnc.com, Goodway

Key Specifications

Max Spindle

4,500 rpm

Spindle Power

15 kW (20.1 hp) (cont.)

Max Turn Length

780 mm (30.7 in) / 1,530 mm (60.2 in)

max swing diameter

Ø700 mm (27.6 in)

max turning diameter

Ø570 mm (22.4 in)

chuck size

How much does the Goodway GS-2000 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GS-2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GS-2000 is the 8 in entry to the GS-2000 / GS-3000 series, Goodway's main line of box-way slant-bed turning centers. It pairs Ø65 mm (2.6 in) bar capacity and a 4,500 rpm spindle with a frame sized for much larger work: Ø570 mm (22.4 in) of turning diameter, 300 mm (11.8 in) of X travel and a Ø700 mm (27.6 in) swing.

Compared with the older-pattern GS-200, which also has an 8 in chuck and the same bore, this model is a bigger and stronger machine. The motor is rated 15 kW (20.1 hp) continuous and 18.5 kW (24.8 hp) for 30 min., and the standard bed already turns 780 mm (30.7 in). The L bed stretches turning length and Z travel to 1,530 mm (60.2 in).

Goodway sells the series in eight basic configurations, two bed lengths times four bar capacities, and lets the buyer choose a gear-driven, built-in or belt-driven spindle. The 12-station servo turret makes an opposing tool change in 0.8 seconds by the maker's figure. A programmable tailstock is part of the base table, with 120 mm (4.7 in) of quill travel and an MT#4 live or MT#3 dead center, and a servo tailstock is optional.

Options turn it into a multi-tasking lathe. The live tooling turret has 12 driven stations with ER32 collets at 5,000 rpm, the Y-axis travels ±50 mm (±2.0 in), and the sub-spindle carries a 6 in chuck with a 5.5 kW (7.4 hp) continuous rating at up to 6,000 rpm. With the Y-axis fitted, turning diameter is Ø400 mm (15.7 in).

Full Specifications

Parameter	Value
Max Swing Diameter	Ø700 mm (27.6 in)
Max Turning Diameter	Ø570 mm (22.4 in)
Max Turning Length	780 mm (30.7 in) / 1,530 mm (60.2 in)
Chuck Size	8"
Bar Capacity	Ø65 mm (2.6 in)
Spindle Motor Power	15 kW (20.1 hp) (cont.)
Spindle Power 30 Min	18.5 kW (24.8 hp) (30 min.)
Max Spindle Speed	4,500 rpm
X Axis Travel	300 mm (11.8 in)
Z Axis Travel	780 mm (30.7 in) / 1,530 mm (60.2 in)
Turret Stations	12
Live Tooling Stations	12 (opt.)
Live Tooling Shank Size	ER32 (opt.)
Live Tooling Speed	5,000 rpm (opt.)
Max Turning Diameter with Y Axis	Ø400 mm (15.7 in) (opt.)
Y Axis Travel	±50 mm (±2.0 in) (opt.)
Quill Center Taper Programmable Tailstock	MT#3 (dead center), MT#4 (live center)
Quill Center Taper Servo Tailstock	MT#3 (dead center), MT#4 (live center) (opt.)
Quill Travel Programmable Tailstock	120 mm (4.7 in)
Sub Spindle Chuck Size	6" (opt.)
Sub Spindle Power	5.5 kW (7.4 hp) / 7.5 kW (10.1 hp) (cont. / 30 min.) (opt.)
Sub Spindle Speed Range	6,000 rpm (opt.)

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø570 mm (22.4 in) turning diameter and 300 mm (11.8 in) of X travel on an 8 in machine
15 kW (20.1 hp) continuous, 18.5 kW (24.8 hp) 30 min. spindle motor at up to 4,500 rpm
Choice of gear-driven, built-in or belt-driven spindle
Programmable tailstock listed as standard; servo tailstock optional
Turning length of 780 mm (30.7 in) or 1,530 mm (60.2 in)

Limitations

Bar capacity is Ø65 mm (2.6 in), small for the size of the frame
Live tooling, Y-axis and sub-spindle are all options
The Y-axis reduces turning diameter to Ø400 mm (15.7 in)
The optional sub-spindle is rated 5.5 kW (7.4 hp) continuous, far below the main spindle

Best For

Mixed chucking and shaft work up to Ø570 mm (22.4 in) Bar work up to Ø65 mm (2.6 in) at 4,500 rpm Shafts up to 1,530 mm (60.2 in) on the L bed Multi-tasking parts with the YS variation

Frequently Asked Questions

01 How is the GS-2000 different from the GS-200?

Both have an 8 in chuck, Ø65 mm (2.6 in) bar capacity and 4,500 rpm. The GS-2000 turns Ø570 mm (22.4 in) and its motor is rated 15 kW (20.1 hp) continuous. The GS-200 turns Ø420 mm (16.5 in) with an 11 kW (15 HP) continuous motor.

02 What spindle types can the GS-2000 be ordered with?

Goodway states that gear-driven, built-in or belt-driven spindles can be selected according to requirements, and describes the built-in type as a precision option and the geared type as a high torque option. The table lists 15 kW (20.1 hp) continuous and 18.5 kW (24.8 hp) for 30 min. at 4,500 rpm.

03 What are the travels of the GS-2000?

X-axis travel is 300 mm (11.8 in). Z-axis travel is 780 mm (30.7 in) on the standard bed and 1,530 mm (60.2 in) on the L bed, and the maximum turning length equals the Z travel in both cases. The optional Y-axis travels ±50 mm (±2.0 in).

04 What does the sub-spindle option on the GS-2000 include?

A sub-spindle with a 6 in hydraulic chuck, rated 5.5 kW (7.4 hp) continuous and 7.5 kW (10.1 hp) for 30 min., with a top speed of 6,000 rpm. It is fitted in the S, MS and YS variations for back-end machining.
