Fryer MB-16R

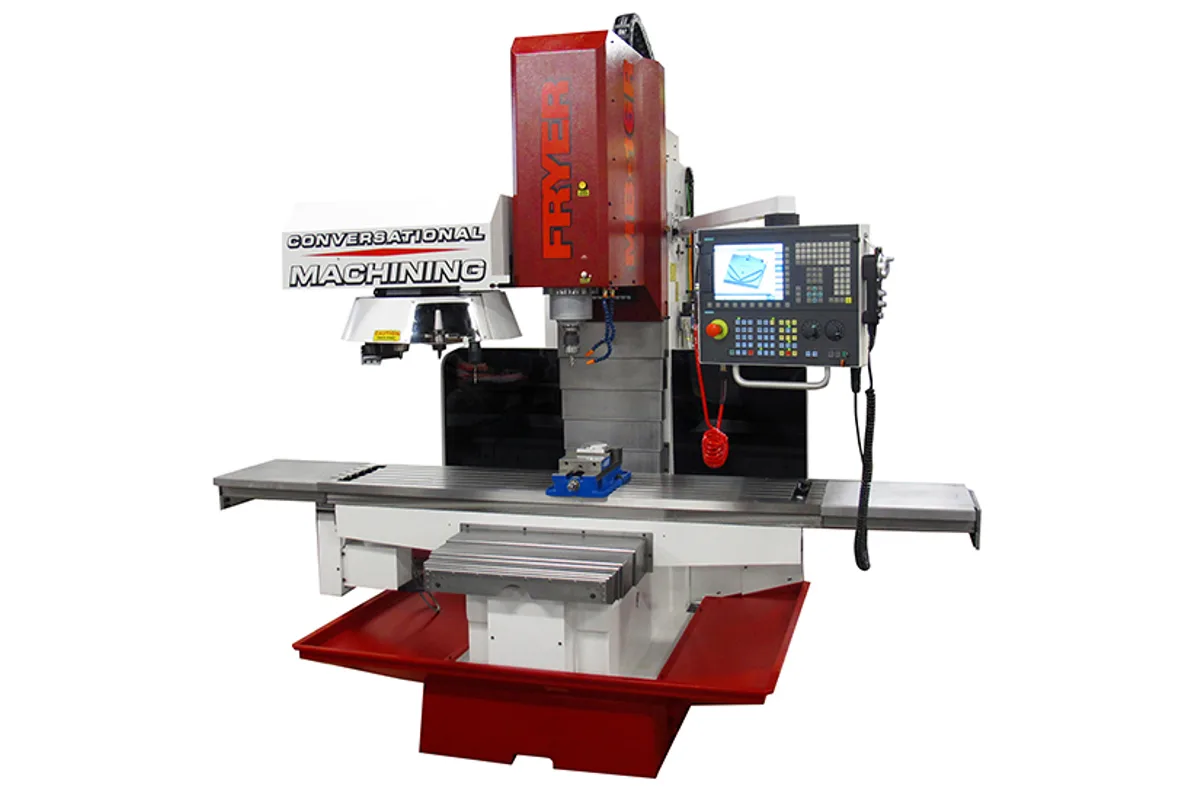

Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Fryer MB-16R cost?
Price estimate
We do not have a price for the Fryer MB-16R that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sixty inches of X travel on an open bed, with a tool changer: that is the Fryer MB-16R. Travels are 60 x 25 x 24 in (1,524 x 635 x 610 mm), the table is 18 x 70 in (457 x 1,778 mm) and the machine weighs 10,000 lb (4,536 kg), the heaviest of the MB toolroom mills.
The electrical row sets this model apart from its smaller siblings and should be read before anything else. Fryer's table gives 40 A with the note 220 VAC only, where the MB-14R is listed at 35 A, 208-250 VAC with 380-500 VAC as an alternative. A plant wired for high voltage will need to plan for that.
Mechanically the MB-16R combines the big casting set with the rigid head. Ballscrews are 1.57 in (40 mm), the table has 5 T-slots and takes 2,950 lb (1,338 kg), and the spindle sits 25 in (635 mm) from the column. Spindle nose to table is 28 to 4 in (711 - 102 mm). The head carries the same 12 hp (8.9 kW) peak, 60 - 8,000 rpm CAT 40 spindle as the rest of the MB-R series, with tool storage for 12 tools or 20 as an option.
On long parts the limiting figures are the feeds. A rapid of 400 ipm (10.2 m/min) and a cutting feed limit of 300 ipm (7.6 m/min) are the same as on the MB-10R, so travelling the full table takes proportionally longer. For rails, bars and plates machined a few at a time this rarely matters; for scattered hole patterns it adds up. Operating width is 174 in (4,420 mm).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 60 in (1,524 mm) |
| Y Axis Travel | 25 in (635 mm) |
| Z Axis Travel | 24 in (610 mm) |
| Max Table Load | 2,950 lb (1,338 kg) |
| Ballscrew Diameter | 1.57 in (40 mm) |
| Table Size | 18 x 70 in (457 x 1,778 mm) |
| T-Slots | 5 / 0.630 in (16 mm) |
| Table Top to Floor | 36 in (914 mm) |
| Spindle Motor Power | 12 hp (8.9 kW) peak |
| Spindle Torque | 40 ft-lb (54 Nm) |
| Max Spindle Speed | 60 - 8,000 rpm |
| Spindle Taper | CAT 40 (BT-40 optional) |
| Distance Spindle Nose to Table | 28 - 4 in (711 - 102 mm) |
| Spindle Center to Column | 25 in (635 mm) |
| Tool Capacity | 12 (20 optional) |
| Tool Change Time | 7 seconds |
| Tool Selection | Bi-Directional |
| Max Adjacent Tool Diameter | 5.5 in (140 mm) |
| Max Tool Weight | 15.4 lb (7.0 kg) |
| Max Tool Length | 11.8 in (300 mm) |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Rapid Traverse Xyz | 400 ipm (10.2 m/min) |
| Cutting Feed Rate | 0.001 - 300 ipm (up to 7.6 m/min) |
| Axis Thrust | 4,400 lb (1,996 kgf) |
| Air Requirement | 85 psi (5.9 bar), 3 cfm (85 L/min) |
| Coolant Capacity | 12 gal (45 L) |
| Coolant Flow | 3 gpm (11 L/min) |
| Power Requirement | 40 A (220 VAC only) |
| Shipping Dimensions | 72 x 92 x 89 in (1,829 x 2,337 x 2,261 mm) |
| Machine Dimensions | 174 x 92 x 113 in (4,420 x 2,337 x 2,870 mm) |
| Machine Weight | 10,000 lb (4,536 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 60 x 25 x 24 in (1,524 x 635 x 610 mm) travels with an 18 x 70 in (457 x 1,778 mm) open table
- 10,000 lb (4,536 kg) machine weight, against 8,800 lb (3,992 kg) for the MB-16Q
- 8,000 rpm rigid CAT 40 spindle with tool storage for 12 or 20 tools
- 1.57 in (40 mm) ballscrews and 5 T-slots
- Peak axis thrust of 4,400 lb
Limitations
- Power is listed as 40 A, 220 VAC only
- Rapids of 400 ipm (10.2 m/min) are slow for a 60 in (1,524 mm) stroke
- Spindle torque peaks at 40 ft-lb (54 Nm)
- Needs 174 x 92 in (4,420 x 2,337 mm) of floor and 113 in (2,870 mm) of height
Best For
Frequently Asked Questions
01
Fryer's table lists 40 A and 220 VAC only for the MB-16R. The MB-10R and MB-14R are listed at 35 A, 208-250 VAC, 3 phase. Air demand is 3 cfm (85 L/min) at 85 psi (5.9 bar). Confirm the voltage with Fryer before ordering if the building has 380-500 VAC service.
02
Both have 60 x 25 x 24 in (1,524 x 635 x 610 mm) of travel. The MB-16Q has a manual quill head, a 2 speed gear box and 4,500 rpm, and weighs 8,800 lb (3,992 kg). The MB-16R has a rigid head at 60 - 8,000 rpm, tool storage for 12 or 20 tools and weighs 10,000 lb (4,536 kg).
03
The table is 18 x 70 in (457 x 1,778 mm) with 5 T-slots 0.630 in (16 mm) wide and is rated 2,950 lb (1,338 kg) evenly distributed. The table top is 36 in (914 mm) from the floor.
04
The options sheet lists a table mounted splash guard with doors and a safety switch for the MB-16, and a full machine guard for the MB-16 with a door safety switch. Steel way covers and a flood coolant system are also listed as options.
