Fryer MC-60L

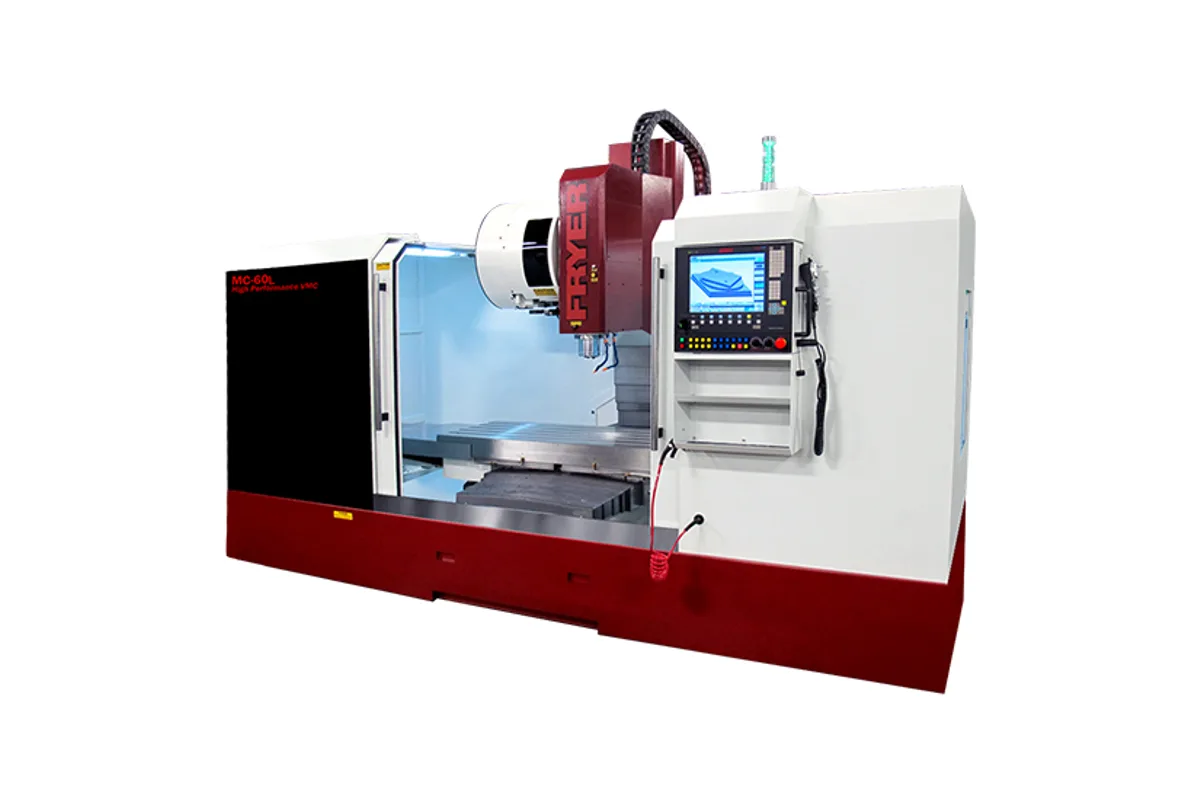

Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Fryer MC-60L cost?
Price estimate
We do not have a price for the Fryer MC-60L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 60 in (1,524 mm) of X travel the Fryer MC-60L is the longest linear way machining center in the MC-L series. It pairs a 24 x 67 in (610 x 1,702 mm) table with a 10,000 rpm Big Plus CAT 40 spindle, 30 hp (22.4 kW) peak, and it moves at 1,200 ipm (30.5 m/min) on all three axes, Z included.
That Z rapid is one of the few places where it separates from the box way MC-60B, which is listed at 900 ipm (22.9 m/min) in Z. Otherwise the two share an envelope: 30 in (762 mm) of Y, 28 in (711 mm) of Z, a 4,500 lb (2,041 kg) table and 20,000 lb (9,072 kg) of machine. The MC-60L adds six tools, halves the tool change to 1.5 seconds and raises the cutting feed limit to 1,200 ipm.
Extended travels are available here as on the box way model. The options sheet lists an extended 35 in (889 mm) Y travel and an extended 38 in (965 mm) Z travel for the MC-60. Fryer's table shows the effect in brackets: spindle centre to column goes from 31 in (787 mm) to 36 in (914 mm), and the maximum spindle nose to table distance from 32 in to 42 in.
Long aluminium parts are the natural work. Aerospace-style rails, extrusions and plates need the stroke, the spindle speed and a feed rate that can keep a small cutter loaded over a long path. Chip handling should be specified with the machine, since the chip auger and chip conveyor are separate options.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 60 in (1,524 mm) |
| Y Axis Travel | 30 in (762 mm); 35 in (889 mm) with the extended travel option |
| Z Axis Travel | 28 in (711 mm); 38 in (965 mm) with the extended travel option |
| Ballscrew Diameter | 1.57 in (40 mm) |
| Max Table Load | 4,500 lb (2,041 kg) |
| Table Size | 24 x 67 in (610 x 1,702 mm) |
| T-Slots | 5 / 0.708 in (18 mm) |
| Table Top to Floor | 32 in (813 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) peak |
| Max Spindle Speed | 60 - 10,000 rpm (12K, 15K, 21K, 30K optional) |
| Spindle Torque | 155 ft-lb (210 Nm) at 350 rpm |
| Spindle Taper | Big Plus CAT 40 (BT option) |
| Distance Spindle Nose to Table | 32 (42) - 4 in (813 (1,067) - 102 mm) |
| Spindle Center to Column | 31 in (787 mm); 36 in (914 mm) with the extended travel option |
| Tool Capacity | 30 station high speed arm type (40 option) |
| Tool Change Time | 1.5 seconds |
| Max Tool Diameter (full magazine) | 3.2 in (81 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5.5 in (140 mm) |
| Max Tool Weight | 15.4 lb (7.0 kg) |
| Max Tool Length | 11.8 in (300 mm) |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Resolution | 0.0001 in (0.0025 mm) |
| Cutting Feed Rate | 0.001 - 1,200 ipm (up to 30.5 m/min) |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 4,000 lb (1,814 kgf) X, Y, Z |
| Air Requirement | 90 psi (6.2 bar), 5 cfm (142 L/min) |
| Coolant Capacity | 90 gal (341 L) |
| Coolant Flow | 9 gpm (34 L/min) |
| Door Opening Width | 62 in (1,575 mm) |
| Power Requirement | 40 A, 380-500 VAC, 3 phase (208-250 VAC optional) |
| Shipping Dimensions | 161 x 89 x 93 in (4,089 x 2,261 x 2,362 mm) |
| Machine Dimensions | 161 x 112 x 112 in (4,089 x 2,845 x 2,845 mm) |
| Machine Weight | 20,000 lb (9,072 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 60 in (1,524 mm) of X with 1,200 ipm (30.5 m/min) rapids on X, Y and Z
- 30 hp (22.4 kW) peak, 10,000 rpm Big Plus CAT 40 spindle
- 24 x 67 in (610 x 1,702 mm) table rated 4,500 lb (2,041 kg)
- Extended 35 in (889 mm) Y and 38 in (965 mm) Z travels available
- 62 in (1,575 mm) door opening
Limitations
- Extended travels are options, not part of the base machine
- Chip auger and chip conveyor are listed as options
- Weighs 20,000 lb (9,072 kg) and occupies 161 x 112 in (4,089 x 2,845 mm)
- Peak axis thrust is 4,000 lb, against 4,400 lb on the MC-60B
Best For
Frequently Asked Questions
01
Standard travels are 60 x 30 x 28 in (1,524 x 762 x 711 mm). The options sheet lists an extended 35 in (889 mm) Y travel, with the spindle 36 in (914 mm) from the column, and an extended 38 in (965 mm) Z travel.
02
Ways, spindle and tool changer. The MC-60B is a box way machine with an 8,500 rpm spindle, 24 tools, a 3 seconds tool change and Z rapids of 900 ipm (22.9 m/min). The MC-60L uses roller type linear ways, with 10,000 rpm, 30 tools, a 1.5 seconds tool change and 1,200 ipm (30.5 m/min) on every axis.
03
155 ft-lb (210 Nm) at 350 rpm from a 30 hp (22.4 kW) peak inline motor. The spindle is Big Plus CAT 40 with a BT option and runs 60 - 10,000 rpm; 12,000 rpm and 15,000 rpm in-line spindles are optional.
04
Operating dimensions are 161 x 112 x 112 in (4,089 x 2,845 x 2,845 mm), shipping dimensions 161 x 89 x 93 in (4,089 x 2,261 x 2,362 mm), and weight 20,000 lb (9,072 kg). Power is 40 A at 380-500 VAC, 3 phase; air is 5 cfm (142 L/min) at 90 psi (6.2 bar).
