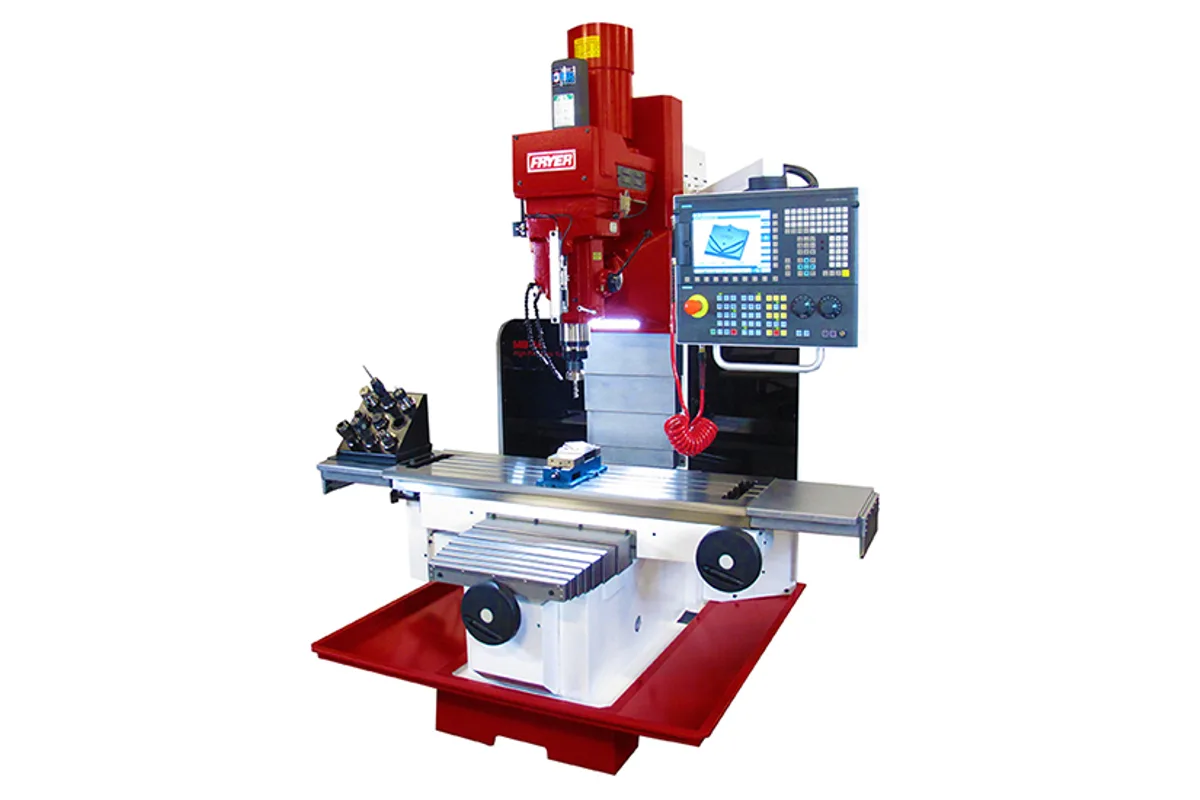

Fryer MB-14Q
Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
Accuracy
Repeatability
How much does the Fryer MB-14Q cost?
Price estimate
We do not have a price for the Fryer MB-14Q that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Fryer's MB-14Q sits in the middle of the MB-Q toolroom bed mills, with 40 x 20 x 20 in (1,016 x 508 x 508 mm) of travel and a 16 x 54 in (406 x 1,372 mm) table. Compared with the MB-10Q it adds reach in every axis while keeping the same quill, the same 1.26 in (32 mm) ballscrews and the same 80 in (2,032 mm) depth of floor.
The travels suit the die blocks, plates and fixtures a toolroom sees most often. A 20 in (508 mm) Y stroke, with the spindle centre 20 in from the column, reaches across the 16 in (406 mm) table with room to spare. The table is rated 2,450 lb (1,111 kg) evenly distributed and stands 33 in (838 mm) off the floor, a comfortable height for loading by hand.
Like its siblings this is a CNC that keeps the controls of a manual machine: handles on X and Y, a manual quill with 6 in (152 mm) of travel, and a head that swivels +/- 90°. Fryer's control offers "Do One" cycles for pockets, drilling and bolt circles and menu programming without codes, and it also reads standard G and M codes from CAD-CAM systems. Rigid tapping with a peck feature is listed among the features.
Power comes from a 10 hp (7.5 kW) peak motor through a 2 speed gear box into a CAT 40 spindle, 10-500 rpm in low and 100-4,500 rpm in high. Supply is 35 A at 208-250 VAC, 3 phase, so the machine can go into a building without high-voltage service; 380-500 VAC is the option here, the reverse of Fryer's larger machining centers.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 40 in (1,016 mm) |
| Y Axis Travel | 20 in (508 mm) |
| Z Axis Travel | 20 in (508 mm) |
| Max Table Load | 2,450 lb (1,111 kg) |
| Ballscrew Diameter | 1.26 in (32 mm) |
| Table Size | 16 x 54 in (406 x 1,372 mm) |
| T-Slots | 3 / 0.630 in (16 mm) |
| Table Top to Floor | 33 in (838 mm) |
| Spindle Motor Power | 10 hp (7.5 kW) peak |
| Spindle Torque | 40 ft-lb (54 Nm) high gear; 238 ft-lb (323 Nm) low gear |
| Max Spindle Speed | Low 10-500 rpm; High 100-4,500 rpm |
| Spindle Speed Ranges | 2 speed gear box |
| Spindle Taper | CAT 40 (NST 40 or BT 40 optional) |
| Quill Diameter | 4.125 in (105 mm) |
| Quill Travel | 6 in (152 mm) |
| Distance Spindle Nose to Table | 26 - 6 in (660 - 152 mm) |
| Spindle Center to Column | 20 in (508 mm) |
| Head Swivel | +/- 90° |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Rapid Traverse Xyz | 400 ipm (10.2 m/min) |
| Cutting Feed Rate | 0.001 - 300 ipm (up to 7.6 m/min) |
| Axis Thrust | 4,400 lb (1,996 kgf) |
| Air Requirement | 85 psi (5.9 bar), 3 cfm (85 L/min) |
| Coolant Capacity | 12 gal (45 L) |
| Coolant Flow | 3 gpm (11 L/min) |
| Power Requirement | 35 A, 208-250 VAC, 3 phase (380-500 VAC optional) |
| Shipping Dimensions | 54 x 80 x 78 in (1,372 x 2,032 x 1,981 mm) |
| Machine Dimensions | 113 x 80 x 106 in (2,870 x 2,032 x 2,692 mm) |
| Machine Weight | 6,000 lb (2,722 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 40 x 20 x 20 in (1,016 x 508 x 508 mm) travels with a 16 x 54 in (406 x 1,372 mm) table
- Standard supply is 208-250 VAC three-phase at 35 A
- "Do One" cycles and menu programming at the control, plus standard G and M code programs from CAD-CAM
- Positioning accuracy of +/- 0.0002 in (0.0051 mm) with repeatability of +/- 0.0001 in (0.0025 mm)
- 6,000 lb (2,722 kg) of machine built on Meehanite castings
Limitations
- Tools are changed by hand; the table lists no tool changer
- Operating width is 113 in (2,870 mm) because the table travels past the base at both ends
- Spindle power is 10 hp (7.5 kW) peak, well below the 30 hp (22.4 kW) of the MC-30B machining center
- Coolant capacity is 12 gal (45 L), and the flood coolant system itself is on the options sheet
Best For
Frequently Asked Questions
01
Operating dimensions are 113 x 80 x 106 in (2,870 x 2,032 x 2,692 mm) and the machine weighs 6,000 lb (2,722 kg). Shipping dimensions are 54 x 80 x 78 in (1,372 x 2,032 x 1,981 mm), which Fryer notes require some disassembly.
02
The MB-10Q has 32 x 17 x 19 in (813 x 432 x 483 mm) of travel, a 14 x 50 in (356 x 1,270 mm) table rated 2,000 lb (907 kg) and a weight of 5,000 lb (2,268 kg). The MB-14Q is larger in each of those figures. Spindle, quill, ballscrew size and feed rates are the same rows for both.
03
35 A at 208-250 VAC, 3 phase, with a change to 380-500 VAC listed as an option. Air demand is 3 cfm (85 L/min) at 85 psi (5.9 bar). The coolant tank holds 12 gal (45 L) and the pump delivers 3 gpm (11 L/min).
04
At the Fryer / Siemens 828-HS control. Fryer lists "Do One" cycles for pockets, drilling and bolt circles, simple menu programming with no codes of any kind, solid model part verification, and the ability to read standard G and M codes from CAD-CAM systems. A FANUC 0i MF Plus is offered as a control upgrade.
