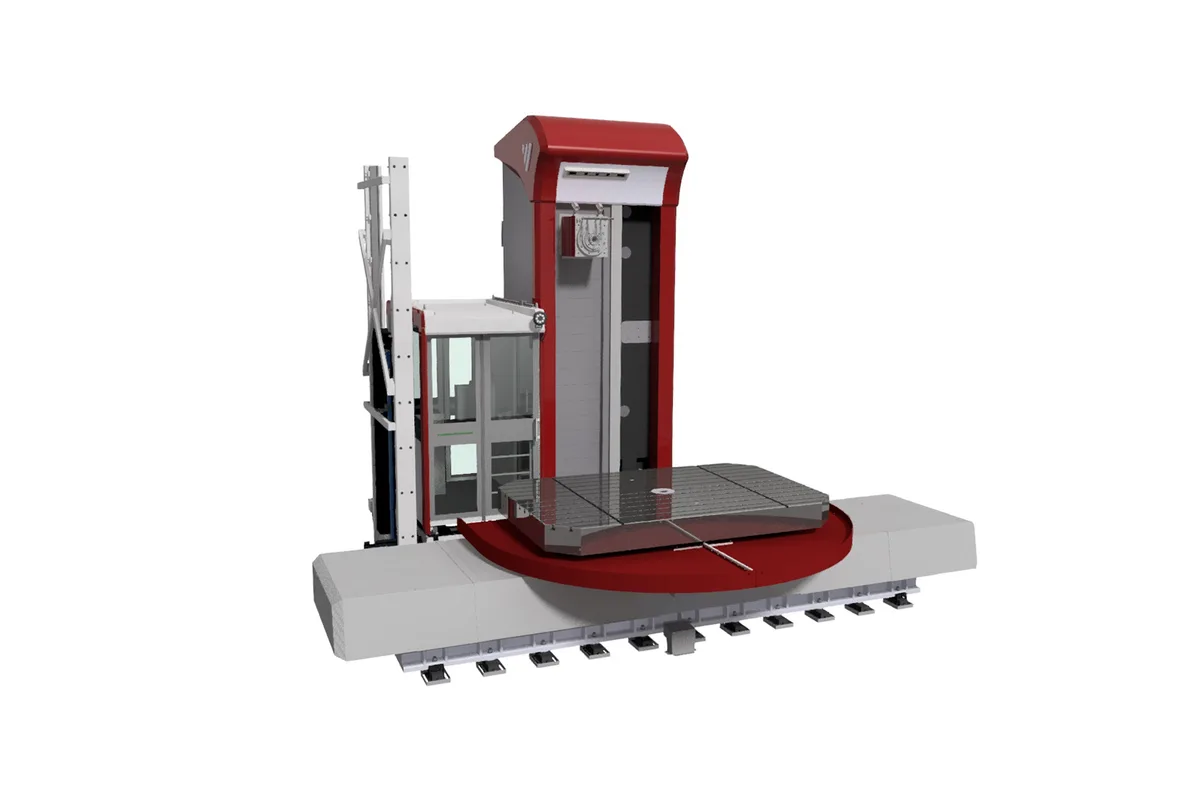

Fermat WFT 13/15 (R,L)
Image: fermatmachinery.com, Fermat
Key Specifications
Max Spindle
Spindle Taper
spindle diameter
spindle power heidenhain siemens
spindle torque heidenhain siemens
spindle power fanuc
How much does the Fermat WFT 13/15 (R,L) cost?
Price estimate
We do not have a price for the Fermat WFT 13/15 (R,L) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fermat WFT 13/15 (R,L) is the large table-type horizontal boring mill in Fermat's range, built with a 130 or 150 mm (5.1/5.9 in) spindle and a rotary table that carries 20,000 kg (44,092 lb) as standard. One page covers the whole family. The figure in the name is the spindle size, R marks the version with a ram, and the rapid feed rows are split by guideway type.
The work envelope is chosen from a grid. Table cross travel in X is 2,000/3,000/4,000/5,000 mm (78.7/118.1/157.5/196.9 in), with 6,100/6,300 mm (240.2/248.0 in) optional on the 25-50T tables. The headstock travels 2,000/2,500/3,000/3,500 mm (78.7/98.4/118.1/137.8 in) in Y and the column 1,500/2,000/2,500/3,000 mm (59.1/78.7/98.4/118.1 in) in Z. Spindle travel is 800 mm (31.5 in). On the WFT R a ram adds a 700 mm (27.6 in) stroke in V, which carries milling heads closer to the work than the spindle quill alone.
The 130 mm spindle runs to 3,400 rpm (4,000 rpm optional) and the 150 mm spindle to 3,000 rpm (3,500 rpm optional), both on SK 50, BIG+ or HSK100. Heidenhain and Siemens machines get 41/61.5 kW or 53/77.9 kW (S1/S6) and up to 2,713/3,989 Nm. Fanuc machines start at 37/45 kW.
Rapid feed depends on the guideways: 12,000 mm/min (472.4 ipm) in X and Y on box ways, and 20,000 mm/min (787.4 ipm) in X on the linear versions. Table load options are 10,000, 25,000 and 50,000 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 130/150 mm (5.1/5.9 in) |
| Spindle Taper | SK 50 (DIN, MAS 45°, ANSI)/BIG+/HSK100 |
| Max Spindle Speed | V130 - 3,400 rpm (opt. 4,000 rpm); V150 - 3,000 rpm (opt. 3,500 rpm) |
| Spindle Power Heidenhain Siemens | S1/S6: 41/61.5 kW (55.0/82.5 hp); 53/77.9 kW (71.1/104.5 hp) |
| Spindle Torque Heidenhain Siemens | S1/S6: 2,099/3,149 Nm (1,548/2,323 lb-ft); 2,713/3,989 Nm (2,001/2,942 lb-ft) |
| Spindle Power Fanuc | S1/S3: 37/45 kW (49.6/60.3 hp); 53/77.9 kW (71.1/104.5 hp) |
| Spindle Torque Fanuc | S1/S3: 2,210/2,687 Nm (1,630/1,982 lb-ft); 2,713/3,989 Nm (2,001/2,942 lb-ft) |
| X Axis Travel | 2,000/3,000/4,000/5,000 mm (78.7/118.1/157.5/196.9 in); optional for 25-50T: 6,100/6,300 mm (240.2/248.0 in) |
| Y Axis Travel | 2,000/2,500/3,000/3,500 mm (78.7/98.4/118.1/137.8 in) |
| Z Axis Travel | 1,500/2,000/2,500/3,000 mm (59.1/78.7/98.4/118.1 in) |
| W Axis Travel | 800 mm (31.5 in) |
| Ram Stroke V Axis | 700 mm (27.6 in), optional (for WFT R) |
| Rapid Traverse Xy | 12,000, 12,000 mm/min (472.4, 472.4 ipm) (box GW); 20,000, 15,000 mm/min (787.4, 590.6 ipm) (Lin. GW Standard); 20,000, 25,000 mm/min (787.4, 984.3 ipm) (Lin GW Exclusive) |
| Rapid Traverse Zw | 8,500, 10,000 mm/min (334.6, 393.7 ipm) (box GW); 20,000, 10,000 mm/min (787.4, 393.7 ipm) (Lin. GW Standard); 25,000, 10,000 mm/min (984.3, 393.7 ipm) (Lin GW Exclusive) |
| Rapid Traverse V | 10,000 mm/min (393.7 ipm) |
| Rapid Traverse B | 2 rpm (opt. 5 rpm) |
| Max Table Load | 20,000 kg (44,092 lb); opt. 10,000 / 25,000 / 50,000 kg (22,046 / 55,115 / 110,229 lb) |
| Table Size T10 | 1,200 x 1,200, 1,200 x 1,400, 1,400 x 1,600, 1,600 x 1,600, 1,400 x 1,800, 1,600 x 1,800 mm (47.2 x 47.2, 47.2 x 55.1, 55.1 x 63.0, 63.0 x 63.0, 55.1 x 70.9, 63.0 x 70.9 in) |
| Table Size T20 | 1,600 x 1,800 / 1,800 x 2,200 / 1,800 x 2,600 / 2,000 x 2,400 / 2,500 x 2,500 / 2,000 x 3,000 mm (63.0 x 70.9 / 70.9 x 86.6 / 70.9 x 102.4 / 78.7 x 94.5 / 98.4 x 98.4 / 78.7 x 118.1 in) |
| Table Size T25 50 | 2,000 x 2,000 / 2,000 x 2,500 / 2,000 x 3,000 / 2,500 x 2,500 / 2,500 x 3,000 / 2,500 x 3,500 / 3,000 x 3,000 / 3,000 x 3,500 / 3,500 x 3,500 / 2,500 x 5,000 mm (78.7 x 78.7 / 78.7 x 98.4 / 78.7 x 118.1 / 98.4 x 98.4 / 98.4 x 118.1 / 98.4 x 137.8 / 118.1 x 118.1 / 118.1 x 137.8 / 137.8 x 137.8 / 98.4 x 196.9 in) |
Specifications sourced from fermatmachinery.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 20,000 kg (44,092 lb) standard table load, with tables up to 50,000 kg listed as options
- Wide envelope grid: X to 5,000 mm (196.9 in), or 6,100/6,300 mm (240.2/248.0 in) on the 25-50T tables, and Y to 3,500 mm (137.8 in)
- Optional 700 mm (27.6 in) ram on the WFT R in addition to 800 mm (31.5 in) of spindle travel
- Up to 53/77.9 kW (S1/S6) and 2,713/3,989 Nm at the spindle
- Three pallet changer types, pick-up stations and an operator cabin on the accessory list
Limitations
- On box guideways the rapid feed is 12,000 mm/min (472.4 ipm) in X and Y and 8,500 mm/min (334.6 ipm) in Z
- The 150 mm spindle is limited to 3,000 rpm, or 3,500 rpm with the option
- The ram is an option tied to the WFT R, so a standard machine reaches only with the 800 mm (31.5 in) spindle
- Table rotation is 2 rpm, with 5 rpm optional
Best For
Frequently Asked Questions
01
The table ties R to the ram: the row for the V-axis ram stroke, 700 mm (27.6 in), is marked optional and for the WFT R. Fermat does not spell out the L on this page. On its smaller WFT 10/11 L it is the version with linear guideways, and the rapid feed rows here separate box guideways from two linear versions, Standard and Exclusive.
02
It depends on the guideways. On box ways X and Y rapid at 12,000 mm/min (472.4 ipm), Z at 8,500 mm/min (334.6 ipm) and W at 10,000 mm/min (393.7 ipm). The linear Standard row gives 20,000 and 15,000 mm/min for X and Y and 20,000 mm/min for Z; the Exclusive row gives 20,000 and 25,000 mm/min for X and Y and 25,000 mm/min for Z. The ram's V axis moves at 10,000 mm/min (393.7 ipm).
03
The standard load is 20,000 kg (44,092 lb), with 10,000, 25,000 and 50,000 kg as options. T10 plates run from 1,200 x 1,200 mm to 1,600 x 1,800 mm, T20 plates from 1,600 x 1,800 mm to 2,000 x 3,000 mm, and T25-50 plates from 2,000 x 2,000 mm to 2,500 x 5,000 mm.
04
With a Heidenhain or Siemens control, 41/61.5 kW or 53/77.9 kW (S1/S6), with torque of 2,099/3,149 Nm or 2,713/3,989 Nm. With Fanuc, 37/45 kW or 53/77.9 kW (S1/S3), with 2,210/2,687 Nm or 2,713/3,989 Nm. Top speed is 3,400 rpm on the 130 mm spindle and 3,000 rpm on the 150 mm spindle before options.
05
The WFT 10/11 has a 100/110 mm (3.9/4.3 in) spindle with 730 mm (28.7 in) of travel and a 10,000 kg (22,046 lb) table. The WFT 13/15 has a 130/150 mm (5.1/5.9 in) spindle with 800 mm (31.5 in) of travel, a 20,000 kg (44,092 lb) table and Y travel up to 3,500 mm (137.8 in).
