Fermat GANTRY HEAVY

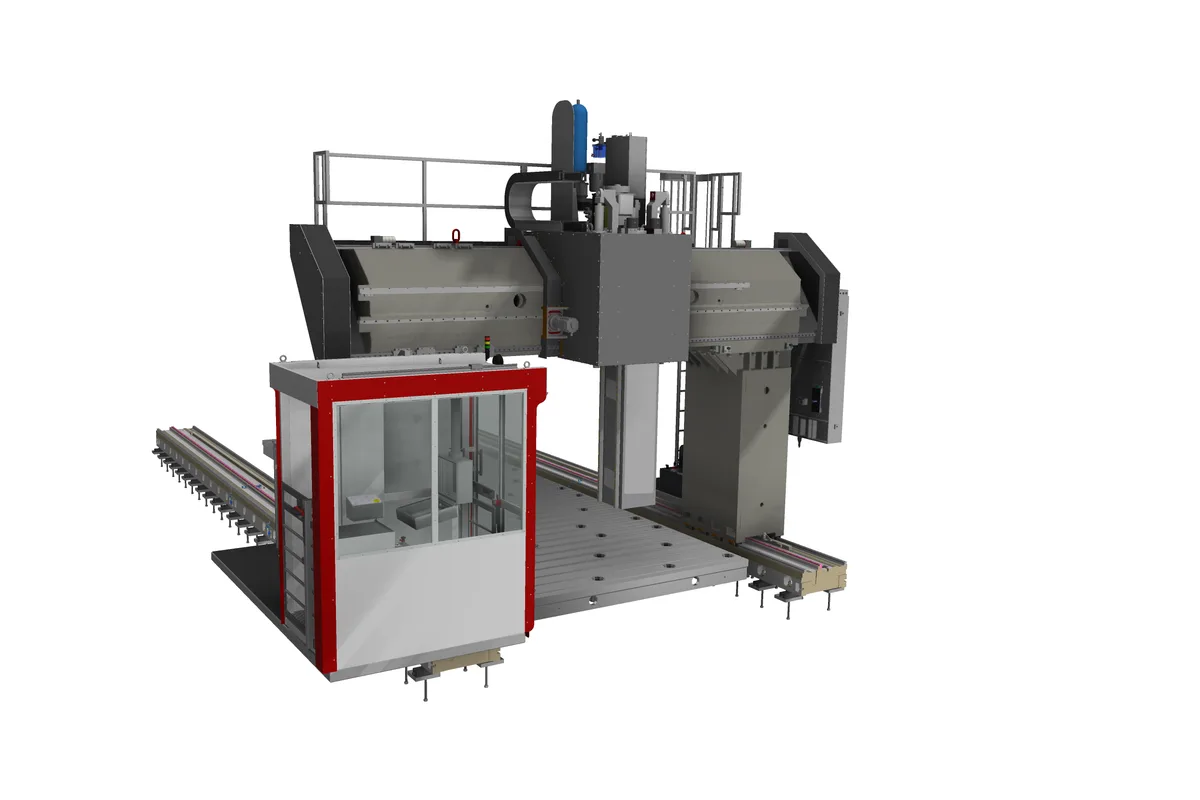

Image: fermatmachinery.com, Fermat
Key Specifications
Max Spindle
Spindle Taper
spindle diameter
spindle power heidenhain siemens
spindle torque heidenhain siemens
x axis travel
How much does the Fermat GANTRY HEAVY cost?
Price estimate
We do not have a price for the Fermat GANTRY HEAVY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fermat GANTRY HEAVY puts a horizontal boring mill's spindle on a gantry. Two columns travel 10,000 - 50,000 mm (393.7 - 1,968.5 in) along the floor, the headstock crosses 6,100 mm (240.2 in) between them, and a ram comes down 1,600 mm (63.0 in) with a 160 mm (6.3 in) boring spindle inside.
That spindle is the unusual part. A gantry normally carries a milling spindle in its ram; Fermat says this one uses the spindle proven on its floor-type horizontal mills, with a 1000mm extension in the W-axis. A quill that feeds out of the ram lets the machine bore deep, accurately aligned holes from above, work that otherwise means moving the part to a boring mill.
The drive is a single rating: 74/91 kW (S1/S6) and 3,349/4,120 Nm with a Heidenhain or Siemens control, at up to 2,500 rpm on SK 50, BIG+ or HSK100. Torque of that order is for large face mills and boring bars, and the speed ceiling is what is given up for it.
Fermat describes the machine as multifunctional, covering drilling, milling and turning, and built for machining workpieces in one setup. It is equipped with floor plates 4,000 mm (157.5 in) wide. Rapid feed is 20,000 mm/min (787.4 ipm) in X and Y and 10,000 mm/min (393.7 ipm) in Z.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 160 mm (6.3 in) |
| Spindle Taper | SK 50 (DIN, MAS 45°, ANSI)/BIG+/HSK100 |
| Max Spindle Speed | 2,500 rpm |
| Spindle Power Heidenhain Siemens | S1/S6: 74/91 kW (99.2/122.0 hp) |
| Spindle Torque Heidenhain Siemens | S1/S6: 3,349/4,120 Nm (2,470/3,039 lb-ft) |
| X Axis Travel | 10,000 - 50,000 mm (393.7 - 1,968.5 in) |
| Y Axis Travel | 6,100 mm (240.2 in) |
| Z Axis Travel | 1,600 mm (63.0 in) |
| Floor Plate Width | 4,000 mm (157.5 in) |
| Rapid Traverse Xyz | 20,000, 20,000, 10,000 mm/min (787.4, 787.4, 393.7 ipm) |
Specifications sourced from fermatmachinery.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 160 mm (6.3 in) boring spindle in a gantry ram, with a 1000mm W-axis extension per Fermat
- X travel of 10,000 - 50,000 mm (393.7 - 1,968.5 in)
- 74/91 kW (S1/S6) and 3,349/4,120 Nm
- 6,100 mm (240.2 in) of Y travel between the columns over 4,000 mm (157.5 in) floor plates
- Drilling, milling and turning named by Fermat for one-setup machining
Limitations
- One Y travel of 6,100 mm (240.2 in); the GANTRY HEAVY-DUTY offers 5,800/6,800/7,800 mm (228.3/267.7/307.1 in)
- Spindle speed stops at 2,500 rpm
- Z rapid feed is 10,000 mm/min (393.7 ipm), half that of X and Y
- The table has no W-axis row; the 1000mm extension appears only in Fermat's description
Best For
Frequently Asked Questions
01
The GANTRY HEAVY-DUTY is the larger frame, with Y travels of 5,800/6,800/7,800 mm (228.3/267.7/307.1 in), a ram of 1,500/2,000 mm (59.1/78.7 in) and floor plate widths of 3,000/4,000/5,000 mm (118.1/157.5/196.9 in). The GANTRY HEAVY has one size: 6,100 mm (240.2 in) of Y, a 1,600 mm (63.0 in) ram and a 4,000 mm (157.5 in) floor plate. Spindle and drive rows are the same.
02
Yes. The table lists a spindle diameter of 160 mm (6.3 in), and Fermat states that the spindle, proven on its floor-type horizontal mills, has a 1000mm extension in the W-axis. The ram itself travels 1,600 mm (63.0 in) in Z.
03
X-axis travel of the columns is listed as 10,000 - 50,000 mm (393.7 - 1,968.5 in). Y is 6,100 mm (240.2 in) and the floor plate is 4,000 mm (157.5 in) wide, so the length is the dimension that is fitted to the workpiece.
