Fermat WF 13
This model was not found in Fermat's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Spindle Taper
Spindle Power
Accuracy
Repeatability
spindle diameter
x axis travel
How much does the Fermat WF 13 cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from Fermat. Configuration moves it a long way.
Overview
The Fermat WF 13 is a CNC boring mill built around a 130 mm spindle with an ISO 50 (SK 50) taper, 37 kW of continuous spindle power and up to 5,000 Nm of torque in the low speed range. Fermat's current lineup does not include this model, and the listed figures could not be checked against a maker page. Anyone looking at a used machine should confirm each row against the machine's own documentation.
Travels depend on configuration: X runs from 3,000 mm to 5,000 mm and Y from 2,000 mm to 3,500 mm, while Z is fixed at 1,000 mm and the spindle adds 800 mm of W travel. Work sits on a standard floor plate rated at 20,000 kg. A B-axis rotary table is optional and carries up to 10,000 kg, half the floor plate figure, so the heaviest parts stay on the plate and are machined from one side per setup.
The spindle range is 2 – 2,000 RPM. With 5,000 Nm available only at the low end, the machine suits large boring bars and face mills in steel and cast iron more than small tools that need speed. The automatic tool changer is also an option, listed at up to 40 tools, so a particular machine may have been delivered without one. Listed positioning accuracy is ±0.01 mm with ±0.006 mm repeatability, and the control is a customer choice of Siemens 840D sl or Heidenhain TNC 640.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 130 mm |
| Spindle Taper | ISO 50 (SK 50) |
| X Axis Travel | 3,000 mm to 5,000 mm (configuration dependent) |
| Y Axis Travel | 2,000 mm to 3,500 mm (configuration dependent) |
| Z Axis Travel | 1,000 mm |
| W Spindle Travel | 800 mm |
| Spindle Speed Range | 2 – 2,000 RPM |
| Spindle Motor Power | 37 kW (continuous) |
| Spindle Torque | up to 5,000 Nm (at low speed range) |
| Table Load Capacity | 20,000 kg (standard floor plate) |
| Rotary Table | Optional B-axis rotary table, up to 10,000 kg capacity |
| Tool Magazine | Optional ATC up to 40 tools |
| CNC Control | Siemens 840D sl or Heidenhain TNC 640 (customer choice) |
| Positioning Accuracy | ±0.01 mm |
| Repeatability | ±0.006 mm |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Up to 5,000 Nm of spindle torque in the low speed range, with 37 kW of continuous power behind it
- Standard floor plate listed at 20,000 kg for heavy castings and weldments
- X travel from 3,000 mm to 5,000 mm and Y from 2,000 mm to 3,500 mm, depending on configuration
- 800 mm of W spindle travel on top of 1,000 mm of Z for reaching into deep housings
- Listed positioning accuracy of ±0.01 mm and repeatability of ±0.006 mm
Limitations
- The B-axis rotary table is an option and is limited to 10,000 kg, half the 20,000 kg floor plate load
- The automatic tool changer is optional (up to 40 tools), so a given used machine may have none
- Spindle speed tops out at 2,000 RPM, which restricts small-diameter tooling
- Not in the current lineup, and none of the listed figures has been confirmed against a maker page
Best For
Frequently Asked Questions
01
No. The WF 13 is not in Fermat's current lineup, and it may be an older model. The listed figures on this page could not be checked against a maker page, so on a used machine verify the travels, the control and the fitted options against the nameplate and the delivery documents. Several rows are configuration dependent.
02
The listed figures give X from 3,000 mm to 5,000 mm and Y from 2,000 mm to 3,500 mm, both depending on configuration. Z is 1,000 mm and the spindle travels a further 800 mm on W. Ask for the X and Y of the specific machine, because the range between the shortest and longest versions is wide.
03
The standard floor plate is listed at 20,000 kg. The optional B-axis rotary table carries up to 10,000 kg, so a part that needs the full plate rating cannot be put on the rotary table and has to be machined from one side per setup.
04
The control is listed as a customer choice of Siemens 840D sl or Heidenhain TNC 640. The automatic tool changer is an option with up to 40 tools and an ISO 50 (SK 50) spindle taper. Check both on any machine offered, since neither is fixed by the model name.
Videos

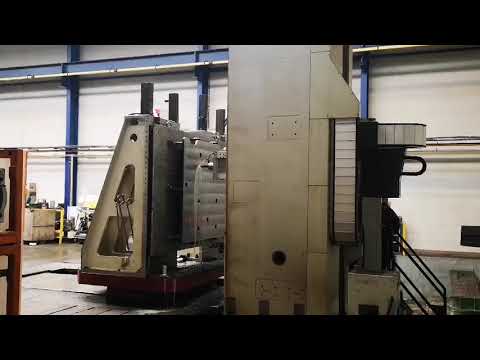

FERMAT Used Machinery
