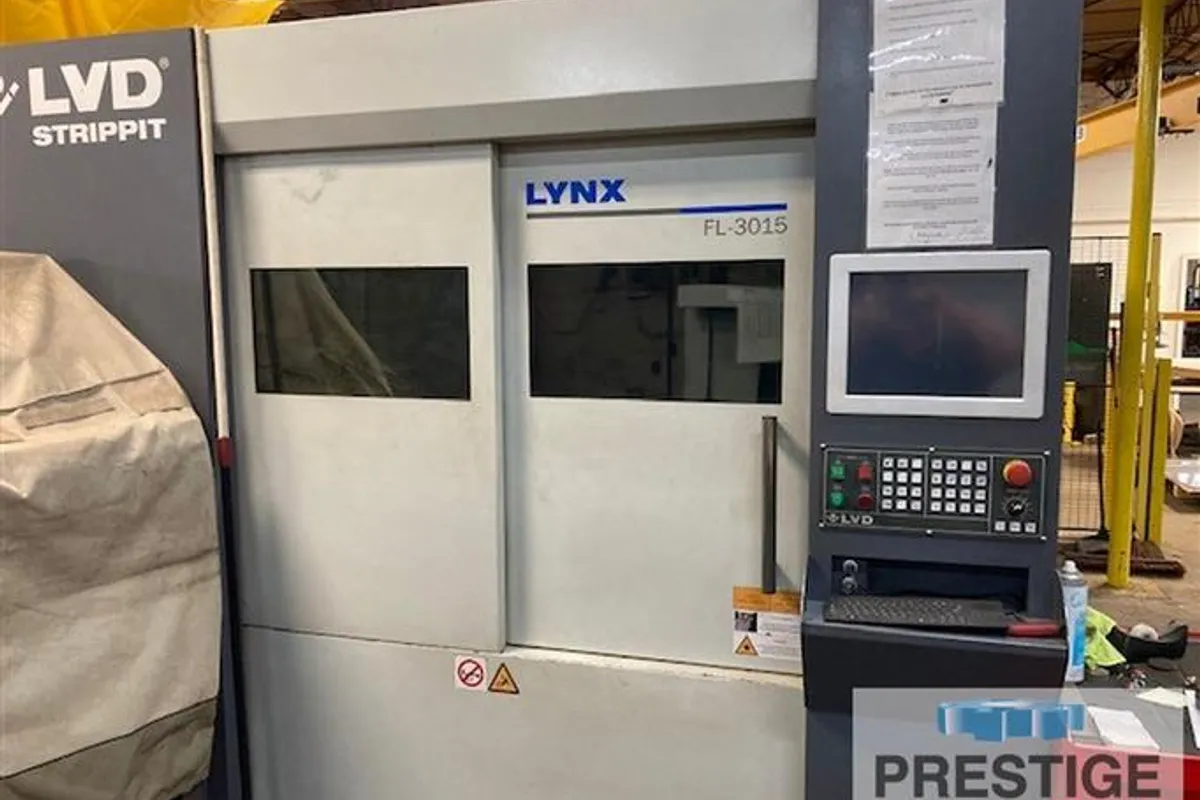

LVD Lynx FL-3015
This model was not found in LVD's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
X Travel
Y Travel
Z Travel
Accuracy
max sheet size
max sheet weight on table
How much does the LVD Lynx FL-3015 cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from LVD. Configuration moves it a long way.
Overview
The LVD Lynx FL-3015 is a fiber laser cutting machine for sheet up to 3,050 x 1,525 mm (120 x 60 in), built around an IPG YLS fiber source of 2, 3 or 4 kW. The power choice decides more than thickness. The 2 kW machine carries a Precitec LightCutter head, while the 3 and 4 kW machines carry the Precitec ProCutter.
In mild steel the limits are 12 mm at 2 kW, 15 mm at 3 kW and 20 mm at 4 kW. Stainless steel is the material where the step from 3 to 4 kW buys no extra thickness: 6 mm at 2 kW, then 12 mm at both higher powers. Aluminium goes 8 mm, 12 mm and 15 mm. Copper and brass share one set of figures, 4 mm, 6 mm and 8 mm. A shop cutting mostly stainless up to 12 mm can stop at 3 kW, and the 4 kW source earns its place on mild steel and aluminium near the top of the range.
Travels are 3,070 mm (120.9 in) in X and 1,560 mm (61.4 in) in Y. Z travel depends on which of the two tables is under the head: 80 mm over the upper table and 240 mm over the lower. A table changeover takes 26 s. Positioning speed in X and Y reaches 120 m/min (4,724 ipm), with repetitive accuracy of ±0.025 mm and positioning accuracy of ±0.050 mm to VDI/DGQ 3441.
Each table carries up to 750 kg (1,653 lb) of sheet. That figure deserves a check against thick plate, because a full-size mild steel sheet at the 20 mm limit comes close to it. The machine measures 11,015 x 5,680 mm with a height of 2,500 mm (433.7 x 223.6 x 98.4 in) and weighs approximately 11,000 kg (24,251 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Sheet Size | 3,050 x 1,525 mm (120 x 60 in) |
| X-Axis Travel | 3,070 mm (120.9 in) |
| Y-Axis Travel | 1,560 mm (61.4 in) |
| Z-Axis Travel | 80 mm upper table / 240 mm lower table |
| Max Sheet Weight on Table | 750 kg (1,653 lb) |
| Table Changeover Time | 26 s |
| Max Positioning Speed Xy | 120 m/min (4,724 ipm) |
| Repetitive Accuracy | ±0.025 mm |
| Positioning Accuracy | ±0.050 mm (VDI/DGQ 3441) |
| Laser Type | IPG YLS fiber, 2 / 3 / 4 kW |
| Max Cutting Mild Steel | 12 mm (2 kW) / 15 mm (3 kW) / 20 mm (4 kW) |
| Max Cutting Stainless Steel | 6 mm (2 kW) / 12 mm (3 kW) / 12 mm (4 kW) |
| Max Cutting Aluminium | 8 mm (2 kW) / 12 mm (3 kW) / 15 mm (4 kW) |
| Max Cutting Copper | 4 mm (2 kW) / 6 mm (3 kW) / 8 mm (4 kW) |
| Max Cutting Brass | 4 mm (2 kW) / 6 mm (3 kW) / 8 mm (4 kW) |
| Cutting Head | Precitec LightCutter (2 kW) / Precitec ProCutter (3 and 4 kW) |
| Machine Dimensions | 11,015 x 5,680 mm, height 2,500 mm (433.7 x 223.6 x 98.4 in) |
| Approximate Weight | 11,000 kg (24,251 lb) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Three source options, 2, 3 or 4 kW, with a thickness limit stated for five materials at each power
- The 4 kW machine cuts up to 20 mm mild steel, 12 mm stainless steel and 15 mm aluminium
- Table changeover takes 26 s
- Positioning speed of 120 m/min (4,724 ipm) in X and Y
- Copper and brass are covered: 4 mm at 2 kW, 6 mm at 3 kW and 8 mm at 4 kW
Limitations
- Sheet weight on the table is limited to 750 kg (1,653 lb)
- Source power stops at 4 kW, and mild steel at 20 mm
- Stainless steel capacity does not rise between 3 kW and 4 kW: both are 12 mm
- The 2 kW machine has the Precitec LightCutter head, not the ProCutter, and is limited to 6 mm stainless steel
Best For
Frequently Asked Questions
01
At 2 kW: 12 mm mild steel, 6 mm stainless steel, 8 mm aluminium, 4 mm copper and 4 mm brass. At 3 kW: 15 mm mild steel, 12 mm stainless steel, 12 mm aluminium, 6 mm copper and 6 mm brass. At 4 kW: 20 mm mild steel, 12 mm stainless steel, 15 mm aluminium, 8 mm copper and 8 mm brass.
02
It depends on the laser power. The 2 kW machine is fitted with the Precitec LightCutter and the 3 and 4 kW machines with the Precitec ProCutter. The source in every case is an IPG YLS fiber laser.
03
The machine has an upper and a lower table, and the head has a different clearance over each. Z travel is 80 mm over the upper table and 240 mm over the lower table. Swapping one table for the other takes 26 s.
04
Repetitive accuracy is ±0.025 mm and positioning accuracy is ±0.050 mm, stated to VDI/DGQ 3441. Maximum positioning speed in X and Y is 120 m/min (4,724 ipm) over travels of 3,070 mm (120.9 in) and 1,560 mm (61.4 in).
05
The machine dimensions are 11,015 x 5,680 mm with a height of 2,500 mm (433.7 x 223.6 x 98.4 in). Approximate weight is 11,000 kg (24,251 lb). The table itself is rated for a sheet of up to 750 kg (1,653 lb).
