GF Machining Solutions CNC Laser Cutting

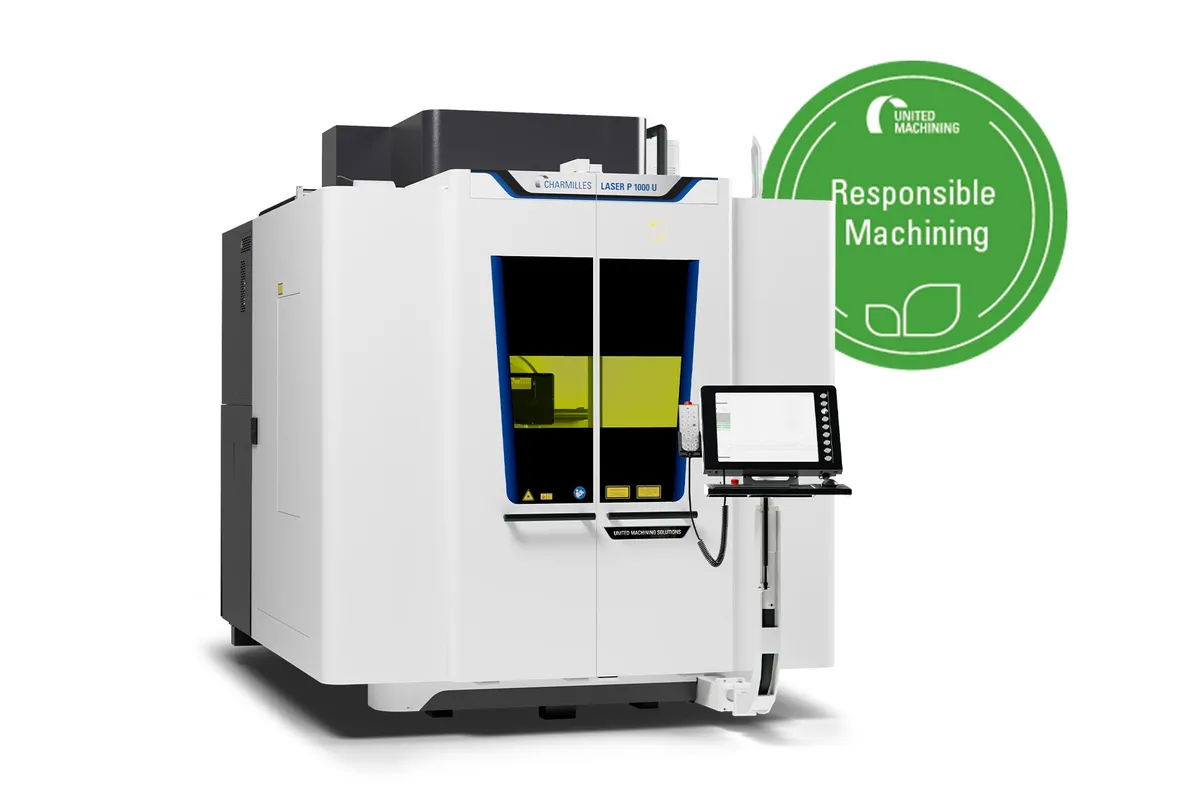

GF Machining CHARMILLES LASER P 600 U

$300,000 - $500,000 Updated 2026-03-19

Key Specifications

X / Y / Z Travel

600 x 460 x 830 mm (23.6 x 18.1 x 32.7 in)

Laser Tilt (A-axis)

-55° / +135°

Rotary (B-axis)

360°, max. 160°/s

B-axis Table Diameter

180 mm

Max 5-Axis Envelope

370 mm dia. x 530 mm

Max Workpiece Volume

420 x 540 mm

Overview

The GF Machining Solutions CHARMILLES LASER P 600 U is a precision 5-axis laser texturing system in the LASER P series, designed for high-accuracy surface texturing and micromachining on small-to-medium workpieces. The P series is optimized for precision applications requiring tighter tolerances and finer feature resolution than the larger S series platforms.

X/Y/Z travels of 600 x 460 x 830 mm provide a generous work envelope relative to the compact machine footprint. The 5-axis configuration features a laser tilting axis (A-axis) with -55/+135 degree range and a rotary B-axis with 160 degrees per second maximum speed on a 180 mm diameter table. Maximum 5-axis machining volume covers a diameter of 370 mm with 530 mm height.

The Ytterbium pulsed fiber laser is available in 20W, 50W, or 100W configurations, with focal lengths of 100, 160, or 254 mm selectable for different feature sizes and working distances. Maximum workpiece weight in 5-axis mode is 75 kg, and the maximum workpiece volume is 420 x 540 mm.

The LASER P 600 U weighs approximately 5,000 kg with dimensions of 2,050 x 2,280 x 2,770 mm. Maximum power consumption is 4 kW, making it energy-efficient for continuous production operation.

The P series differentiates from the S series through its focus on precision positioning, finer laser spot sizes, and tighter process control for applications where surface feature accuracy is the primary requirement — such as micro-structured functional surfaces, fine-pitch textures on optical molds, and precision-engraved components.

Full Specifications

Parameter	Value
X / Y / Z Travel	600 x 460 x 830 mm (23.6 x 18.1 x 32.7 in)
Laser Tilt (A-Axis)	-55° / +135°
Rotary (B-Axis)	360°, max. 160°/s
B-Axis Table Diameter	180 mm
Max 5-Axis Envelope	370 mm dia. x 530 mm
Max Workpiece Volume	420 x 540 mm
Max Workpiece Weight (5-Axis)	75 kg (165 lb)
Laser Source	Ytterbium pulsed fiber laser, 20W / 50W / 100W
Focal Lengths	100 / 160 / 254 mm
Max Power Consumption	4 kW
Machine Dimensions	2,050 x 2,280 x 2,770 mm
Machine Weight	approx. 5,000 kg (11,023 lb)
Machine Dimensions	2695 x 3727 x 2933 mm106.1 x 146.7 x 115.4 in
Approx Machine Weight	6500 kg14330 lbs
Focal Length	100/160/254 mm3.93/6.3/10 in
Ytterbium Pulsed Fibre Laser	50 / 100 W
Max Power Consumption	4 kW
X Y Z Travels	1200 x 900 x 1200 mm47.2 x 35.4 x 47.2 in
Laser Titling Axis A	180, 210 °/s, °
B Axis Max Speed	180 °/s. °
B Axis Table Diameter	800 mm31.6 in
Max 5 Axis Machining Volume	Ø 510 x 480 mmØ 20.1 x 18.9 in
Max Workpiece Volume	510 x 480 mm20.1 x 18.9 in
Max Workpiece Weight 5 Axis	1200 kg2646 lbs

Specifications sourced from gfms.com — verified 2026-03-28

Strengths & Limitations

Strengths

Precision-focused P series delivers tighter tolerances and finer features than the S series
75 kg workpiece capacity and 370 mm 5-axis diameter handle most small-to-medium mold inserts
830 mm Z-travel provides excellent clearance for tall workpieces and fixtures
Multiple focal length options (100/160/254 mm) optimize spot size for different feature scales
Low 4 kW power consumption reduces operating costs for continuous production
Compact machine footprint fits into standard shop floor installations

Limitations

180 mm B-axis table diameter limits the size of parts that can be rotated in 5-axis mode
P series commands a premium over equivalent S series platforms for the precision features
Maximum laser power of 100W is slower for large-area texturing than higher-power S series options
A-axis range of -55/+135 degrees may limit access to steep undercuts on complex geometries

Best For

Precision mold insert texturing requiring fine-pitch surface features and tight tolerances Optical mold texturing for light-guide patterns, lens textures, and micro-optic structures Medical implant tooling with controlled surface micro-structures for osseointegration Watch and luxury goods component texturing requiring high-resolution surface patterns Functional surface texturing for tribological, hydrophobic, or anti-reflective properties

Frequently Asked Questions

01 What is the difference between the LASER P and LASER S series?

The P series is optimized for precision applications with finer feature resolution, tighter positioning, and smaller focal spot sizes. The S series is designed for larger workpieces with higher-power lasers for faster large-area texturing. The P series targets precision-critical small-to-medium work.

02 How does the P 600 U compare to the P 1000 U?

The P 1000 U has larger X-travel (1,000 vs 600 mm), a larger B-axis table (380 vs 180 mm diameter), higher workpiece weight (150 vs 75 kg), and larger 5-axis envelope (460 vs 370 mm diameter). The P 600 U is more compact and lower cost.

03 What focal length should I choose?

100 mm focal length provides the smallest spot size for the finest features. 160 mm is a general-purpose choice balancing spot size and working distance. 254 mm provides the longest working distance for accessing deep cavities but with a larger spot size.

04 Can the P 600 U do femtosecond processing?

The standard P 600 U uses nanosecond Ytterbium pulsed fiber lasers. For femtosecond cold-ablation capability, the LASER S series with Femto Flexipulse sources is the appropriate platform.
