Ermak Fibermak Momentum Gen-5 SM 8x2.6

Q: How much does the Ermak Fibermak Momentum Gen-5 SM 8x2.6 cost?

The price estimate for the Ermak Fibermak Momentum Gen-5 SM 8x2.6 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-momentum-gen-5-sm-8x2.6#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

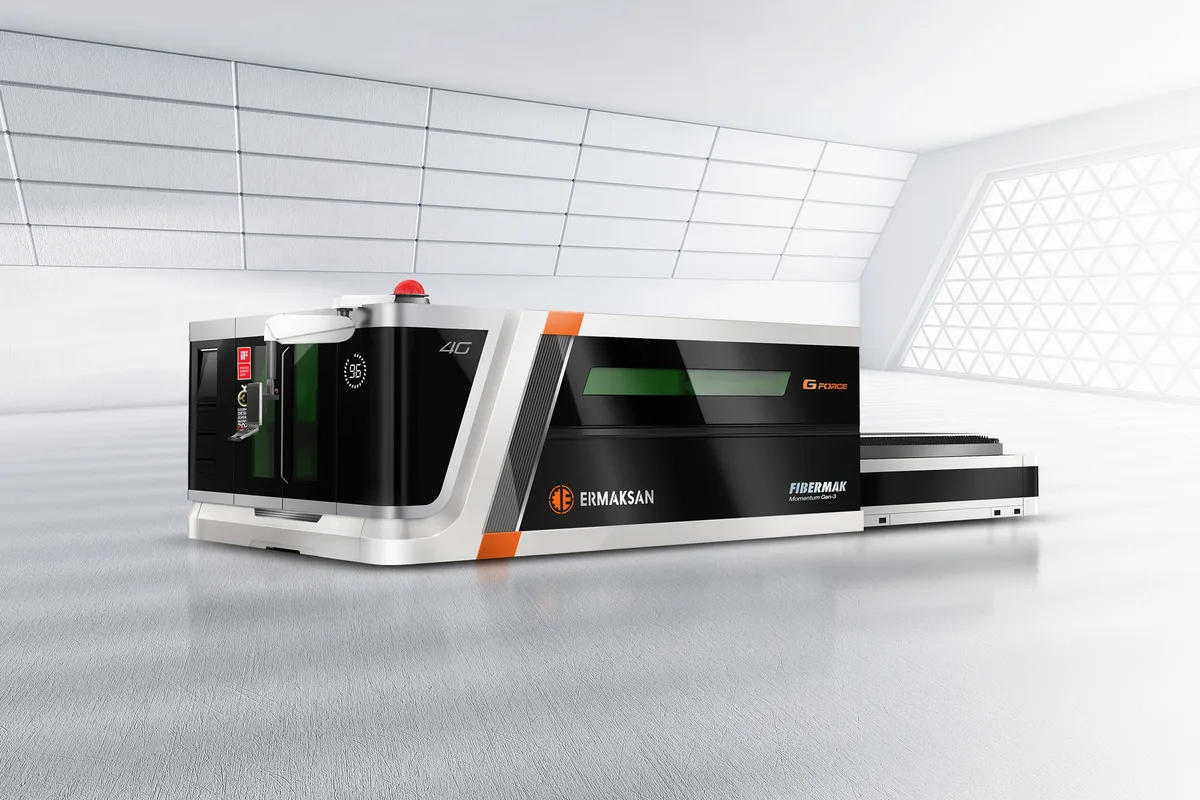

Ermak Fibermak Momentum Gen-5 series fiber laser cutting machine

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm

Repeatability

±0.015 mm

cutting area

8,000 x 2,600 mm (315.0 x 102.4 in)

max table load

6,500 kg (14,330 lb)

x axis travel

8,200 mm (322.8 in)

y axis travel

2,700 mm (106.3 in)

How much does the Ermak Fibermak Momentum Gen-5 SM 8x2.6 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 8x2.6 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Eight metres long and 2,600 mm wide: the Ermak Fibermak Momentum Gen-5 SM 8x2.6 has a working area of 8,000 x 2,600 mm (315.0 x 102.4 in) and pallets rated for 6,500 kg (14,330 lb).

The moving mass of a bridge this size shows in the table. Acceleration is 1.2 G, and the servo axes reach 80 m/min singly and 113 m/min as a resultant. Those are plate-cutting dynamics. In 20 mm or 25 mm mild steel the feed is set by the laser, not by the axes, so the lower figures cost little there; in thin sheet they would.

A pallet change takes 90 s. With two pallets, the operator unloads one finished nest and loads the next plate while the other pallet is under the head.

Dimensions are 21,078 x 6,700 x 2,310 mm and the weight is 38,000 kg (83,774 lb). The Fibermak Momentum Gen-5 SM 8x2 is listed at 21,135 x 6,020 x 2,310 mm, so the wide model asks for extra width and no extra length.

Ermak lists resonators up to 30,000 W for the range. The plain capacity figures in its table end at 8,000 W, with 25 mm in mild steel, 15 mm in stainless steel and aluminum, and an average consumption of 34 kW.

Full Specifications

Parameter	Value
Cutting Area	8,000 x 2,600 mm (315.0 x 102.4 in)
Max Table Load	6,500 kg (14,330 lb)
X Axis Travel	8,200 mm (322.8 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	1.2 G
Max Axis Speed	113 m/min resultant; 80 m/min single axis (X, Y)
Max Axis Speed Linear Motor	141 m/min resultant; 100 m/min single axis (X, Y)
Pallet Changer	2 pallets (90 s)
Machine Dimensions	21,078 x 6,700 x 2,310 mm
Machine Weight	38,000 kg (83,774 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz (YLS 2000 to YLS 12000)
Power Range	10-105% (YLS 2000 to YLS 12000)
Laser Wavelength	1070 ± 5 nm (YLS 2000 to YLS 6000)
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

8,000 x 2,600 mm working area with 2,700 mm of Y travel
6,500 kg (14,330 lb) per pallet for full plates
No longer than the two-metre model of this length class
Linear motor line in the table: 141 m/min resultant
Nozzle cleaning and calibration are automatic and standard

Limitations

1.2 G acceleration, the first step below 1.5 G in the range
113 m/min resultant on servo motors
90 s to change pallets, which pays only on long nests
38,000 kg (83,774 lb) needs a prepared foundation

Best For

Full 8,000 mm plates in structural and tank fabrication Thick mild steel where the laser limits the feed Large single parts that need both length and width

Frequently Asked Questions

01 What are the axis figures of the Ermak Fibermak Momentum Gen-5 SM 8x2.6?

X travel is 8,200 mm, Y travel 2,700 mm and Z travel 150 mm. Acceleration is 1.2 G, with 80 m/min per axis and 113 m/min resultant on servo motors.

02 How heavy a plate can be loaded?

Each of the two pallets is rated for 6,500 kg (14,330 lb) over a working area of 8,000 x 2,600 mm. The shuttle table changes pallets in 90 s.

03 Is it much larger than the SM 8x2?

The Fibermak Momentum Gen-5 SM 8x2 measures 21,135 x 6,020 x 2,310 mm and weighs 35,000 kg. This machine is 21,078 x 6,700 x 2,310 mm and 38,000 kg (83,774 lb), so the difference is mostly in width.

04 What accuracy does the table state?

Positioning accuracy of ±0.03 mm and repetition accuracy of ±0.015 mm. Ermak's table gives these two values once for every size of the range, this one included.
