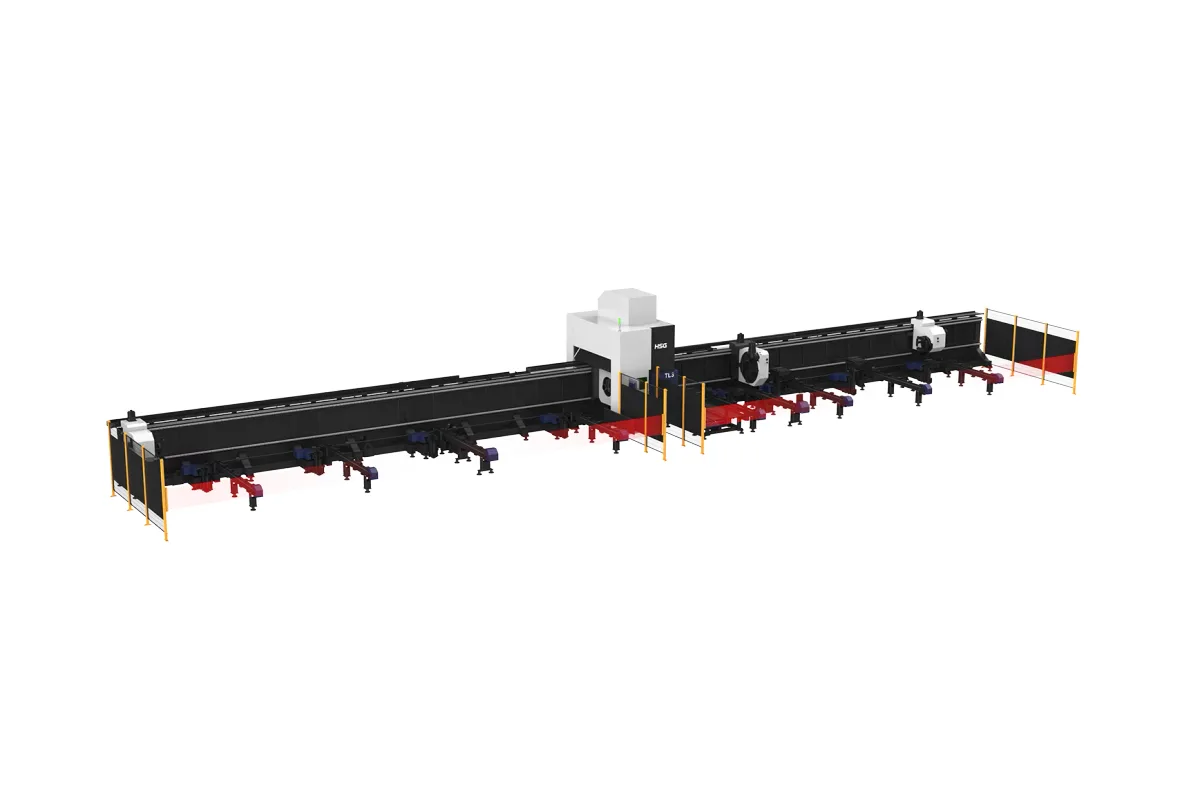

HSG TL3 PRO
Image: hsglaser.com, HSG Laser
Key Specifications
laser power
round tube capacity
square tube capacity
max single tube weight
max linkage speed
max acceleration
How much does the HSG TL3 PRO cost?
Price estimate
We do not have a price for the HSG TL3 PRO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HSG TL3 PRO is a heavy tube laser that also reaches down to small sections. Its round capacity starts at Φ20 mm and ends at Φ360 mm (0.8-14.2 in), square tube runs from 20 × 20 to 360 × 360 mm, and a single tube can weigh 1,600 kg (3,527 lb). Laser power is 6,000-20,000 W.
The low end of that range is the point of the PRO. The TL3 beside it in HSG's table starts at Φ40 mm and has no 4+1 twin chucks; on the PRO they are standard. HSG describes the 4+1 full-floating structure as combining clamping and support, so one machine holds a 20 mm tube without crushing it and a 360 mm tube without dropping it.
It is also the quicker of the pair, at 100 m/min maximum linkage speed and 1.0 G, where the TL3 is listed at 80 m/min and 0.8 G. HSG credits faster chuck rotation and a new algorithm as well and claims a 35.45% efficiency improvement over the previous generation.
Material handling is built around not stopping. Loading and unloading happen while the machine cuts, with 4 loading and 5 unloading follow-up supports, and unloading is of the receiving type to stop tube rolling. The bed is stress-relief annealed with a dual-rail drive. Bevel cutting is an option. HSG's table gives no tube length or positioning accuracy for this model.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 6,000-20,000 W |
| Round Tube Capacity | Φ20-Φ360 mm (0.8-14.2 in) |
| Square Tube Capacity | 20 × 20 to 360 × 360 mm (0.8 × 0.8 to 14.2 × 14.2 in) |
| Max Single Tube Weight | 1,600 kg (3,527 lb) |
| Max Linkage Speed | 100 m/min |
| Max Acceleration | 1.0 G |
| Bevel Cutting | Optional |
| Twin Chucks 4 plus 1 | Standard |
Specifications sourced from hsglaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Round tube from Φ20 to Φ360 mm (0.8-14.2 in) on one machine, with 4+1 twin chucks as standard
- Single tube weight up to 1,600 kg (3,527 lb)
- 100 m/min maximum linkage speed and 1.0 G, against 80 m/min and 0.8 G on the TL3
- Loading and unloading run during cutting, using 4 loading and 5 unloading follow-up supports
- Laser power from 6,000 to 20,000 W
Limitations
- Bevel cutting is listed as optional
- The table states no tube length range and no positioning accuracy
- Square tube stops at 360 × 360 mm (14.2 × 14.2 in); larger hollow section needs the TL660
- The 35.45% efficiency figure is HSG's comparison with its own previous generation, not a measured cycle time
Best For
Frequently Asked Questions
01
Three rows of HSG's table. The TL3 PRO cuts round tube from Φ20 mm where the TL3 starts at Φ40 mm, it runs at 100 m/min and 1.0 G instead of 80 m/min and 0.8 G, and it has the 4+1 twin chucks as standard. Power and the 1,600 kg (3,527 lb) tube weight match.
02
HSG calls it a 4+1 full-floating chuck structure that combines clamping and support functions, and says it makes it easy for one machine to handle both large and small tubes. It is standard on the TL3 PRO and is the reason the range begins at Φ20 mm.
03
The weight of a single tube is 1,600 kg (3,527 lb). HSG pairs that with a stress-relief annealed bed, a heavy-duty dual-rail drive and 4 loading plus 5 unloading follow-up supports that carry the tube over its full length.
04
Bevel cutting is listed as optional in the technical parameters. The table does not give a bevel angle for this model, so confirm the range of the bevel head with HSG when the option is quoted.
