Ermak Fibermak Momentum Gen-5 SM 6x2

Q: How much does the Ermak Fibermak Momentum Gen-5 SM 6x2 cost?

The price estimate for the Ermak Fibermak Momentum Gen-5 SM 6x2 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-momentum-gen-5-sm-6x2#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

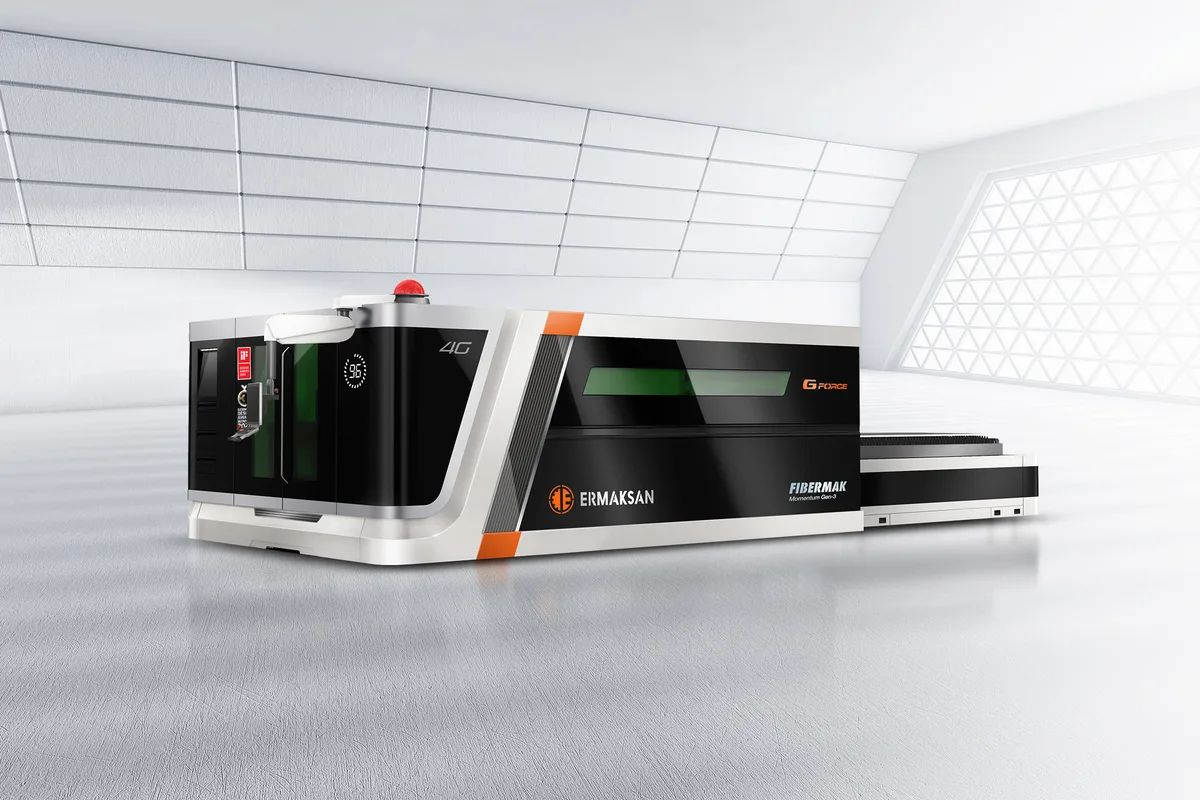

Ermak Fibermak Momentum Gen-5 series fiber laser cutting machine

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm

Repeatability

±0.015 mm

cutting area

6,150 x 2,000 mm (242.1 x 78.7 in)

max table load

4,000 kg (8,818 lb)

x axis travel

6,200 mm (244.1 in)

y axis travel

2,050 mm (80.7 in)

How much does the Ermak Fibermak Momentum Gen-5 SM 6x2 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 6x2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Ermak Fibermak Momentum Gen-5 SM 6x2 stretches the two-metre table to a 6,150 x 2,000 mm (242.1 x 78.7 in) working area. It is the longest model that Ermak still lists at 2.5 G.

That combination is the reason to pick it. Six-metre sheet is normally a plate format, yet this machine moves like the small ones: 100 m/min per axis, 141 m/min combined on servo motors. A shop cutting long thin panels gets full dynamics along all 6,200 mm of X travel.

Each pallet carries 4,000 kg (8,818 lb), and a change takes 65 s. Longer pallets simply take longer to travel, which is worth counting when programs are short.

Overall dimensions are 16,794 x 5,900 x 2,310 mm. The width is the one listed for the four-metre model, so only the length of the hall decides between them. Weight is 24,500 kg (54,012 lb).

Among the listed features, Vision Auto Remnant detects leftover sheet and Auto Sheet assigns sheets with camera support. Both are useful on a long table, where a part-used sheet is often worth keeping.

Full Specifications

Parameter	Value
Cutting Area	6,150 x 2,000 mm (242.1 x 78.7 in)
Max Table Load	4,000 kg (8,818 lb)
X Axis Travel	6,200 mm (244.1 in)
Y Axis Travel	2,050 mm (80.7 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	2.5 G
Max Axis Speed	141 m/min combined; 100 m/min single axis (X, Y)
Max Axis Speed Linear Motor	170 m/min combined; 120 m/min single axis (X, Y)
Pallet Changer	2 pallets (65 s)
Machine Dimensions	16,794 x 5,900 x 2,310 mm
Machine Weight	24,500 kg (54,012 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz (YLS 2000 to YLS 12000)
Power Range	10-105% (YLS 2000 to YLS 12000)
Laser Wavelength	1070 ± 5 nm (YLS 2000 to YLS 6000)
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

6,150 x 2,000 mm working area at a full 2.5 G
4,000 kg (8,818 lb) per pallet
5,900 mm wide, no wider than the four-metre model
141 m/min combined axis speed over 6,200 mm of X travel
Camera-supported remnant and sheet detection listed as standard

Limitations

65 s pallet change, more than twice that of the smallest model
16,794 mm of length including the shuttle table
Sheet width stays at 2,000 mm
Bevel cutting needs an optional head

Best For

Long panels and trailer or enclosure parts up to 6,150 mm Two three-metre sheets loaded end to end on one pallet High-speed thin sheet work on a long table

Frequently Asked Questions

01 Why is the working area of the SM 6x2 listed as 6,150 mm and not 6,000 mm?

The table for the Ermak Fibermak Momentum Gen-5 SM 6x2 gives 6,150 x 2,000 mm (242.1 x 78.7 in), with 6,200 mm of X travel. The maker's page does not explain the extra length; it leaves a margin beyond a six-metre sheet.

02 Is this size slower than the shorter machines?

Not in the axis figures. Acceleration is 2.5 G and the servo speeds are 100 m/min per axis and 141 m/min combined. Only the pallet change is slower, at 65 s.

03 What does the machine weigh?

24,500 kg (54,012 lb), with machine dimensions of 16,794 x 5,900 x 2,310 mm. Each of the two pallets is rated for 4,000 kg (8,818 lb) of sheet.

04 Which features come as standard?

Ermak lists frequency cutting mode, fly-cut, fast piercing, countersink by laser, nozzle cleaning and calibration, Vision Auto Remnant and Auto Sheet as standard. The anti-collision system, mixed gas and the automatic nozzle changer are options.
