Ermak Fibermak Momentum Gen-5 SM 2.5x1.25

Q: How much does the Ermak Fibermak Momentum Gen-5 SM 2.5x1.25 cost?

The price estimate for the Ermak Fibermak Momentum Gen-5 SM 2.5x1.25 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ermak-fibermak-momentum-gen-5-sm-2.5x1.25#price; the request is passed to Ermak or an authorised dealer.

Specs verified 2026-10-05 · ermaksan.com.tr Updated 2026-10-05

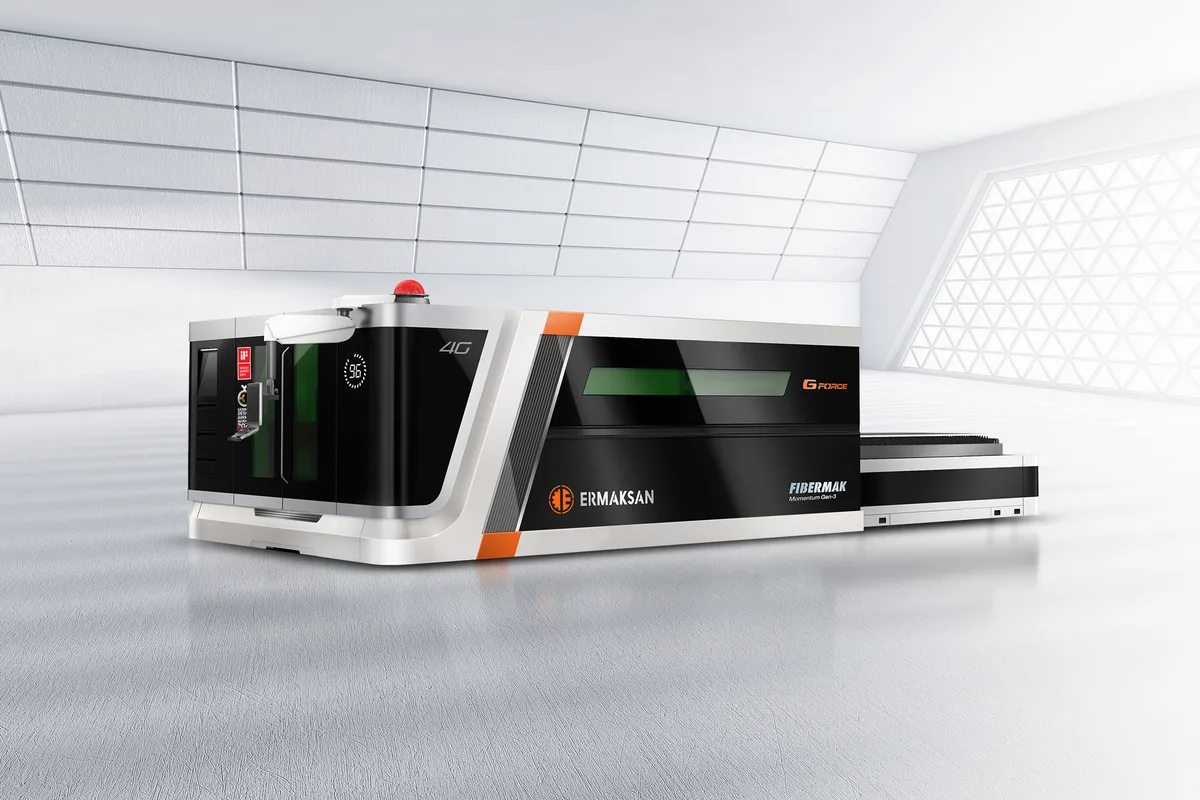

Ermak Fibermak Momentum Gen-5 series fiber laser cutting machine

Image: ermaksan.com.tr, Ermak

Key Specifications

Accuracy

±0.03 mm

Repeatability

±0.015 mm

cutting area

2,500 x 1,250 mm (98.4 x 49.2 in)

max table load

1,000 kg (2,205 lb)

x axis travel

2,550 mm (100.4 in)

y axis travel

1,270 mm (50 in)

How much does the Ermak Fibermak Momentum Gen-5 SM 2.5x1.25 cost?

Price estimate

Uncertain

We do not have a price for the Ermak Fibermak Momentum Gen-5 SM 2.5x1.25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Ermak Fibermak Momentum Gen-5 SM 2.5x1.25 is the entry size of Ermak's end-loading flatbed fiber laser range. It takes sheets of 2,500 x 1,250 mm (98.4 x 49.2 in) on two shuttle pallets, each rated for 1,000 kg (2,205 lb).

Small tables suit thin work, and the dynamics match that. The gantry runs at 2.5 G with 100 m/min per axis and 141 m/min combined. Ermak's table also carries a line for a linear motor version at 120 m/min per axis and 170 m/min combined, so ask which drive a given offer includes.

Pallets swap in 30 s. No other column of the table is quicker, and on short nests that matters as much as cutting speed, because the head waits less often for material.

The installation measures 8,190 x 3,460 x 2,200 mm and weighs 12,500 kg (27,557 lb). Shops that are short on length rather than width should also look at the Fibermak SL 2.5x1.25, a side-loading design listed at 5,200 x 4,200 x 2,610 mm.

Beckhoff supplies the CNC, and Metalix and Lantek are the CAD/CAM packages named in the table. Resonators start at 2,000 W, where the listed maximum is 16 mm in mild steel and 8 mm in stainless steel.

Full Specifications

Parameter	Value
Cutting Area	2,500 x 1,250 mm (98.4 x 49.2 in)
Max Table Load	1,000 kg (2,205 lb)
X Axis Travel	2,550 mm (100.4 in)
Y Axis Travel	1,270 mm (50 in)
Z Axis Travel	150 mm (5.9 in)
Acceleration	2.5 G
Max Axis Speed	141 m/min combined; 100 m/min single axis (X, Y)
Max Axis Speed Linear Motor	170 m/min combined; 120 m/min single axis (X, Y)
Pallet Changer	2 pallets (30 s)
Machine Dimensions	8,190 x 3,460 x 2,200 mm
Machine Weight	12,500 kg (27,557 lb)
Machine Axes	4-Axis (X, Y, Z, U)
Positioning Accuracy	±0.03 mm
Repeatability	±0.015 mm
CNC Control	Beckhoff
CAD CAM Software	Metalix, Lantek
Network Connection	Ethernet
Control Panel	21.5-inch screen 1920 x 1080, alphanumeric keyboard, PLC keys, touchscreen keyboard
Laser Power	2,000, 3,000, 4,000, 6,000, 8,000, 10,000, 12,000, 15,000, 20,000 or 30,000 W (YLS resonators)
Max Cutting Thickness Mild Steel	16, 18, 20, 25, 25 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Stainless Steel	8, 10, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Aluminum	6, 8, 12, 15, 15 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Brass	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Max Cutting Thickness Copper	4, 5, 6, 8, 8 mm (YLS 2000 to YLS 8000)
Average Consumption	18, 20, 22, 28, 34 kW (YLS 2000 to YLS 8000)
Cutting Head	Precitec Procutter 2.0 (YLS 2000 to YLS 6000)
Pulse Frequency	5 kHz (YLS 2000 to YLS 12000)
Power Range	10-105% (YLS 2000 to YLS 12000)
Laser Wavelength	1070 ± 5 nm (YLS 2000 to YLS 6000)
Assist Gases	Steel: oxygen (0.5-6 bar); stainless steel: nitrogen (0.5-25 bar); aluminum: dry air or nitrogen (0.5-25 bar)

Specifications sourced from ermaksan.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

30 s pallet change, the quickest in the Momentum Gen-5 table
2.5 G acceleration with 141 m/min combined axis speed
Narrowest installation of the range at 3,460 mm
Fast piercing, fly-cut and automatic nozzle cleaning are listed as standard features
Positioning accuracy of ±0.03 mm with ±0.015 mm repeatability

Limitations

Sheets larger than 2,500 x 1,250 mm do not fit
Each pallet is limited to 1,000 kg (2,205 lb)
Bevel heads, the automatic nozzle changer and the anti-collision system are options
8,190 mm of length is needed for an end-loading shuttle on a small table

Best For

Thin sheet parts nested on 2,500 x 1,250 mm stock Job shops with many short programs per shift A first fiber laser where floor width is tight

Frequently Asked Questions

01 How big a sheet does the Ermak Fibermak Momentum Gen-5 SM 2.5x1.25 cut?

The working area is 2,500 x 1,250 mm (98.4 x 49.2 in). X travel is 2,550 mm and Y travel 1,270 mm, with 150 mm of Z. Each of the two pallets carries 1,000 kg (2,205 lb).

02 Is the linear motor drive standard?

The table gives two speed lines: servo motors at 100 m/min per axis and 141 m/min combined, and linear motors at 120 m/min and 170 m/min. Ermak's page describes the series with servo motors, so treat the linear figures as a variant to confirm with the maker.

03 Which laser powers are offered on this size?

The resonator table runs from 2,000 W to 30,000 W in ten steps. Average consumption is listed as 18 kW with the 2,000 W source and 28 kW with the 6,000 W source.

04 How does it differ from the side-loading model of the same sheet size?

The Fibermak SL 2.5x1.25 changes pallets in 20 s and is 5,200 mm long but 4,200 mm wide. This machine is 8,190 mm long and 3,460 mm wide, so the choice comes down to the shape of the free floor.
