Yawei HLG-30240
Key Specifications
Accuracy
Repeatability
cutting area
x axis travel
y axis travel
z axis travel
How much does the Yawei HLG-30240 cost?
Price estimate
We do not have a price for the Yawei HLG-30240 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Twenty-four metres by three: the Yawei HLG-30240 has the largest machining range of any laser with fixed figures on Yawei's site, 24,000 x 3,000 mm (944.9 x 118.1 in). It is a floor-mounted gantry machine, and its table is rated for 28,000 kg (61,728 lb).
Unlike the HLG-25120, this size comes with a complete row of installation data. The machine dimension is 30,000 x 7,000 x 2,200 mm (1,181.1 x 275.6 x 86.6 in). X-axis travel is 24,040 mm (946.5 in) and Y-axis travel 3,020 mm (118.9 in).
A table this long is usually worked in zones. Plate is cut in one zone while finished parts are lifted out and new plate is laid in another, so the gantry is cutting for most of the shift and the crane is never waiting on it. The linkage speed of 90 m/min is modest, but on a zoned table transit time is a small part of the day.
Accuracy is ±0.1 mm (±0.0039 in) positioning and ±0.06 mm (±0.0024 in) repeat positioning. Z-axis travel is 180 mm (7.1 in). Power options are 12, 20, 30, 40, 60 or 80 kW. Yawei says the series handles ultra-long and ultra-wide sheet and can be customised, and it describes a lightweight high-strength beam and a dust removal duct that moves with the cutting zone. On a 28,000 kg table loading, floor design is a civil engineering job to settle early.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 24,000 x 3,000 mm (944.9 x 118.1 in) |
| X Axis Travel | 24,040 mm (946.5 in) |
| Y Axis Travel | 3,020 mm (118.9 in) |
| Z Axis Travel | 180 mm (7.1 in) |
| Max Trajectory Speed Xy | 90 m/min |
| Positioning Accuracy | ±0.1 mm (±0.0039 in) |
| Repeatability | ±0.06 mm (±0.0024 in) |
| Max Table Load | 28,000 kg (61,728 lb) |
| Machine Layout Dimensions | 30,000 x 7,000 x 2,200 mm (1,181.1 x 275.6 x 86.6 in) |
| Laser Power | 12, 20, 30, 40, 60 or 80 kW |
Specifications sourced from en.yawei.cc — verified 2026-10-05
Strengths & Limitations
Strengths
- Machining range of 24,000 x 3,000 mm (944.9 x 118.1 in)
- Table load of 28,000 kg (61,728 lb)
- Long table allows zoned cutting and unloading
- Power options from 12 kW to 80 kW
- Dynamic dust removal air duct
Limitations
- Needs 30,000 x 7,000 x 2,200 mm of floor
- Positioning accuracy of ±0.1 mm (±0.0039 in)
- Linkage speed of 90 m/min
- Z-axis travel of 180 mm (7.1 in)
Best For
Frequently Asked Questions
01
The machining range is 24,000 x 3,000 mm (944.9 x 118.1 in) and the dimension of the machine is 30,000 x 7,000 x 2,200 mm (1,181.1 x 275.6 x 86.6 in).
02
The maximum table load is 28,000 kg (61,728 lb). For the smaller HLG-25120 Yawei gives no fixed figure and says it depends on the processing width.
03
X-axis travel is 24,040 mm (946.5 in), Y-axis travel 3,020 mm (118.9 in) and Z-axis travel 180 mm (7.1 in). Maximum X-Y linkage speed is 90 m/min.
04
Yawei describes the HLG as professionally customised for large-format, ultra-long and ultra-wide sheet, and its page carries a row of other customisable sizes. This document covers the listed 24,000 x 3,000 mm format only.
More from Yawei
Other CNC Laser Cutting Machines
Trumpf TruLaser Cell 3000

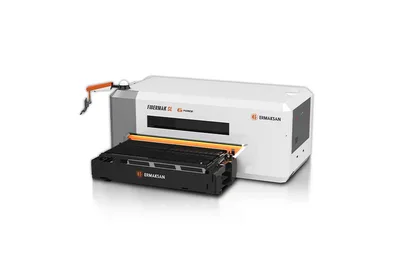

Ermak Fibermak SL 4x2
