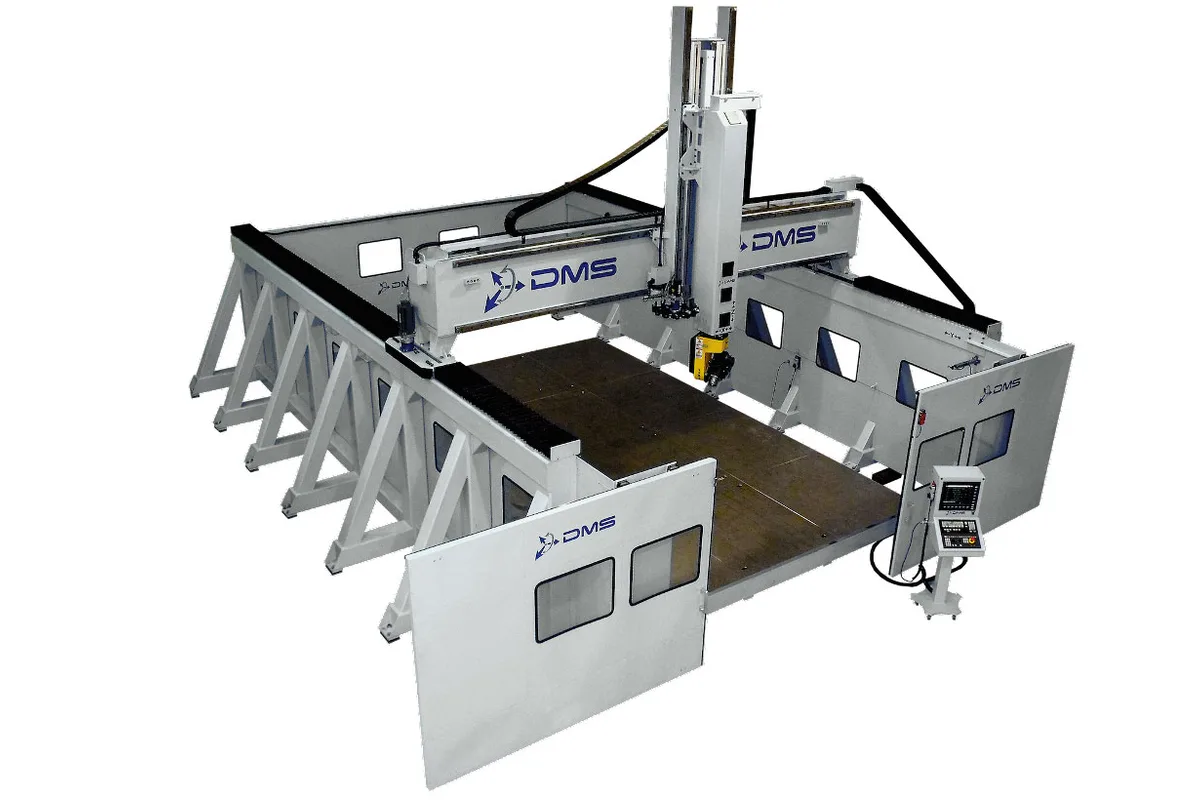

DMS Mammoth5
Image: dmscncrouters.com, DMS
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the DMS Mammoth5 cost?
Price estimate
We do not have a price for the DMS Mammoth5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The DMS Mammoth5 is a large-format 5-axis CNC router for parts that are measured in tens of feet: aerospace molds, marine patterns, automotive prototypes and big composite structures, in the examples DMS gives. Y is listed from 5 ft to 100 ft, X from 5 ft to 20 ft, and Z at 48 in or 72 in (1,219 or 1,829 mm).
How the work gets in and out matters as much as the travel on a machine this size. DMS offers sliding doors on both the front and the back, so a long plug or mold can be loaded from either end, and a universal fixture table that it says cuts the downtime between part runs.
Sizes are built from a bridge stroke of 5, 10, 12, 15 or 20 ft and a depth in multiples of 5 ft, with 12 ft and 22 ft also listed. All linear axes are rack and pinion on a heavy-duty steel gantry and frame. Average speed over the three axes is 1,333 in/min (33.9 m/min). Motor encoders are absolute, scales can be added as an option, and both the HMI and the NC are Fagor.
The head tilts 115° or 130° on B. C turns 363° each way on a DMS head, optionally continuous, or 320° on a Hiteco head, at spindle speeds up to 24,000 rpm. The tool changer can be a rack or a carousel with 10, 12 or 18 tools, the largest count DMS lists alongside the Yellowstone5. The product page and the data sheet give different spindle power ranges for the Mammoth5, so the spindle and head have to be fixed in the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5 ft min / 20 ft max (1,524 / 6,096 mm) |
| Y Axis Travel | 5 ft min / 100 ft max (1,524 / 30,480 mm) |
| Z Axis Travel | 48 in / 72 in (1,219 / 1,829 mm) |
| B Axis Range | (+/-) 115° / 130° |
| C Axis Range | DMS: (+/-) 363° (continuous optional); Hiteco: (+/-) 320° |
| Max Spindle Speed | 24,000 rpm |
| Drive System | Rack & pinion |
| Feedback Encoders | Scales available as option |
| CNC Control | Fagor + Fagor (HMI + NCs) |
| Table Size | Bridge stroke: 5, 10, 12, 15 or 20 ft; depth: multiples of 5 ft, 12 ft, 22 ft |
| Average Speed | 1,333 in/min (33.9 m/min), average of 3 axes |
| Tool Changer Type | Rack / carousel / manual |
| Tool Capacity | 10 / 12 / 18 |
Specifications sourced from dmscncrouters.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Y stroke up to 100 ft and X up to 20 ft for molds, plugs and large composite structures
- Z stroke of 48 in or 72 in (1,219 or 1,829 mm)
- Optional sliding doors on both front and back for loading large materials from either end
- Tool changer options of 10, 12 or 18 tools in a rack or carousel
- Universal fixture table to shorten the changeover between part runs
- Scales available as an option on a rack-and-pinion machine
Limitations
- Rack and pinion on every linear axis; no ball-screw option is listed for this model
- Spindle power is stated differently on the product page and on the data sheet, so it cannot be read off the published figures
- With continuous C the rotary axes switch from absolute to incremental encoders
- A machine with up to 100 ft of Y and 72 in (1,829 mm) of Z is a building-scale installation
Best For
Frequently Asked Questions
01
The stroke table lists X, the bridge axis, from 5 ft to 20 ft, Y from 5 ft to 100 ft and Z at 48 in or 72 in (1,219 or 1,829 mm). Bridge strokes of 5, 10, 12, 15 and 20 ft are listed, with depth in multiples of 5 ft plus 12 ft and 22 ft.
02
DMS offers the option of sliding doors on both the front and the back of the machine for loading and unloading large materials. It also describes a universal fixture table intended to reduce downtime between part runs, and lists compatibility with robotics among the automation options.
03
B is listed as (+/-) 115° / 130°. C is (+/-) 363° with a DMS head, with continuous rotation as an option, and (+/-) 320° with a Hiteco head. When continuous C is fitted the rotary encoders are incremental; all other motor encoders are absolute.
04
05
Both list X from 5 ft to 20 ft, Y from 5 ft to 100 ft and tool counts of 10 / 12 / 18. The Mammoth5 lists Z at 48 in or 72 in and offers doors front and back. The Yellowstone5 lists 48 in of Z as standard with up to 72 in available, and DMS describes front doors that slide open.
