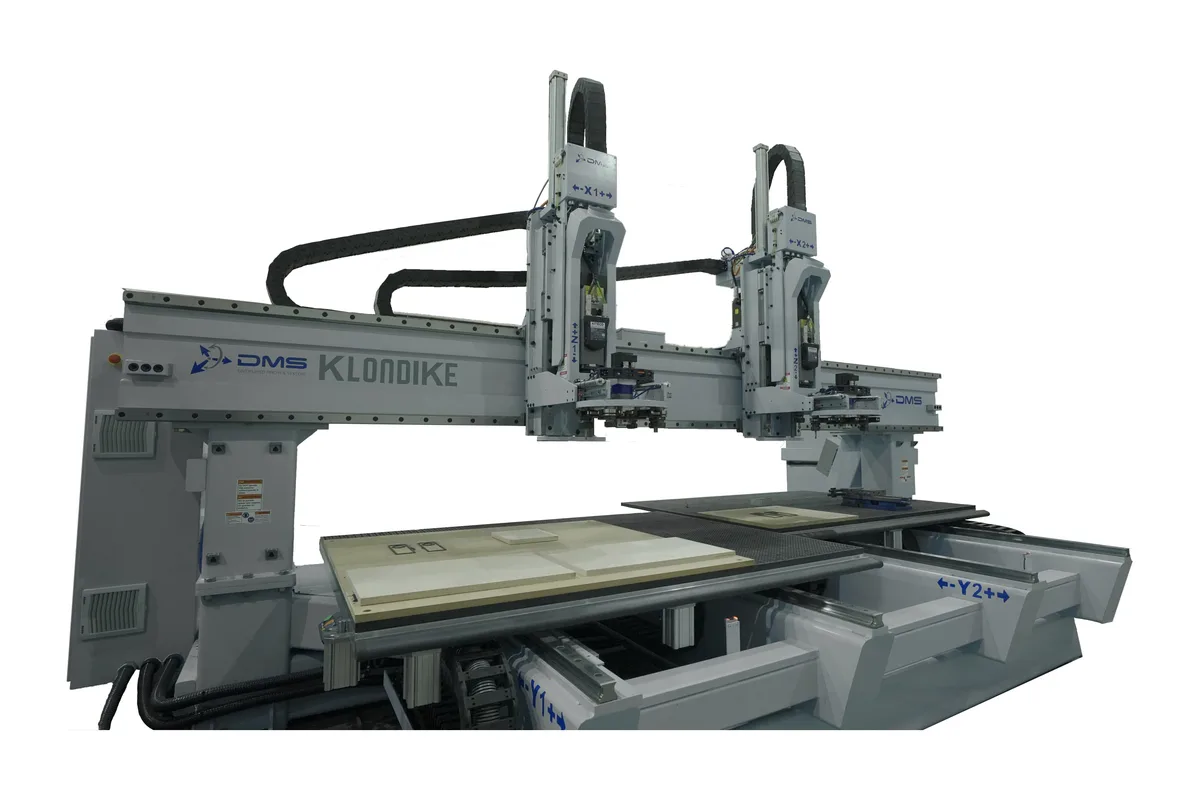

DMS Klondike3
Image: dmscncrouters.com, DMS
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Rapid Traverse
Spindle Power
Accuracy
How much does the DMS Klondike3 cost?
Price estimate
We do not have a price for the DMS Klondike3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The DMS Klondike3 is a twin moving table, multi-channel, multi-spindle CNC router: several independent cutting carriages over two tables in one frame. DMS offers 2 to 4 carriage configurations and says the machine can act as 2, 3 or 4 separate machines, or pendulum process with up to 4 spindles at once. The stroke table gives 240 in (6,096 mm) on X and 120 in (3,048 mm) on Y.
Two programs can run at the same time, one per channel, or the spindles can work one table while the other is unloaded and reloaded. That is where the output per unit of floor space comes from, and it is the reason to look at this model instead of two separate routers.
Each carriage has its own 8 station tool carousel, with a maximum tool length of 8 in (203 mm). The standard spindles on the data sheet are two Hiteco Powertech 400 units rated 13 kW (S1), liquid cooled, with an HSK 63F taper and a top speed of 24,000 rpm. The listed spindle range for the model is narrow, 10-13 kW S1, from the PT300 and PT400.
Rapids are 2,000 ipm (50.8 m/min) on X and Y and 1,000 ipm (25.4 m/min) on Z. X and Y are rack and pinion, Z is a ball screw with brake motors, and the servo drives are Fagor Quercus with FKM 64 motors on X and Y. The control is a Fagor 8065 Power HMI Elite with a configurable touch screen. Z clearance is 18 in (457 mm); the Z stroke itself is stated differently on the product page and on the data sheet, so confirm it with DMS.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 240 in (6,096 mm) |
| Y Axis Travel | 120 in (3,048 mm) |
| Z Clearance | 18 in (457 mm) |
| Spindle Motor Power | 13 kW S1 / 15 kW S6 maximum (17.4 / 20.1 hp) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power Range | 10-13 kW S1 (13.4-17.4 hp) |
| Spindle Units | Hiteco PT300, PT400 |
| Standard Spindles | (2) Hiteco Powertech 400, 13 kW (S1), liquid cooled, VFD drives |
| Spindle Taper | HSK 63F |
| Carriages | 2 to 4 carriage configurations available |
| Rapid Traverse Rate | X/Y 2,000 ipm (50.8 m/min); Z 1,000 ipm (25.4 m/min) |
| Motor Encoders | All absolute |
| CNC Control | Fagor 8065 Power HMI Elite |
| Servo Drives | Fagor Quercus servo drives; Fagor FKM 64 on X and Y axis |
| Tool Capacity | 8 station tool carousel per carriage |
| Max Tool Length | 8 in (203 mm) |
| Positioning Accuracy | 0.0025-0.005 in (0.064-0.127 mm) |
Specifications sourced from dmscncrouters.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2 to 4 carriages, usable as separate machines on two programs or in pendulum with up to 4 spindles
- Rapids of 2,000 ipm (50.8 m/min) on X and Y and 1,000 ipm (25.4 m/min) on Z
- An 8 station tool carousel on every carriage, so each spindle carries its own tools
- Two liquid-cooled Hiteco Powertech 400 spindles, 13 kW (S1) each, HSK 63F, are standard
- Fagor 8065 Power HMI Elite control with Fagor Quercus servo drives
Limitations
- Each carousel holds 8 tools, fewer than the 10 on the single-spindle Bryce3
- Maximum tool length is 8 in (203 mm)
- The spindle range is limited to 10-13 kW S1 from two Hiteco units, the PT300 and PT400
- The comparison table lists no C-axis and no feedback scales for this model
Best For
Frequently Asked Questions
01
The machine has two moving tables and between 2 and 4 cutting carriages, each controlled as its own channel. DMS says it can act as 2, 3 or 4 separate machines, run two different programs at the same time, or pendulum process with up to 4 spindles simultaneously while the idle table is loaded.
02
The data sheet lists two Hiteco Powertech 400 spindles as standard: 13 kW (S1), 24,000 rpm maximum speed, HSK 63F, liquid cooled, on VFD drives. The comparison table gives the spindle range as 10-13 kW S1 from the Hiteco PT300 and PT400, and the maximum as 13 kW S1 / 15 kW S6.
03
Rapid feedrates are 2,000 ipm (50.8 m/min) on X and Y and 1,000 ipm (25.4 m/min) on Z. X and Y use rack and pinion with Fagor FKM 64 motors, and Z uses a ball screw with brake motors.
04
Each carriage has an 8 station tool carousel, so the total depends on the number of carriages ordered, from 2 to 4. Tools can be up to 8 in (203 mm) long. Z clearance is 18 in (457 mm).
