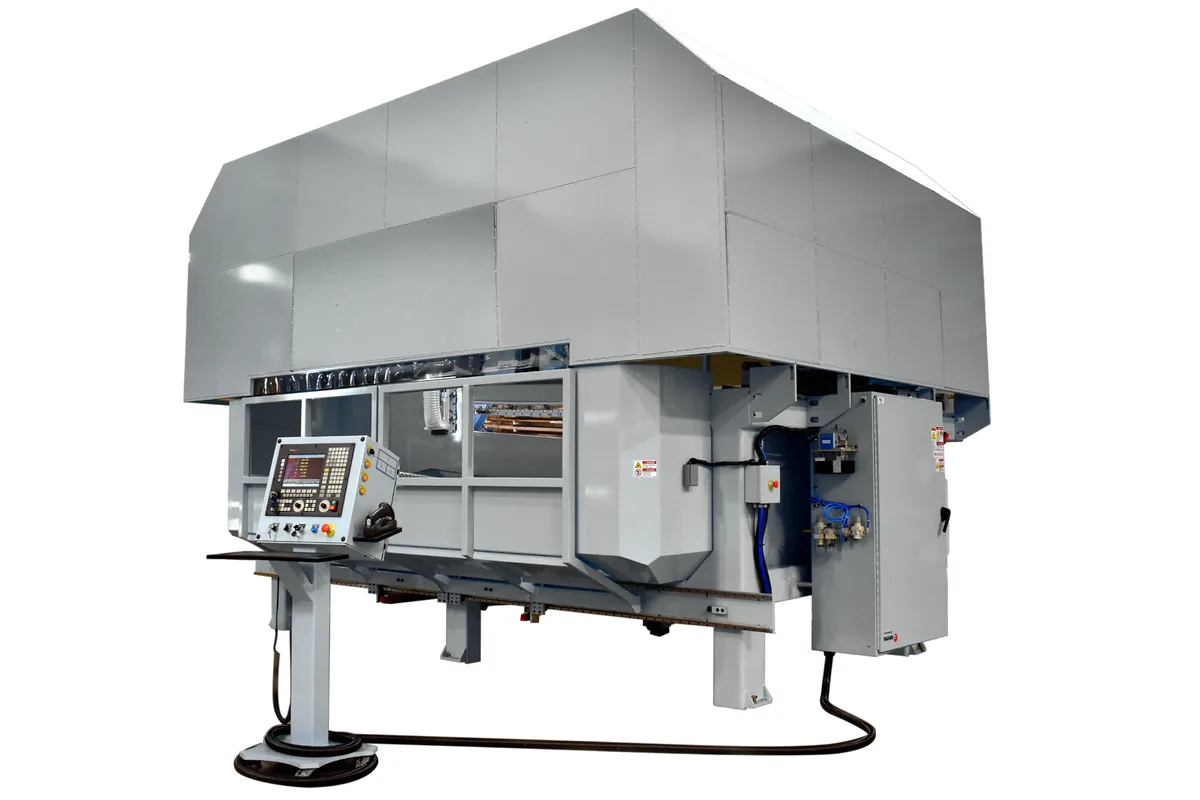

DMS Glacier3
Image: dmscncrouters.com, DMS
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
Accuracy
x axis travel
How much does the DMS Glacier3 cost?
Price estimate
We do not have a price for the DMS Glacier3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The DMS Glacier3 is the fully enclosed machine of the DMS 3-axis line, a 3-axis version of the enclosed Glacier platform. It pairs 30 in (762 mm) of Z stroke with ball-screw motion, a combination none of its open-frame 3-axis siblings lists. X, the bridge axis, is offered from 4 ft to 12 ft and Y from 3 ft to 6 ft.
The enclosure is the reason to choose it. Foam, composites and tooling materials throw dust that an open gantry leaves to the room, and a closed work area keeps it where an extraction system can collect it. The 30 in of Z then lets the same machine take deep patterns and moulds, not only sheet.
DMS lists the transmission as spinning ball nut and recirculating ball screw, with absolute motor encoders, linear scales available as an option and a Fagor 8065 control. Average speed over the three axes is given as 1,400 in/min (35,560 mm/min), and accuracy as 0.0025-0.005 in (0.064-0.127 mm).
Spindles start higher than on the open routers: the range is 8-18 kW S1, against 4.5-18 kW S1 on the Teton3, with a maximum of 18 kW S1 / 21 kW S6 at 24,000 rpm. The tool changer is a rack, or tools are changed manually, and the maximum is listed as 10 / 12. Table sizes are 4 ft x 3 ft, 5 ft x 5 ft, 10 ft x 5 ft, and 12 ft x 3 ft or 6 ft.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4 ft min / 12 ft max (1,219 / 3,658 mm) |
| Y Axis Travel | 3 ft min / 6 ft max (914 / 1,829 mm) |
| Z Axis Travel | 30 in (762 mm) |
| C Axis | C-axis optional |
| Spindle Motor Power | 18 kW S1 / 21 kW S6 maximum (24.1 / 28.2 hp) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power Range | 8-18 kW S1 (10.7-24.1 hp) |
| Spindle Units | Hiteco MT200, MT201, PT300, PT400, PT500 |
| Drive System | Spinning ball nut & recirculating ball screw |
| Feedback Encoders | Scales available as option |
| Motor Encoders | All absolute |
| CNC Control | Fagor 8065 |
| Table Size | 4 ft x 3 ft; 5 ft x 5 ft; 10 ft x 5 ft; 12 ft x (3 or 6 ft) |
| Average Speed | 1,400 in/min (35,560 mm/min), average of 3 axes |
| Positioning Accuracy | 0.0025-0.005 in (0.064-0.127 mm) |
| Tool Changer Type | Rack / manual |
| Tool Capacity | 10 / 12 |
Specifications sourced from dmscncrouters.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Fully enclosed work area, the only enclosed model in the DMS 3-axis line
- 30 in (762 mm) of Z stroke for patterns, moulds and thick blocks
- Spinning ball nut and recirculating ball screw transmission, with linear scales available as an option
- Spindles up to 18 kW S1 / 21 kW S6 at 24,000 rpm, including the Hiteco PT500
- Average speed of 1,400 in/min (35,560 mm/min) across the three axes
Limitations
- Y range ends at 6 ft, so the enclosed envelope is long and shallow: up to 12 ft on X but no more than 6 ft deep
- The smallest listed spindle is 8 kW S1; the Teton3 and Redwood3 start at 4.5 kW S1
- Tool changing is by rack or manual only; the data sheet lists no carousel for this model
- Linear scales are an option, not part of the base machine
Best For
Frequently Asked Questions
01
02
DMS gives X, the bridge axis, as 4 ft minimum and 12 ft maximum, Y as 3 ft minimum and 6 ft maximum, and Z as 30 in. The matching table sizes are 4 ft x 3 ft, 5 ft x 5 ft, 10 ft x 5 ft, and 12 ft x 3 ft or 6 ft.
03
The spindle range is 8-18 kW on the S1 rating, with a model maximum of 18 kW S1 / 21 kW S6 and a top speed of 24,000 rpm. The units listed are the Hiteco MT200, MT201, PT300, PT400 and PT500.
04
The data sheet gives the tool changer type as rack or manual and the maximum as 10 / 12. It does not explain which rack gives which count, so ask DMS which of the two capacities applies to the table size you are considering.
